$ 172.50
Discover the Phoenix Contact MINI MCR-2-RPSS-I-I repeater power supply, with 3-way isolation, HART transparency, and compact 6.2 mm design for precision.

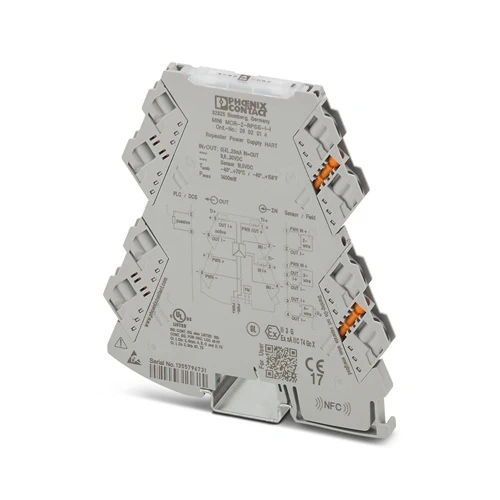

The Phoenix Contact MINI MCR-2-RPSS-I-I repeater power supply (2902014) is a compact interface module that provides reliable transmitter powering and robust signal isolation in industrial automation systems. With three-way isolation and compatibility for 0/4–20 mA signals, it delivers stable and accurate current transmission even in noisy environments. The design supports HART-transparent communication, allowing easy integration with smart field devices while ensuring data integrity. Its ultra-slim 6.2 mm housing saves valuable space in control cabinets, making it ideal for modern process applications that demand high performance and compact dimensions.
The MINI MCR-2-RPSS-I-I repeater power supply combines the functions of isolation, repeater, and transmitter supply into a single versatile module. It supports continuous operation across a wide temperature range and is equipped with transient protection for enhanced reliability in harsh industrial conditions. Integrated fault monitoring and NFC diagnostics provide clear operational insight, helping maintenance teams respond quickly to issues. Its HART transparency allows seamless communication with advanced instrumentation, enabling smarter process control. By reducing downtime, eliminating ground loop errors, and enhancing measurement accuracy, this Phoenix Contact solution helps improve efficiency and system reliability in demanding industrial environments.
Because it transforms complex signal transmission into a simple, reliable process. With three-way isolation, HART transparency, and ultra-slim design, this repeater power supply empowers engineers to save space, ensure accuracy, and seamlessly connect smart devices. It’s more than a power supply — it’s a precision bridge between your field instruments and control system.
The MINI MCR-2-RPSS-I-I solves the hidden issues that cripple measurement systems: ground loops, signal noise, and unreliable transmitter powering. By isolating, repeating, and stabilizing analog signals, it guarantees clean, accurate data flow even in harsh environments. The result is reduced downtime, smarter diagnostics, and a future-ready foundation for process automation.
| Feature | Details | Benefit |
|---|---|---|
| Isolation | 3-way isolation between input, output, and power supply | Eliminates ground loops, ensuring safe and reliable signal integrity. |
| Input Signal Range | 0–20 mA / 4–20 mA | Flexible compatibility with standard analog current signals. |
| Output Load Capacity | Up to 600 Ω | Maintains accurate signal transmission over long distances. |
| HART Transparency | Bidirectional support | Seamless integration with smart instrumentation for advanced diagnostics. |
| Response Time | <200 µs (10–90%) | Ensures fast and precise signal transmission for time-critical processes. |
| Nominal Supply Voltage | 24 V DC (range 9.6–30 V DC) | Reliable power supply with wide tolerance for industrial environments. |
| Power Consumption | ≤1.4 W at 20 mA, 600 Ω load | Energy-efficient operation reduces system costs. |
| Operating Temperature | -40 °C … +70 °C | Suitable for harsh conditions across multiple industries. |
| Housing Width | 6.2 mm | Saves valuable DIN-rail space in control cabinets. |
| Protection | Transient protection | Safeguards equipment from electrical surges and disturbances. |
| Certifications | CE, UL, ATEX, IECEx, DNV GL | Compliance with global safety and industry standards. |
Download Phoenix Contact MINI MCR-2-RPSS-I-I (2902014) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356651981 |
| Tariff Number | 85437090 |
| Weight | 110 g (net), 125.4 g (gross) |
| Country of Origin | Germany (DE) |
In pipeline networks, pressure sensors often transmit analog current signals over long distances where interference and voltage drops can distort accuracy. By using a repeater power supply with three-way isolation, the signals remain stable and free of ground loop errors. Its high output load capacity ensures long cable runs without data loss, while HART transparency allows operators to check transmitter health remotely. This improves overall system safety, prevents false alarms, and reduces costly maintenance caused by unreliable sensor readings.
In chemical processing environments, level transmitters installed in tanks must reliably send data despite harsh conditions and electrical noise. A repeater power supply with strong isolation separates hazardous zones from the control system, keeping operations safe and compliant. Its built-in transient protection shields delicate electronics from surges. Compact DIN-rail installation saves space in crowded panels. Remote HART capability further enables engineers to configure and monitor transmitters without physically accessing corrosive or high-risk areas, reducing downtime and improving efficiency.
Water treatment facilities rely on multiple sensors to track flow, turbidity, and pH values across large pumping systems. Motors and variable frequency drives often create electrical disturbances that affect analog signals. A repeater power supply ensures signal clarity by eliminating noise and ground loops. Its wide input voltage range supports integration into both modern and legacy systems. With HART transparency, operators can run diagnostics on sensors directly from the control room, minimizing field visits and maintaining continuous plant performance.
In pharmaceutical clean rooms, temperature monitoring must remain precise during critical processes like sterilization. Repeater power supplies with reinforced electrical isolation provide safe signal transfer from transmitters in controlled zones to external control units. Their fast response times allow tight regulation of heating and cooling cycles, ensuring consistent product quality. HART communication provides remote access to transmitter diagnostics, enabling teams to verify calibration without breaking sterile conditions. This combination of safety, speed, and transparency keeps production compliant and reliable.
| Category | Model Name | Part Number | Benefit |
|---|---|---|---|
| DIN Rail Bus Connector | ME 6,2 TBUS-2 1,5/5-ST-3,81 GY | 2695439 | Bridges supply voltage across modules for simplified installation. |
| DIN Rail Bus Connector | ME 6,2 TBUS-2 1,5/5-ST-3,81 GN | 2869728 | Universal connector with gold-plated contacts for reliable long-term performance. |
| Programming/Communication | GW HART USB MODEM | 1003824 | Enables communication between PC and HART-compatible devices. |
| Module Carrier | TC-D37SUB-AIO16-MP-PS-UNI | 2906640 | Connects up to 16 MINI Analog Pro signal conditioners with HART multiplexer support. |
| Module Carrier | TC-D37SUB-ADIO16-MP-P-UNI | 2906639 | Provides easy connection of 16 MINI Analog Pro modules to I/O cards. |
| System Adapter | MINI MCR-2-V8-FLK 16 | 2901993 | Simplifies cabling by connecting multiple modules to controllers. |
| Communication Module | MINI MCR-2-V8-MOD-RTU | 2905634 | Integrates modules into Modbus/RTU networks. |
| Communication Module | MINI MCR-2-V8-MOD-TCP | 2905635 | Integrates modules into Modbus/TCP networks. |
| Communication Module | MINI MCR-2-V8-PB-DP | 2905636 | Connects to PROFIBUS DP networks for easy expansion. |
| Communication Module | MINI MCR-2-V8-PN | 2905637 | Connects to PROFINET networks for high-speed industrial communication. |
| Connector Set | FASTCON PRO-SET | 2906227 | Screw-connection plug set for all MINI Analog Pro modules. |
| Connector Set | FASTCON PRO-SET-PT | 2906228 | Push-in connection plug set for faster wiring and secure installation. |
| Power Terminal Block | MINI MCR-2-PTB | 2902066 | Supplies power to the DIN rail connector with monitoring support. |
| Power Terminal Block | MINI MCR-2-PTB-PT | 2902067 | Push-in version for quick wiring and secure voltage delivery. |
| Monitoring Block | MINI MCR-2-FM-RC | 2904504 | Evaluates and reports group errors, ensuring reliable operation. |
| Monitoring Block | MINI MCR-2-FM-RC-PT | 2904508 | Push-in connection version for fast setup and fault reporting. |
| Tool | SZS 0,6X3,5 Screwdriver | 1205053 | Actuation tool designed for terminal blocks and secure connections. |
