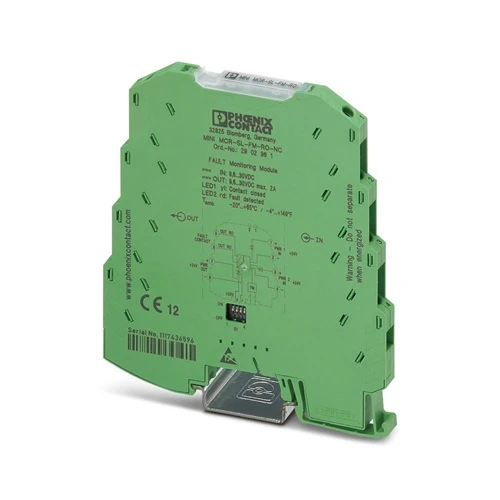

Compact Phoenix Contact MINI MCR-SL-FM-RC-NC module ensures reliable fault monitoring, voltage supervision, and space-saving DIN rail installation.
The Phoenix Contact MINI MCR-SL-FM-RC-NC monitoring module is a compact and reliable unit designed to supervise supply voltages and detect system faults. It serves as a central evaluation point for group errors in automation environments, providing clear fault signaling through relay contacts and LED indicators. With its slim 6.2 mm housing, the module saves valuable cabinet space while still supporting monitoring of multiple devices. Built for demanding industrial conditions, it ensures stable operation across a wide temperature range and offers high compatibility with Phoenix Contact’s MINI Analog product family.
The MINI MCR-SL-FM-RC-NC fault monitoring module helps prevent unexpected downtime by identifying voltage irregularities and equipment errors before they impact operations. Its ability to monitor a large group of transducers makes it especially useful in complex installations where continuous system availability is critical. The low energy consumption reduces overall operating costs, while simple screw terminals and DIN rail mounting allow quick installation. With strong EMC resistance and international certifications, the module is well-suited for sectors such as process control, energy management, and transportation systems where reliable fault detection is essential.
The Phoenix Contact MINI MCR-SL-FM-RC-NC is the ideal choice for engineers who demand compact, reliable fault detection in automation systems. Its slim design saves panel space while enabling monitoring of up to 80 connected devices. With clear LED indicators and robust relay outputs, it delivers instant fault alerts, ensuring operators can act quickly. This module combines space efficiency, simple integration, and reliable long-term performance, making it a trusted solution for critical monitoring tasks.
In complex automation setups, undetected power or transducer faults can lead to costly downtime and production delays. The MINI MCR-SL-FM-RC-NC solves this by continuously monitoring supply voltages and connected devices, instantly reporting abnormalities through a fail-safe contact. By centralizing error detection, it reduces troubleshooting time, prevents system failures, and enhances overall plant reliability. This proactive monitoring approach safeguards operations, giving industries peace of mind and higher productivity.
| Feature | Details | Benefit |
|---|---|---|
| Housing Width | 6.2 mm | Saves valuable DIN rail space in compact panels |
| Supply Voltage Range | 9.6 … 30 V DC | Wide voltage tolerance ensures reliable operation |
| Power Consumption | < 120 mW (at 24 V DC) | Energy-efficient, reducing overall system power demand |
| Max. Current Consumption | < 5 mA (at 24 V DC) | Low current draw for efficient system integration |
| Relay Output | Max. 30 V AC/DC, 50 mA | Safe and reliable signaling of fault conditions |
| LED Indicators | Red (error), Yellow (status) | Instant visual diagnostics for faster troubleshooting |
| Operating Temperature | -20 °C to +65 °C | Reliable performance under harsh environmental conditions |
| Insulation Voltage | 50 V AC/DC | Enhanced safety between input, output, and power supply |
| Certifications | CE, UKCA, UL, DNV GL | Suitable for international use in various industries |
| Mounting | DIN rail, any position | Flexible installation in existing systems |
| Protection Degree | IP20 | Suitable for protected cabinet installations |
| Compatible Devices | Up to 80 MINI Analog transducers | Monitors large groups of devices efficiently |
Download MINI MCR-SL-FM-RC-NC 2902961 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356702850 |
| Tariff Number | 85369010 |
| Weight per Piece | 81.7 g (excl. packaging) / 95.2 g (incl. packaging) |
| Country of Origin | Germany (DE) |
1.Water Treatment Pump and Sensor Networks
In water treatment facilities, a large number of pumps and sensors operate continuously to maintain proper flow and pressure levels. The MINI MCR-SL-FM-RC-NC can supervise the supply voltage of multiple sensors at once, ensuring they remain reliable during long operating hours. If a sensor fault or voltage drop occurs, the module immediately reports the condition through a secure relay contact and visible LED indication. This early warning helps technicians prevent pump failures that could cause overflow, downtime, or contamination risks. The slim housing makes it simple to integrate into compact control cabinets where space is limited.
2.Solar Energy Inverter Systems
Solar farms rely on distributed string inverters and measurement devices that must work consistently under changing environmental conditions. The MINI MCR-SL-FM-RC-NC provides continuous monitoring of power supply levels and identifies sensor issues across multiple inputs. By collecting group errors in a single point, it simplifies fault detection and allows maintenance teams to act quickly when performance drops. Centralized fault reporting reduces the time needed to trace wiring or equipment issues. The compact form and DIN rail compatibility support clean, organized panel layouts, which is critical when dealing with high numbers of parallel inverter strings.
3.Chemical Process Monitoring
Chemical plants operate with extensive arrays of analog transducers, such as those tracking pressure, flow, or temperature. Failures in these sensors can create unsafe conditions or process inefficiencies if not detected early. The MINI MCR-SL-FM-RC-NC ensures that power supply fluctuations or device errors are flagged immediately. Its fail-safe relay contact integrates easily into shutdown or alarm circuits, providing an additional layer of protection. Because the unit can monitor many transducers as a group, it reduces wiring complexity and panel crowding. This streamlined fault management is valuable in environments where strict reliability and fast response times are required.
4.Power Substation Control Panels
In electrical substations, reliable monitoring of protective relays and instrumentation is essential to maintain grid stability. The MINI MCR-SL-FM-RC-NC is used to supervise the supply voltages feeding multiple measurement transducers. When an instrument or supply line fails, the module quickly signals the event, giving operators the chance to intervene before it disrupts critical protection functions. Clear LED indicators and compact dimensions enable quick diagnostics and straightforward integration in densely packed cabinets. By grouping fault detection in one device, utilities reduce the number of wiring points and increase the efficiency of their maintenance routines.
| Category | Model Name | Part Number | Benefit |
|---|---|---|---|
| Power Terminal Block | MINI MCR-SL-PTB-FM | 2902958 | Supplies voltage to the DIN rail connector and enables monitoring when combined with the fault monitoring module. |
| DIN Rail Bus Connector | ME 6,2 TBUS-2 1,5/5-ST-3,81 GN | 2869728 | Provides quick and reliable power and signal bridging across multiple MINI Analog modules on a DIN rail. |
| DIN Rail Bus Connector | ME 6,2 TBUS-2 1,5/5-ST-3,81 GY | 2695439 | Ensures stable and flexible supply voltage distribution for modular setups. |
| Module Carrier | TC-D37SUB-AIO16-M-PS-UNI | 2902934 | Connects up to 16 MINI Analog signal conditioners to digital or analog I/O cards, including HART communication. |
| Module Carrier | TC-D37SUB-ADIO16-M-P-UNI | 2902933 | Universal termination carrier for connecting 16 MINI Analog modules to D-SUB interfaces with simplified wiring. |
| Protective Cover | MINI MCR DKL | 2308111 | Transparent fold-up cover for MINI MCR modules, providing extra labeling options and protection. |
| Marking Label | MINI MCR-DKL-LABEL | 2810272 | Extended labeling system for clearer identification of MINI MCR modules in dense control cabinets. |
| Power Supply | QUINT4-SYS-PS/1AC/24DC/2.5/SC | 2904614 | Robust primary-switched power supply, ideal for supplying MINI Analog devices via the TBUS connector. |
| Tool Accessory | SZS 0,6X3,5 Screwdriver | 1205053 | Special insulated tool designed for Phoenix Contact terminal blocks, suitable for secure and efficient wiring. |
