Phoenix Contact MINI MCR-SL-U-U Signal Conditioner – Compact 3-Way Isolation

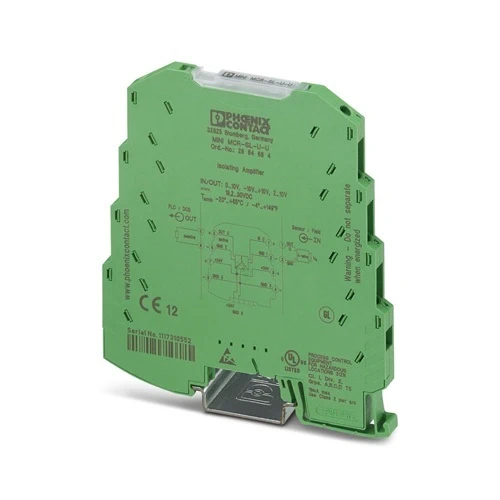

The Phoenix Contact MINI MCR-SL-U-U signal conditioner (2864684) is a slim 3-way isolating amplifier built for precise electrical separation of analog signals. With its compact 6.2 mm width, it enables efficient conversion, filtering, and amplification of input signals in the 0…10 V or ±10 V range. Designed for DIN rail integration, this module helps save valuable space in control panels while maintaining reliable signal quality. Its simple fixed signal configuration, low energy demand, and dependable insulation between input, output, and supply make it a practical choice for stable industrial operations.

The MINI MCR-SL-U-U isolating amplifier delivers stable and accurate signal transmission in industrial automation and process control systems. By separating and amplifying signals, it minimizes interference and improves measurement precision for connected devices such as PLCs or controllers. A fast response time of around 3.2 ms and low transmission error ensure dependable performance even under demanding conditions. Operating across a wide temperature range and engineered with durable materials, it performs consistently in environments from manufacturing floors to shipbuilding. Users benefit from simplified wiring with DIN rail bus connectors, reduced downtime, and an energy-efficient solution that enhances long-term system reliability.

Why Phoenix Contact MINI MCR-SL-U-U?

The MINI MCR-SL-U-U stands out as a compact yet powerful signal conditioner that combines 3-way isolation with precision filtering and amplification. Its slim 6.2 mm profile saves valuable panel space while ensuring stable and interference-free transmission. Built for reliability and efficiency, it offers a cost-effective way to protect sensitive equipment and guarantee signal integrity in demanding industrial environments.

What Problem Does It Solve?

Industrial systems often suffer from noise, voltage fluctuations, or inaccurate readings when analog signals are not properly isolated. The MINI MCR-SL-U-U solves these challenges by providing secure electrical separation between input, output, and power supply. This prevents interference, enhances measurement accuracy, and ensures dependable communication with PLCs and controllers—resulting in smoother processes, reduced downtime, and more efficient system performance.

Key Features & Specifications – Phoenix Contact MINI MCR-SL-U-U: 2864684

Download MINI MCR-SL-U-U 2864684 Datasheet

Commercial Data – Phoenix Contact MINI MCR-SL-U-U: 2864684

The Applications of Phoenix Contact MINI MCR-SL-U-U Signal Conditioner

1. Process Monitoring in Chemical Production

Chemical plants rely on precise monitoring of flow, temperature, and pressure, but electrical noise from pumps and motors often distorts readings. The MINI MCR-SL-U-U ensures these low-voltage signals remain accurate by isolating and amplifying them before they reach controllers. With fast response times, operators can detect rapid process fluctuations and maintain safety margins. Its compact design allows many channels to fit into small panels, reducing installation space while maintaining high measurement reliability. This helps chemical engineers sustain consistent quality and reduce downtime caused by incorrect sensor values.

2. Building Automation and Energy Control

In large buildings, analog signals from HVAC sensors must travel across long distances where interference from lighting, lifts, or electrical equipment can cause instability. The MINI MCR-SL-U-U maintains signal integrity by separating power, input, and output circuits, preventing noise from reaching automation systems. Its energy-efficient design is ideal for centralized control cabinets where hundreds of devices may operate simultaneously. Easy integration with common 0–10 V signals makes it well suited for temperature, air quality, and energy monitoring, supporting efficient facility management and contributing to long-term energy savings.

3. Shipboard Instrumentation and Control

Marine environments present special challenges with vibrations, salt air, and strong electromagnetic interference from heavy machinery. The MINI MCR-SL-U-U is well suited for these conditions, providing robust isolation that protects sensitive measurement equipment from sudden voltage surges or grounding problems. Its durable design and approvals for marine applications give ship operators confidence in reliable signal transmission for systems like tank level monitoring, bilge control, or engine exhaust analysis. By ensuring accurate and stable readings, the module supports safety-critical functions while minimizing the risk of costly failures in harsh sea conditions.

4. Renewable Energy Monitoring Systems

Wind farms and solar installations generate numerous analog signals for voltage output, inverter health, and environmental tracking. These signals often run over long cables where electrical interference and surges are common. The MINI MCR-SL-U-U safeguards data quality by isolating and filtering signals, ensuring that monitoring systems receive only stable and accurate values. Its wide operating temperature range makes it suitable for remote outdoor enclosures, while its slim housing enables space-efficient deployment in high-channel density applications. This ensures operators can trust the collected data, improving energy efficiency, predictive maintenance, and long-term system reliability.
