$ 233.68
Compact 3-way isolating amplifier for precise signal conversion. Phoenix Contact MINI MCR-SL-U-UI-NC ensures accuracy, safety, and space-saving design.

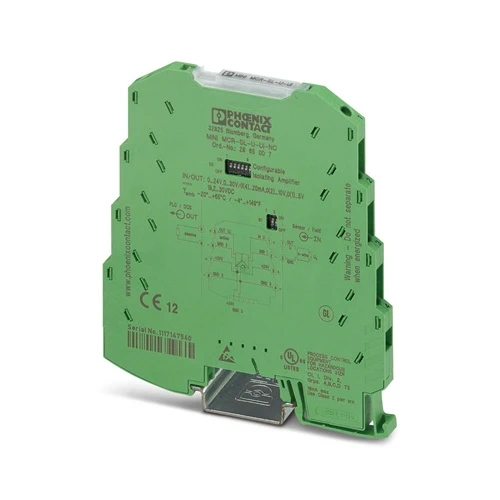

The Phoenix Contact MINI MCR-SL-U-UI-NC signal conditioner, model 2865007, is a slim 6.2 mm isolating amplifier designed for efficient electrical isolation and reliable signal conversion. It processes input voltages up to 30 V and provides standardized analog outputs such as 0–20 mA, 4–20 mA, or 0–10 V. Easy-to-access DIP switches allow quick configuration of multiple ranges, making it highly adaptable in control cabinets. With its small footprint and strong protective features, this module effectively solves the challenge of accurate signal transmission while safeguarding sensitive automation equipment in modern industrial environments.
Engineered for flexibility and long-term stability, the MINI MCR-SL-U-UI-NC combines low energy use, rapid response, and versatile signal mapping. Its 3-way isolation separates input, output, and supply circuits, ensuring consistent accuracy while reducing the risk of interference or equipment damage. Supporting up to a dozen signal combinations, it can be quickly tailored to different system requirements in automation, energy management, or building control. The narrow housing reduces cabinet space usage, while integrated transient protection extends service life. By delivering clean, stable signals under demanding conditions, this Phoenix Contact solution boosts reliability, minimizes downtime, and streamlines integration into complex control systems.
Because it combines compact design with powerful functionality, the MINI MCR-SL-U-UI-NC offers unmatched flexibility for signal isolation and conversion. It saves valuable cabinet space while providing up to 12 configurable signal combinations, ensuring engineers can adapt it to virtually any automation scenario. Its efficiency, precision, and robust protection make it a trusted choice for demanding industries.
The MINI MCR-SL-U-UI-NC eliminates signal interference and mismatched voltage or current ranges that often disrupt automation systems. By providing complete 3-way isolation, it shields sensitive devices from electrical noise and prevents costly downtime. It transforms raw, unstable signals into clean, standardized outputs, enabling seamless integration across control, monitoring, and safety systems.
| Feature | Details | Benefit |
|---|---|---|
| Housing Width | 6.2 mm | Saves valuable space in control cabinets |
| Input Voltage Range | 0–24 V / 0–30 V | Flexible use across multiple applications |
| Output Signals | 0–20 mA, 4–20 mA, 0–10 V, 2–10 V, 0–5 V, 1–5 V | Provides industry-standard signal compatibility |
| Isolation | 3-way isolation (input/output/power) | Protects sensitive equipment from interference |
| Configuration | DIP switch configurable | Quick setup without special tools |
| Supply Voltage Range | 19.2–30 V DC | Reliable operation within industrial supply limits |
| Power Consumption | < 450 mW | Energy-efficient performance for long-term use |
| Step Response | ~3.5 ms | Fast signal processing for dynamic systems |
| Protection | Integrated transient protection | Prevents damage from electrical surges |
| Approvals | CE, UKCA, UL, DNV | Certified safety and global compliance |
Download MINI MCR-SL-U-UI-NC (2865007) Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356046565 |
| Tariff Number | 85437090 |
| Weight | 65.8 g (excluding packing) |
| Country of Origin | Germany |
Industrial motor systems demand precise current tracking to prevent overloads and improve energy efficiency. By placing a shunt or transducer in the motor circuit, the MINI MCR-SL-U-UI-NC isolates and converts the signal into a stable standard output. Its rapid response ensures that even sudden load changes are captured, while full galvanic separation protects the controller from noise or high voltage spikes. This leads to safer operation and longer equipment lifespan without compromising system responsiveness.
Flow sensors in chemical plants, oil facilities, or wastewater treatment often operate in electrically noisy or hazardous areas. The MINI MCR-SL-U-UI-NC provides 3-way isolation, shielding the control system from potential faults and interference. By converting unstable raw signals into clean current or voltage outputs, it enables reliable monitoring of fluid flow without risking ground loops or incorrect readings. Its robust design helps meet safety demands while maintaining high measurement accuracy in challenging environments.
Industrial furnaces and thermal systems require consistent temperature monitoring for quality control and safety. Sensors such as thermocouples or RTDs are prone to interference and long cable losses. The MINI MCR-SL-U-UI-NC filters and amplifies these signals, delivering accurate standardized outputs for controllers. Its low temperature drift ensures reliable readings even when ambient conditions fluctuate. Engineers can maintain precise temperature profiles, resulting in improved product consistency and optimized energy usage in demanding heating applications.
Automated machines often rely on analog sensors positioned far from control units, making them susceptible to noise and voltage drops. The MINI MCR-SL-U-UI-NC resolves this challenge by isolating, conditioning, and transmitting sensor data as robust standard signals. With configurable input and output options, it adapts to a variety of sensors such as load cells, position encoders, or pressure transmitters. Its compact design conserves panel space while ensuring the control system receives clean, real-time data, boosting productivity and operational precision.
| Category | Part Number | Model Name | Benefits |
|---|---|---|---|
| DIN Rail Bus Connector | 2695439 | ME 6,2 TBUS-2 | Enables quick power distribution without extra wiring, reducing installation time. |
| DIN Rail Bus Connector (Universal) | 2869728 | ME 6,2 TBUS-2 | Provides durable, low-resistance connections ensuring long-term reliability. |
| Module Carrier with HART Support | 2902934 | TC-D37SUB-AIO16-M-PS-UNI | Simplifies integration of multiple signal conditioners, supporting advanced diagnostics. |
| Module Carrier (Standard) | 2902933 | TC-D37SUB-ADIO16-M-P-UNI | Provides efficient wiring of multiple modules, reducing panel space and errors. |
| Transparent Protective Cover | 2308111 | MINI MCR-DKL | Protects modules from dust and mechanical damage while improving identification. |
| Marking Label | 2810272 | MINI MCR-DKL-LABEL | Ensures clear labeling and easier maintenance in large installations. |
| Power Terminal Block | 2864134 | MINI MCR-SL-PTB | Allows centralized power distribution, minimizing cabling complexity. |
| QUINT4 Power Supply | 2904614 | QUINT4-SYS-PS/1AC/24DC/2.5/SC | Provides stable, protected power with long service life in demanding environments. |
| Actuation Tool / Screwdriver | 1205053 | SZS 0,6X3,5 | Improves installation efficiency and ensures safe handling of electrical connections. |
