High-speed solid-state relay 24V DC, 100kHz switching, LED indicator, and compact 6.2mm design for precise, reliable industrial automation control.

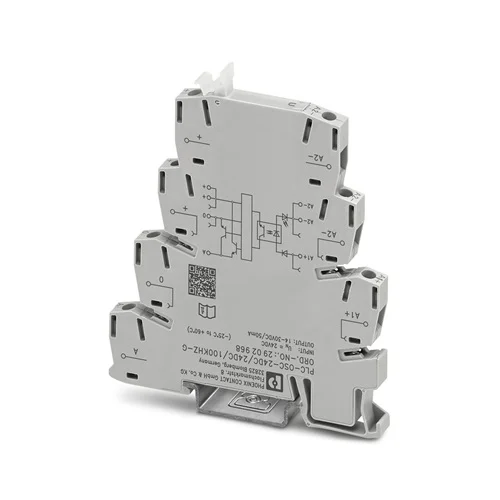

The Phoenix Contact PLC-OSC-24DC/24DC/100KHZ-G Solid-State Relay Module (2902968) is a high-performance signal interface designed for rapid DC control applications. With a transmission frequency of up to 100 kHz, it ensures fast, reliable switching for automation systems requiring precision and durability. Operating on 24 V DC input and offering a 14–30 V DC output range, it provides secure isolation between input and output circuits. Its slim 6.2 mm housing optimizes cabinet space, while the built-in LED indicator and protective circuits simplify monitoring and enhance long-term reliability in industrial control environments.
The PLC-OSC-24DC/24DC/100KHZ-G is built to deliver consistent signal transmission where speed and reliability are essential. Its electronic push-pull output supports both sourcing and sinking loads, enabling compatibility with various control devices. The integrated surge and reverse polarity protection safeguards sensitive electronics from transient voltage spikes, ensuring stable operation. Designed for DIN rail mounting, it offers easy installation and maintenance-free performance. Ideal for use in automation panels, machine control, and signal isolation tasks, this solid-state relay enhances system efficiency, reduces mechanical wear, and delivers long-lasting operational stability in demanding industrial environments.
Because it combines speed, precision, and reliability in one ultra-compact relay module. The Phoenix Contact PLC-OSC-24DC/24DC/100KHZ-G is engineered for high-frequency DC signal switching, offering up to 100 kHz performance with full electrical isolation. It’s the go-to choice for engineers seeking durable, maintenance-free signal control in compact automation systems.
It eliminates the reliability issues of mechanical relays in fast-switching environments. By using solid-state technology, the PLC-OSC-24DC/24DC/100KHZ-G ensures noise-free, high-speed signal transmission without contact wear or mechanical failure—solving common challenges in precision control, data acquisition, and long-life automation applications.
| Feature | Details | Benefit |
|---|---|---|
| Product Type | Solid-State Relay Module | Enables reliable, contact-free switching for DC signals. |
| Input Voltage | 24 V DC (range 19.2–28.8 V DC) | Stable operation under typical control system voltage ranges. |
| Output Voltage | 14–30 V DC | Compatible with most DC control circuits. |
| Output Current | 50 mA continuous | Suitable for low-power signal switching applications. |
| Transmission Frequency | 100 kHz | Supports fast digital signal processing and high-speed control. |
| Switching Type | Push-pull electronic output | Ensures accurate and balanced output for various loads. |
| Response Time | 1 µs (on), 2 µs (off) | Delivers ultra-fast signal response with minimal delay. |
| Protective Circuits | Reverse polarity and surge protection | Protects against wiring errors and voltage spikes. |
| Indicator | Yellow LED for operation display | Quick visual status feedback during operation. |
| Mounting Type | DIN rail mounting (35 mm) | Easy installation and integration into control cabinets. |
| Housing Width | 6.2 mm | Space-saving design ideal for compact automation systems. |
| Operating Temperature | -20°C to +60°C | Reliable performance under diverse industrial conditions. |
| Degree of Protection | IP20 | Suitable for protected control cabinet environments. |
| Isolation Voltage | 2.5 kVrms between input and output | High electrical isolation enhances system safety. |
| Material Color | Gray (RAL 7042) | Matches standard industrial terminal block designs. |
Download PLC-OSC-24DC/24DC/100KHZ-G 2902968 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356702027 |
| Weight (Including Packaging) | 39.5 g |
| Weight (Excluding Packaging) | 36.53 g |
| Country of Origin | Germany (DE) |
In precision test systems, accurate and rapid signal switching is vital for controlling voltage pulses, current injection, and timing signals. The PLC-OSC-24DC/24DC/100KHZ-G handles frequencies up to 100 kHz, making it ideal for high-speed functional testing of electronic devices. Its solid-state design eliminates mechanical contact wear, ensuring long-term stability and consistent switching accuracy. The integrated isolation safeguards sensitive measurement instruments from noise interference, enabling clean, repeatable test results in demanding automated test environments.
In data acquisition setups with multiple sensors, maintaining signal integrity between channels is essential. This relay module provides electrical isolation that prevents cross-talk and ground-loop issues in multi-sensor installations. Its push-pull electronic output ensures clean signal transfer, while surge and polarity protection enhance reliability in noisy industrial environments. Compact and easy to mount, it enables efficient wiring layouts in space-constrained control cabinets, ensuring steady data flow and improved system accuracy.
Machine vision equipment often relies on precise timing between lighting and camera triggers. This solid-state relay’s 1 µs response time supports highly accurate on/off control for LED strobes, allowing crystal-clear image capture at high frame rates. Its vibration-free operation reduces electrical noise in vision setups, improving image quality and synchronization accuracy. The module’s slim housing allows placement near the lighting control area, minimizing delay and enhancing system performance in automated inspection processes.
Small DC motors and linear actuators often require fine-tuned pulse-width modulation for smooth and responsive motion. The PLC-OSC-24DC/24DC/100KHZ-G’s high switching speed allows precise motor control and rapid signal modulation without overheating or contact degradation. The protective circuits defend against transient voltage spikes and wiring mistakes, ensuring long-lasting operation. This makes it an excellent choice for robotic grippers, compact conveyors, or precision positioning systems that demand efficient, maintenance-free control components.
| Category | Model | Part Number | Compatibility / Benefit |
|---|---|---|---|
| Continuous Plug-in Bridge (Red) | FBST 500-PLC RD | 2966786 | Enables power distribution across multiple relay modules in the same DIN rail row. |
| Continuous Plug-in Bridge (Blue) | FBST 500-PLC BU | 2966692 | Color-coded for easy circuit identification and potential grouping. |
| Continuous Plug-in Bridge (Gray) | FBST 500-PLC GY | 2966838 | Ideal for neutral or shared signal connections in compact control setups. |
| Single Plug-in Bridge (Red) | FBST 6-PLC RD | 2966236 | Used for short-circuit bridging or linking adjacent terminals. |
| Single Plug-in Bridge (Blue) | FBST 6-PLC BU | 2966812 | Separates voltage groups and simplifies circuit adjustments. |
| Single Plug-in Bridge (Gray) | FBST 6-PLC GY | 2966825 | Provides modular flexibility in multi-relay control systems. |
| DIN Rail (Perforated) | NS 35/7.5 PERF 2000MM | 0801733 | Ensures easy mounting and standard alignment of relay modules. |
| DIN Rail (Unperforated) | NS 35/7.5 UNPERF 2000MM | 0801681 | Offers stronger mechanical stability for heavy or vibrating machinery. |
| DIN Rail End Cap | NS 35/7.5 CAP | 1206560 | Provides secure edge termination and electrical protection. |
| Separating Plate | PLC-ATP BK | 2966841 | Electrically isolates neighboring modules for safe, organized layouts. |
| Power Terminal Block | PLC-ESK GY | 2966508 | Distributes multiple voltage levels to connected PLC relay modules. |
| Screwdriver Tool | SZF 1-0,6X3,5 | 1204517 | Simplifies secure connection and maintenance of PLC wiring. |
