Discover the Phoenix Contact PSR-SPP-24DC/FSP/2X1/1X2 coupling relay, SIL 3 certified for safe signal isolation, compact design, and reliable automation safety.

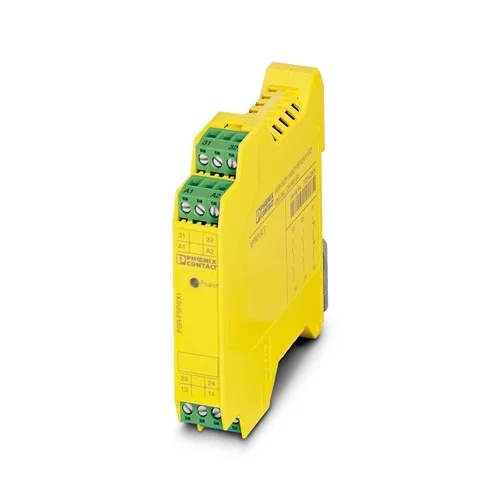

The Phoenix Contact PSR-SPP-24DC/FSP/2X1/1X2 coupling relay is a slimline safety solution designed for reliable switching in critical automation systems. With its narrow 17.5 mm housing, it provides dependable electrical isolation while safely transferring digital output signals from controllers to field devices. This model supports SIL 3 safety applications, handling both high and low demand requirements. Built with force-guided contacts and an integrated test pulse filter, it ensures that outputs remain secure, even in environments with frequent test pulses. The relay is a trusted choice for industries that demand compact design, robust safety integrity, and long service life.
The PSR-SPP-24DC/FSP/2X1/1X2 delivers more than just standard relay switching—it combines advanced safety features with practical usability. Its test pulse filtering extends component lifetime and reduces unnecessary wear, cutting down maintenance efforts. Proof testing is simplified, ensuring operators can validate safety compliance without disrupting workflows. The dual enabling paths alongside a dedicated signal contact provide a high degree of operational confidence, making it ideal for controlling actuators, valves, and other critical I/O devices. With a stable 24 V DC supply range and compact size, the relay helps facilities maximize space in control cabinets while safeguarding productivity and protecting personnel.
Why Phoenix Contact PSR-SPP-24DC/FSP/2X1/1X2?
The Phoenix Contact PSR-SPP-24DC/FSP/2X1/1X2 is the go-to choice for safety-critical automation because it combines a compact 17.5 mm design with SIL 3 certification. It not only saves space in crowded control cabinets but also ensures secure signal transmission between failsafe controllers and I/O devices. With integrated test pulse filtering, force-guided contacts, and dual enabling paths, it delivers unmatched reliability and peace of mind for engineers working in demanding industrial environments.
What problem does it solve?
This coupling relay addresses the challenge of safely adapting and isolating digital signals in safety applications. Traditional relays may fail under frequent test pulses or struggle with proof testing, but the PSR-SPP-24DC/FSP/2X1/1X2 overcomes these limitations. It guarantees safe shutdown, extends service life, and simplifies compliance with international safety standards. By bridging the gap between failsafe PLC outputs and actuators or valves, it eliminates risks of false switching and system downtime, providing both functional safety and operational efficiency.
| Feature | Details | Benefit |
|---|---|---|
| Housing Width | 17.5 mm | Space-saving in crowded control cabinets |
| Safety Certification | SIL 3 (IEC 61508, EN 62061), PL e (EN ISO 13849) | Meets the highest safety integrity requirements |
| Enabling Paths | 2 enabling current paths + 1 signal contact | Reliable redundancy for critical switching operations |
| Control Voltage | 24 V DC (-15% / +10%) | Compatible with standard industrial PLC outputs |
| Contacts | Force-guided, AgCuNi + gold-plated | Provides dependable switching and longer service life |
| Test Pulse Filter | Integrated | Prevents false triggering, supports modern failsafe PLCs |
| Switching Capacity | Max 5 A continuous current | Handles demanding loads without overheating |
| Housing Color | Yellow (RAL 1018) | Standard safety color for quick identification |
| Mounting | DIN rail, any position | Flexible installation across applications |
| Operating Temperature | -20 °C to +55 °C | Reliable performance in varied industrial environments |
Download Phoenix Contact PSR-SPP-24DC/FSP/2X1/1X2 2986957 Datasheet
| Category | Details | Benefit |
|---|---|---|
| GTIN Number | 4046356520928 | Enables global product identification and tracking in supply chains |
| Tariff Number | 85364900 | Simplifies international shipping and customs clearance |
| Weight | 128.26 g (net) / 160.89 g (gross) | Lightweight design lowers transport cost and eases panel installation |
| Country of Origin | Germany (DE) | Assurance of European quality and compliance with strict standards |
In chemical production, safety valves must respond instantly to prevent dangerous leaks or overpressure conditions. The PSR-SPP-24DC/FSP/2X1/1X2 ensures secure operation by coupling failsafe controller outputs to valve actuators with dual enabling paths. Its test pulse filter prevents spurious activations during diagnostic checks, maintaining stability in demanding environments. The compact housing allows installation in already crowded cabinets, while the SIL 3 certification provides the level of safety required in high-risk industries. By using this coupling relay, operators achieve reliable shutdown of safety valves, reducing the chance of accidents and ensuring compliance with strict international process safety standards.
In automated manufacturing, conveyors are vital but must stop immediately during emergencies. The PSR-SPP-24DC/FSP/2X1/1X2 enables dependable connection between emergency-stop buttons, safety controllers, and motor drives. With force-guided contacts, it prevents undetected faults that could compromise safety. The integrated signal contact allows proof testing without halting production entirely, giving maintenance teams the ability to confirm system integrity quickly. Its robust isolation shields controllers from electrical noise generated by motors, avoiding false trips. Compact and reliable, this coupling relay ensures that when an emergency-stop command is triggered, conveyor lines shut down consistently, protecting personnel and preventing costly equipment damage.
In elevator systems, doors must remain securely closed before the cabin moves. The PSR-SPP-24DC/FSP/2X1/1X2 adds a critical layer of reliability by interfacing the safety logic with the door lock actuator. Its fast switching response ensures faults are detected and acted upon before unsafe movement can occur. The redundant enabling paths increase fault tolerance, while the compact 17.5 mm width allows easy integration into control cabinets with limited space. Designed for SIL 3 applications, the relay meets the stringent requirements of building safety regulations. By using this coupling relay, elevator systems maintain operational safety while ensuring compliance with industry standards.
In railway systems, safety at crossings and signal points is critical to prevent accidents. The PSR-SPP-24DC/FSP/2X1/1X2 is ideal for coupling railway interlock logic with actuators controlling barriers and warning lights. Its reinforced insulation and dual current paths protect signaling circuits from external faults while ensuring barriers respond reliably. The relay’s switching capacity supports inductive loads from motors commonly used in crossing mechanisms. Meanwhile, the test pulse filter allows continuous system diagnostics without false triggering. This combination of features ensures that railway operators can achieve consistent, safe performance while meeting rigorous safety requirements, maintaining both passenger safety and network reliability.
| Category | Model / Name | Part Number | Benefit |
|---|---|---|---|
| Accessory | CRIMPFOX 6 Crimping Pliers | 1212034 | Guarantees secure wiring with push-in terminals |
| Accessory | Pluggable Push-in Terminal Blocks | – | Enables quick, tool-free installation and easy replacement |
| Related Product | PSR-SPP-24DC/FSP/1X1/1X2 | – | Alternative setup for smaller safety requirements |
| Related Product | PSRclassic Series Safety Relays | – | Flexible selection for different safety functions |
| Accessory | DIN Rail Mounting Accessories | – | Provides secure and stable relay installation |
