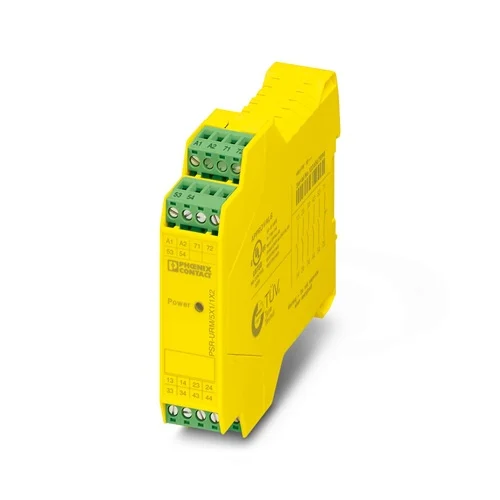

Compact Phoenix Contact PSR-SPP-24UC/URM/5X1/1X2 safety relay with force-guided contacts for reliable signal switching and certified industrial safety.
The Phoenix Contact PSR-SPP-24UC/URM/5X1/1X2 coupling relay is a compact safety component designed to provide dependable signal transmission and monitoring in automation systems. Featuring five normally open contacts and one normally closed contact, it supports both single-channel and dual-channel control. Built with force-guided technology, it ensures accurate feedback and fault detection. Certified to meet Category 1 / Performance Level c (EN ISO 13849-1) and SIL 1 (IEC 61508), it guarantees compliance with modern safety standards. At just 22.5 mm wide, it saves valuable space in control cabinets while offering robust protection for industrial automation applications.
Engineered for long-term reliability, the PSR-SPP-24UC/URM/5X1/1X2 provides a service life of up to 10 million mechanical operations, minimizing downtime and maintenance. Its pluggable push-in connection system shortens installation time and simplifies wiring, making it ideal for fast-paced production environments. With reinforced insulation and high surge resistance, the relay ensures stable operation even under harsh electrical conditions. A clear LED indicator supports quick status monitoring, helping operators respond efficiently during system checks. Compact, durable, and easy to integrate, this coupling relay delivers both safety and cost-effectiveness, making it suitable for machinery, process automation, and other safety-critical applications.
Why choose Phoenix Contact PSR-SPP-24UC/URM/5X1/1X2?
Because it combines compact design, force-guided contacts, and certified safety standards, the PSR-SPP-24UC/URM/5X1/1X2 offers unmatched reliability for automation engineers. It’s built to save space, simplify wiring, and deliver consistent safety performance in control panels where dependable monitoring and switching are critical.
What problem does it solve?
This coupling relay eliminates uncertainty in safety circuits by ensuring accurate feedback and fault detection. It solves the challenge of securely switching signals between systems while protecting against wiring errors, power surges, and hidden faults. By doing so, it reduces downtime, prevents unsafe machine states, and ensures compliance with demanding industrial safety regulations.
| Feature | Details | Benefit |
|---|---|---|
| Relay Type | Electromechanical with force-guided contacts | Ensures safe signal feedback and compliance with EN 50205 |
| Contacts | 5 N/O, 1 N/C | Provides versatile switching paths for safe circuit integration |
| Control | 1-channel or 2-channel | Flexible use in different safety configurations |
| Supply Voltage | 24 V AC/DC (20.4…26.4 V range) | Compatible with standard industrial power supplies |
| Power Consumption | Typ. 1.2 W | Energy-efficient operation reduces heat and energy costs |
| Mechanical Service Life | 10 million cycles | Ensures long-lasting performance and reduced downtime |
| Rated Insulation Voltage | 250 V | Provides robust insulation for safe operation |
| Surge Withstand Voltage | Up to 6 kV | Protects against transient overvoltage in industrial settings |
| Mounting | DIN rail (vertical or horizontal) | Flexible installation saves panel space |
| Housing Width | 22.5 mm | Slim design maximizes cabinet space for more components |
| Operating Temperature | -20 °C to +55 °C | Reliable performance in harsh industrial environments |
| Protection Rating | IP20 (device), install min. IP54 | Safe for use in protected control cabinets |
| LED Display | Green LED | Provides quick visual status for easy maintenance |
| Approvals | CE, cULus, Functional Safety certified | Ensures global compliance with safety regulations |
Download PSR-SPP-24UC/URM/5X1/1X2 2981965 Datasheet
| Commercial Data | Details |
|---|---|
| GTIN Number | 4046356343572 |
| Customs Tariff Number | 85364900 |
| Weight (without packaging) | 140 g |
| Country of Origin | Germany (DE) |
In packaging plants, moving conveyors and robotic arms require operator protection. Safety guards equipped with sensors are monitored through the relay’s N/C feedback path, while N/O contacts provide enabling signals for the system. If a guard door is opened, the force-guided design ensures the fault is detected and the machine stops immediately. This dual function simplifies wiring and reduces the number of components needed inside control cabinets, while ensuring safety standards are met consistently.
CNC machines need reliable emergency stop circuits to protect both operators and equipment. The coupling relay’s multiple N/O paths allow redundant circuits to shut down drives, while the N/C path confirms that the emergency stop has been activated. Even if a contact welds, the forced guidance prevents hidden faults from going unnoticed. With this arrangement, machine builders can maintain compliance with stringent safety certifications while minimizing the risk of unexpected hazards.
Robotic welding and assembly cells often use light curtains as protective barriers. The coupling relay provides enabling current paths when the barrier is clear, while the monitoring contact ensures system controllers receive reliable fault feedback. Because the relay can handle multiple enabling circuits, it supports several robot axes at once. Its high insulation strength and resistance to electrical surges also make it dependable in noisy environments such as welding areas, where electromagnetic interference is common.
In chemical or water treatment systems, valves must be securely closed in case of failure. The relay drives the valve actuator through its N/O contacts, while the N/C contact monitors whether the valve reached the closed position. If the actuator malfunctions, the feedback contact reveals the problem, triggering a safe shutdown or alarm. With long mechanical life and a robust 24 V AC/DC supply range, the relay performs reliably even in demanding, high-cycle industrial environments.
| Category | Model / Accessory | Part Number | How it Matches / Benefit |
|---|---|---|---|
| Accessory – Crimping Tool | CRIMPFOX 6 Crimping Pliers | 1212034 | Required for preparing ferrules on flexible wires, ensuring reliable push-in connections to the relay. |
| Terminal Blocks | PT Series Push-in Terminal Blocks | Various | Matches the relay’s push-in connection system, enabling fast and tool-free wiring in control cabinets. |
| Power Supply Units | QUINT POWER 24 V DC Series | Various | Provides stable 24 V DC supply voltage needed for the relay’s operation in demanding environments. |
| Safety Relays (Alternative) | PSRclassic Series (e.g., PSR-SCP, PSR-ESP) | Various | Alternative models within the same family, offering different contact configurations or safety functions. |
| DIN Rail Mounting Accessories | NS 35/7.5 DIN Rail | 0800886 | Standard mounting rail compatible with the relay’s slim 22.5 mm housing. |
| End Brackets | CLIPFIX 35 End Bracket | 3022276 | Secures the relay module on the DIN rail, preventing movement and ensuring safe installation. |
