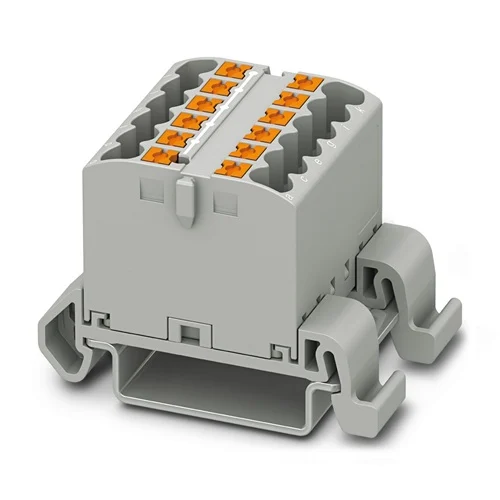

Phoenix Contact PTFIX 12X2,5-NS35A GY Distribution Block

Technical Overview

12-position, gray distribution block with Push-in connection for 690V/24A. Mounts on DIN rail. Supports 0.14-4mm² wire. Operates -60°C to 105°C.

Key Features

12 connections (poles) for efficient power and signal distribution.
Push-in connection method ensures quick and easy, tool-free wiring.
Suitable for DIN rail mounting (NS 35/7,5, NS 35/15) for secure installation.
Horizontal alignment allows for high wiring density and space savings in control cabinets.
Can be bridged with plug-in bridges for flexible configurations and system expansion.
Wide operating temperature range from -60 °C to 105 °C ensures reliability in harsh environments.
Constructed from gray (RAL 7042) insulating material with a UL 94 V0 flammability rating.
RoHS compliant, meeting environmental regulatory standards.

Technical Specification Matrix

Parameter	Value
Rated Voltage (IEC)	690 V
Rated Current	24 A
Number of Positions / Poles	12
Connection Method	Push-in connection
Conductor Cross Section (Solid)	0.14 mm² - 4 mm²
Conductor Cross Section (Flexible, with/without ferrule)	0.14 mm² - 2.5 mm²
Conductor Cross Section (AWG)	26 - 12 AWG
Stripping Length	8 mm - 10 mm
Mounting Type	DIN rail (NS 35/7,5, NS 35/15)
Color	Gray (RAL 7042)
Operating Temperature	-60 °C to 105 °C
Flammability Rating (UL 94)	V0
Physical Weight (kg)	0.03
Dimensions L x W x H (cm)	4.57 x 3.15 x 3.09

Industrial Applications

1. Control Cabinet Power Distribution in Manufacturing Plants

This distribution block efficiently distributes 690V/24A power to multiple loads or control circuits within industrial control cabinets. Its 12 poles allow for organized and compact wiring, crucial for complex machinery setups.

Problem Solved

Streamlines complex wiring in control cabinets, significantly reducing installation time due to the Push-in technology, and provides a robust, centralized power distribution point for various industrial machinery components.

Control cabinetpower distribution690V24ADIN railPush-in connectionindustrial automation

2. HVAC System Wiring in Commercial Buildings

Ideal for connecting numerous sensors, actuators, and control devices within large commercial HVAC systems, this block efficiently handles power and signal distribution. Its wide operating temperature range ensures reliable performance in diverse equipment room environments.

Problem Solved

Provides a centralized and secure connection point for multiple electrical connections in HVAC units, facilitating easier installation and maintenance while guaranteeing stable operation across a broad temperature spectrum, from -60°C to 105°C.

HVACbuilding automationwiring12-polePush-intemperature stability690V24A

3. Signal and Power Distribution in Renewable Energy Inverters

Within compact inverters for solar or wind energy systems, this distribution block effectively manages the distribution of both control signals and lower power auxiliary circuits. It leverages its high connection density and reliable Push-in terminals.

Problem Solved

Offers a compact and robust solution for distributing up to 12 electrical lines within the constrained spaces of renewable energy equipment, ensuring secure and stable connections even under conditions that might involve vibrations.

Renewable energyinvertersignal distributionpower distributioncompact designPush-inDIN rail690V
