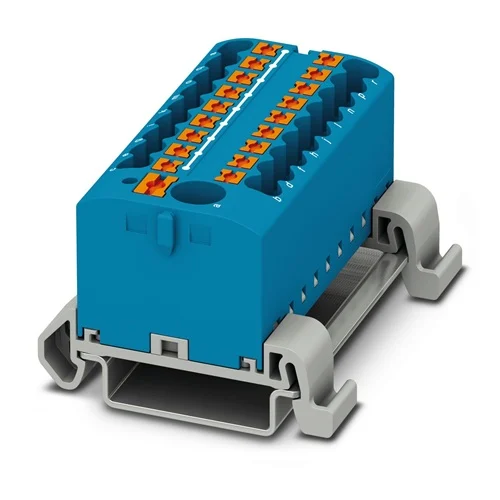

Phoenix Contact PTFIX 6/18X2,5-NS35A BU Distribution Block

Technical Overview

Blue Push-in distribution block, 690V, 24A, 19 connections, 0.14-10mm² conductor range, DIN rail mountable. Operates -60°C to 105°C.

Key Features

Space savings of up to 50% on the DIN rail due to transverse mounting.
Flexible mounting options: DIN rail, direct, or adhesive mounting.
Clear wiring facilitated by eleven different color variants, with this model being blue (RAL 5015).
Time-saving conductor connection via tool-free Push-in direct connection technology.
Blocks can be bridged with one another via the conductor shaft.

Technical Specification Matrix

Parameter	Value
Nominal Voltage	690 V
Nominal Current	24 A
Rated Surge Voltage	8 kV
Number of Connections	19
Number of Levels	1
Mounting Type	DIN rail NS 35/7,5, NS 35/15
Connection Method	Push-in connection
Conductor Cross Section (Load contact)	0.14 mm² - 4 mm²
Conductor Cross Section (Line contact)	0.5 mm² - 10 mm²
Rated Cross Section (Line contact)	6 mm²
Color	blue (RAL 5015)
Insulating Material	PA
Degree of Pollution	3
Overvoltage Category	III
Operating Temperature Range	-60 °C to 105 °C
Max Load Current (with 6 mm² conductor)	41 A
Max Load Current (with 10 mm² conductor)	57 A
Physical Weight (kg)	0.04
Dimensions L x W x H (cm)	4.57 x 5.65 x 3.09

Industrial Applications

1. Industrial Control Panel Power Distribution

This distribution block is ideal for high-density wiring in industrial control panels, facilitating efficient power distribution to multiple components from a single supply. Its compact design saves valuable space on the DIN rail. The Push-in technology minimizes wiring time during assembly.

Problem Solved

Traditional terminal blocks can be cumbersome and time-consuming to wire in dense control panels. This product's Push-in technology significantly reduces wiring time and its compact 56.5mm width and DIN rail mounting optimize space utilization, solving panel clutter and installation efficiency issues.

Control PanelDIN RailPower DistributionPush-in TechnologySpace-saving690 V

2. Machine Automation Power Tapping

Suitable for distributing power within complex machinery and automation systems, especially where quick and reliable connections are crucial during initial assembly and subsequent maintenance. The robust construction and wide operating temperature range of -60°C to 105°C ensure consistent performance in demanding machine environments.

Problem Solved

Machines often require numerous power taps for various sensors, actuators, and control modules, which can be complex and prone to errors with traditional screw terminals. This block offers a robust, organized, and quickly deployable Push-in solution, reducing wiring errors and minimizing maintenance downtime.

Machine AutomationPower TapsPush-in ConnectionRapid AssemblyWide Temperature Range-60°C to 105°C690 V

3. Building Infrastructure Auxiliary Electrical Distribution

Can be employed in building infrastructure for secondary power distribution within electrical enclosures, serving auxiliary systems like lighting controls, HVAC components, or security devices. The secure Push-in connection, 690V rating, and potential for color-coded wiring make it suitable for various building electrical standards and organizational needs.

Problem Solved

Efficient and secure distribution of power to numerous circuits within building electrical systems is critical. This block provides a reliable, easily installable solution for secondary distribution, leveraging Push-in connections for quick deployment and the option of color variants (though this is blue) for clear circuit identification, reducing installation time and potential wiring mistakes.

Electrical EnclosuresBuilding AutomationSecondary DistributionPush-in690 VOrganized Wiring
