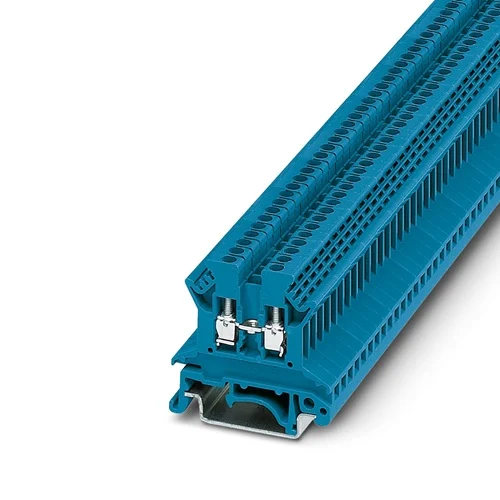

Phoenix Contact TB 2,5 B I BU Feed-Through Terminal Block

Technical Overview

Blue feed-through terminal block, 800V/24A, 0.5-4mm² wire, screw connection, DIN rail mount. Operating temperature -60°C to 110°C.

Key Features

Nominal voltage of 800 V and nominal current of 24 A.
Accommodates wire cross-sections from 0.5 mm² to 4 mm² (AWG 20-12).
Equipped with reliable screw connection technology for secure wiring.
Designed for standard DIN rail mounting (NS 35/7,5, NS 35/15, NS 32).
Blue color for easy identification within complex wiring systems.
High flammability rating of V0 according to UL 94.
Wide operating temperature range from -60 °C to 110 °C.

Technical Specification Matrix

Parameter	Value
Nominal voltage	800 V
Nominal current	24 A
Rated cross section	2.5 mm²
Connection cross section range	0.5 mm² - 4 mm²
Number of connections	2
Connection method	Screw connection
Mounting type	DIN rail (NS 35/7,5, NS 35/15, NS 32)
Rated surge voltage	8 kV
Flammability rating (UL 94)	V0
Operating temperature range	-60 °C to 110 °C
Color	Blue (RAL 5015)
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	0 x 0.52 x 0
