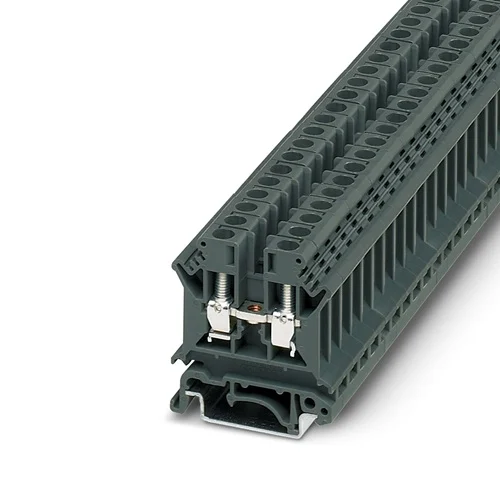

Phoenix Contact TB 6 I Feed-Through Terminal Block

Technical Overview

800V/41A feed-through terminal block with screw connection for 6mm² conductors. Features PA UL 94 V0 insulation, -60°C to 110°C operation.

Key Features

Screw connection technology for secure and reliable wiring
Rated for 800 V nominal voltage and 41 A nominal current
Accommodates conductor cross-sections from 1.5 mm² to 6 mm²
Durable PA (Polyamide) insulating material with UL 94 V0 flammability rating
Wide operating temperature range from -60 °C to 110 °C
Designed for DIN rail mounting (NS 35/7,5, NS 35/15, NS 32)
Traffic gray B (RAL 7043) color for clear identification
Features 2 connections and 1 position
Rated surge voltage of 8 kV

Technical Specification Matrix

Parameter	Value
Product Type	Feed-through terminal block
Nominal Voltage	800 V
Nominal Current	41 A
Nominal Cross Section	6 mm²
Conductor Cross Section (flexible)	1.5 mm² - 6 mm²
Connection Method	Screw connection
Number of Connections	2
Number of Positions	1
Number of Rows	1
Color	Traffic gray B (RAL 7043)
Insulating Material	PA (Polyamide)
Flammability Rating (UL 94)	V0
Operating Temperature Range	-60 °C to 110 °C
Rated Surge Voltage	8 kV
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Mounting Type	NS 35/7,5, NS 35/15, NS 32 (DIN rail)
Physical Weight (kg)	0.01
Dimensions L x W x H (cm)	5.45 x 0.82 x 4.25

Industrial Applications

1. Secure Power Distribution in Control Cabinets

This terminal block is ideal for distributing 800 V and 41 A power within industrial control panels, connecting various components securely. Its screw connection ensures reliable contact even in vibration-prone environments. The compact dimensions allow for efficient use of space in crowded enclosures.

Problem Solved

Provides a robust and safe method for high-voltage and high-current wiring in confined control cabinet spaces, preventing loose connections and ensuring operational stability.
