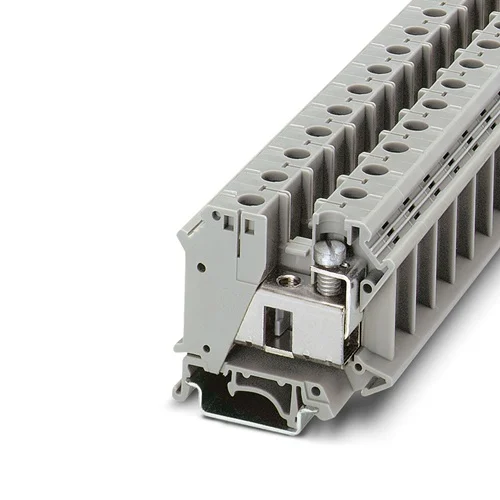

Phoenix Contact UIK 35 Installation Terminal Block

Technical Overview

800V, 125A screw terminal for 0.75-35mm² conductors. DIN rail mount, gray. Operates from -60°C to 110°C with 8kV surge protection. Ideal for flat distributors.

Key Features

Screw connection for reliable and secure wiring.
Suitable for conductor cross-sections from 0.75 mm² to 35 mm² (AWG 18-2).
Designed for DIN rail mounting (NS 35/7.5, NS 35/15, NS 32).
Low-profile design ideal for flat distributors.
Asymmetric arrangement allows neutral busbar routing past terminal blocks.
High rated surge voltage of 8 kV ensures electrical safety.
Operating temperature range from -60 °C to 110 °C.

Technical Specification Matrix

Parameter	Value
Nominal Voltage	800 V
Nominal Current	125 A
Rated Surge Voltage	8 kV
Connection Method	Screw Connection
Rated Cross Section	35 mm²
Conductor Cross-section rigid	0.75 mm² - 35 mm² (AWG 18-2)
Conductor Cross-section flexible	0.75 mm² - 35 mm² (AWG 18-2)
Mounting Type	DIN Rail (NS 35/7,5, NS 35/15, NS 32)
Color	Gray (RAL 7042)
Number of Connections	2
Number of Levels	1
Width	15.2 mm
Height	55 mm
Depth on NS 35/15	58.5 mm
Operating Temperature Range	-60 °C ... 110 °C
Degree of Pollution	3
Overvoltage Category	III
Insulating Material	Polyamide (PA)
Flammability Rating (UL 94)	V0
Tightening Torque	3.2 ... 3.7 Nm
Stripping Length	16 mm
Physical Weight (kg)	0.04
Dimensions L x W x H (cm)	5.85 x 1.52 x 5.5
