$ 160.54 – $ 530.38

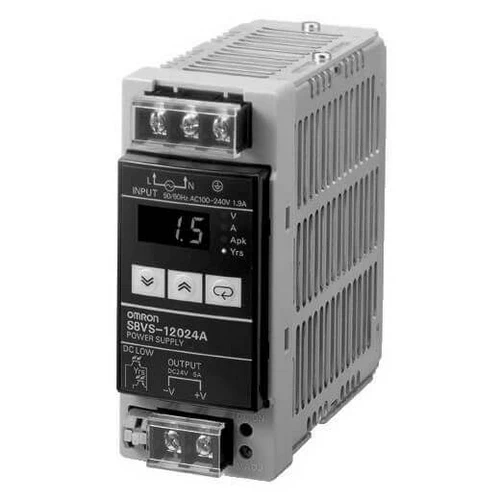

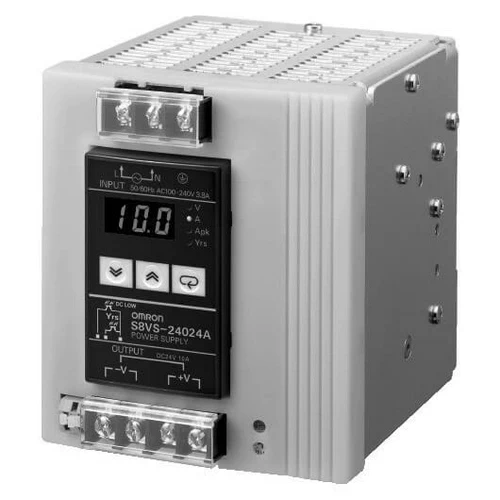

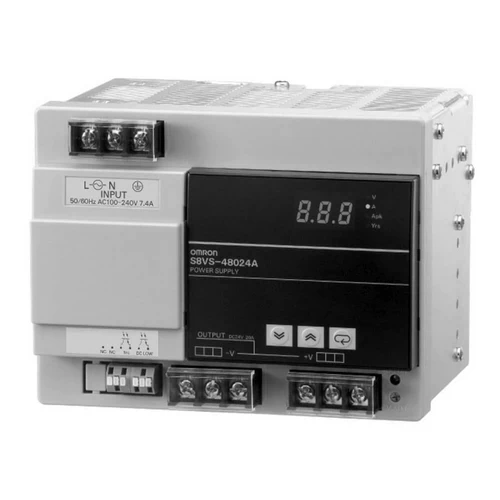

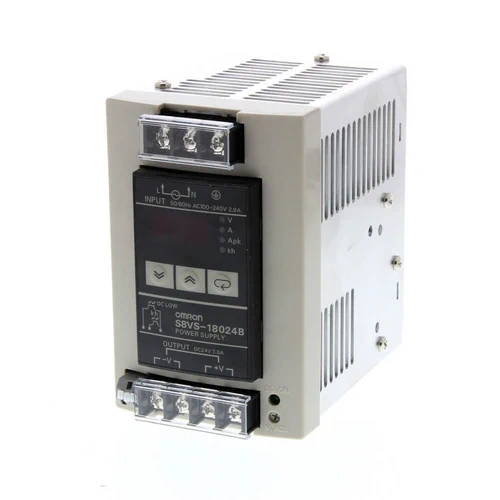

| Model | S8VS-06024A | S8VS-12024A | S8VS-18024A | S8VS-24024A | S8VS-48024A |
| Type | Book type | Book type | Book type | Book type | Book type |
| Mounting method | DIN rail | DIN rail | DIN rail | DIN rail | DIN rail |
| Phase | Single | Single | Single | Single | Single |
| Power output | 60 W | 120 W | 180 W | 240 W | 480 W |
| Efficiency | 85% | 85% | 87% | 88% | 93% |
| Output voltage | 24 V | 24 V | 24 V | 24 V | 24 V |
| Rated output current | 2.5 A | 5:00 AM | 7.5 A | 10:00 AM | 20 A |
| Temperature range | 25-85 °C | 25-85 °C | 25-85 °C | 25-85 °C | 25-85 °C |
| Features | UL class 2 | – | – | – | |
| Terminal | Screw | Screw | Screw | Screw | Screw |
| Communication port(s) | None | None | None | None | None |
| Alarm function | – | Transistor – sinking | Transistor – sinking | Transistor – sinking | Transistor – sinking, Transistor – sourcing |
| Number of output branches | 1 | 1 | 1 | 1 | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V | 100-240 V | 100-240 V | 100-240 V | 100-240 V |
| Allowable supply voltage AC | 85-264 V | 85-264 V | 85-264 V | 85-264 V | 85-264 V |
| Allowable supply voltage DC | 80-370 V | 80-370 V | 80-370 V | 80-370 V | – |
| Product Width (unpacked) | 40 mm | 50 mm | 75 mm | 100 mm | 151.2 mm |
| Product Height (unpacked) | 95 mm | 115 mm | 115 mm | 115 mm | 120 mm |
| Product Depth (unpacked) | 108.3 mm | 121.3 mm | 125.3 mm | 125.2 mm | 127.2 mm |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | S8VS-06024A, S8VS-09024A, S8VS-12024A, S8VS-18024A, S8VS-24024A, S8VS-48024A |
