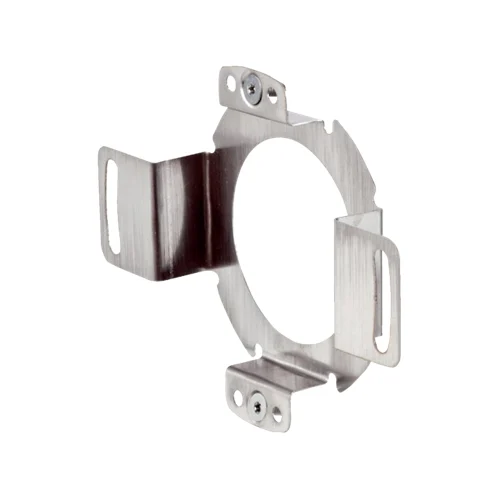

SICK 2056812 BEF-DS00XFX Standard Stator Coupling

USD 33.80

BEF-DS00XFX is a standard stator mounting coupling with Ø50 mm central opening, 63 mm slot circle, 3.2 mm slot width and 0.3 mm sheet thickness.

SKU SICK-2056812 Category
SICK Mounting Systems

SICK BEF-DS00XFX Standard Stator Coupling

BrandSICK
Model IdentifierBEF-DS00XFX
Official Part Number2056812

Technical Overview

The SICK BEF-DS00XFX is a standard stator coupling for compatible encoder and motor-feedback mounting arrangements. Its formed 0.3 mm sheet incorporates a Ø50 mm central opening, 3.2 mm slots on a 63 mm circle and countersunk Ø5 mm fixing details, providing the documented mechanical attachment geometry.

Standard stator mounting coupling with Ø50 mm central opening, 63 mm slot circle, 3.2 mm slot width and formed 0.3 mm sheet.

Key Features

  • Standard stator coupling for compatible mounting arrangements
  • Opposed mounting tabs; 47 mm spacing in the lower drawing
  • Ø50 mm central opening
  • Slots on a Ø63 mm circle with 3.2 mm slot width
  • 20° slot span shown in manufacturer drawing
  • Ø5 mm countersunk fixing detail with 90° angle
  • 0.3 mm sheet thickness
  • Formed geometry with 10.4 mm overall axial depth

Attach a compatible encoder stator through the formed coupling’s documented opening, slot circle and fixing geometry.

Technical Specification Matrix

ParameterValue
Product typeStandard stator coupling
Accessory groupMounting systems
Accessory familyStator couplings
Central openingØ50 mm
Slot circleØ63 mm
Slot width3.2 mm
Slot angular span20°
Countersunk fixing detailØ5 mm, 90°
Sheet thickness0.3 mm
Inner drawing diametersØ51 mm and Ø52 mm
Tab spacing47 mm as shown in lower orthogonal view
Support-portal exampleBEF-DS00XFX is the mounted coupling for SFS60/SFM60 stator variant 0; SFM60-HRAT0K02 is the documented example
Dimensions L x W x H (cm)1.04 × 7.2 × 5.79
