SICK 2022464 BEF-KHS-G01 Plate G Universal Clamp Bracket

USD 27.30

Zinc-coated steel Plate G with BEF-KHS-KH1 universal clamp and mounting hardware, for the listed W34, W24-2, LUT3, CS8, KT5-2, KT10 and KT8 families.

SKU SICK-2022464 Category
SICK Mounting Systems

SICK BEF-KHS-G01 Plate G Universal Clamp Bracket

BrandSICK
Model IdentifierBEF-KHS-G01
Official Part Number2022464

Technical Overview

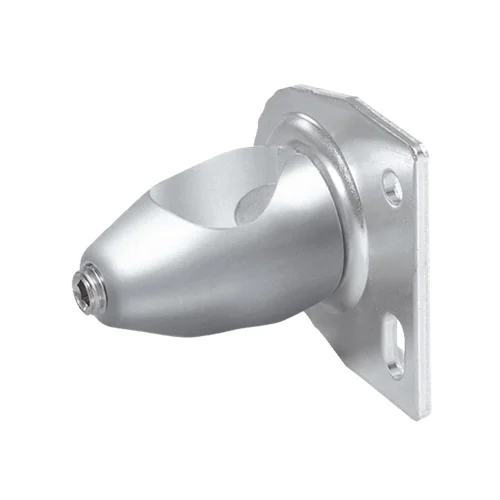

The SICK BEF-KHS-G01 is a zinc-coated steel Plate G mounting accessory for a universal clamp bracket. It includes one BEF-KHS-KH1 universal clamp, part number 2022726, and mounting hardware, with manufacturer-listed use for W34, LUT3, KT5-2, KT10, CS8, W24-2 and KT8 sensors.

Zinc-coated steel Plate G mounting accessory with BEF-KHS-KH1 universal clamp and mounting hardware for the manufacturer-listed sensor families.

Key Features

  • Plate G mounting plate for a universal clamp bracket
  • Zinc-coated steel construction
  • One BEF-KHS-KH1 universal clamp, part number 2022726, included
  • Mounting hardware included
  • Manufacturer-listed use for W34 and W24-2 sensors
  • Manufacturer-listed use for LUT3 and CS8 sensors
  • Manufacturer-listed use for KT5-2, KT10 and KT8 sensors
  • Plate-only drawing: 47 mm width, 50.3 mm height, Ø5.3 mm mounting holes

Mount a listed compatible sensor using zinc-coated steel Plate G with the supplied universal clamp and mounting hardware.

Technical Specification Matrix

ParameterValue
Product typePassive mounting accessory
Accessory groupMounting systems
Accessory familyBrackets
Mounting system typeMounting plate
DescriptionPlate G for universal clamp bracket
MaterialZinc-coated steel
Items suppliedOne BEF-KHS-KH1 universal clamp, part number 2022726; mounting hardware
Manufacturer-listed sensor familiesW34; LUT3; KT5-2; KT10; CS8; W24-2; KT8
Plate-only drawing47 mm width; 50.3 mm height; 2 mm plate thickness; 2.5 mm formed profile depth
Plate mounting-hole drawingØ5.3 mm; 24.5 mm horizontal pitch
Plate center openingØ20.1 mm
Clamp-only drawingØ28 mm maximum circular span; 42.6 mm principal axial span; Ø12 mm end; M8 interface
