SICK 2011436 BEF-KK-W45 Stainless Ball-Clamp Bracket

USD 139.10

Stainless steel ball-clamp mounting bracket supplied with hardware, featuring a 45 ×40 mm upper plate, 6.5 mm plate holes and a slotted support.

SKU SICK-2011436 Category
SICK Mounting Systems

SICK BEF-KK-W45 Stainless Ball-Clamp Bracket

BrandSICK
Model IdentifierBEF-KK-W45
Official Part Number2011436

Technical Overview

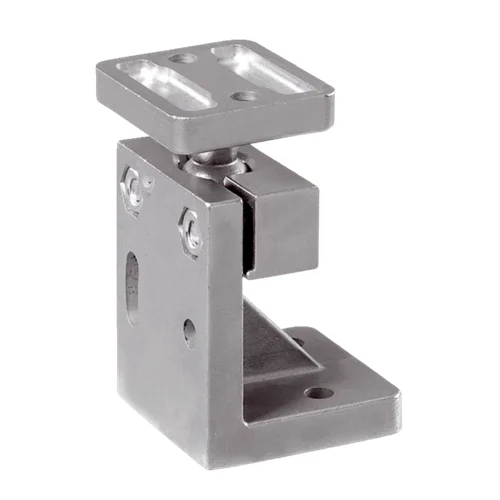

The SICK BEF-KK-W45 is a stainless steel ball-clamp bracket for positioning compatible mounted equipment. Mounting hardware is included; the drawing shows a 45 ×40 mm upper plate with 6.5 mm holes and a slotted lower support for mechanical attachment.

Stainless steel ball-joint mounting bracket with included mounting hardware, upper attachment plate and slotted lower support.

Key Features

  • Ball-clamp / ball-joint mounting bracket
  • Stainless steel construction
  • Mounting hardware included
  • Upper attachment plate: 45 ×40 mm
  • Upper plate holes: 6.5 mm; 30 mm center spacing in drawing
  • Upper plate thickness: 8.5 mm
  • Lower support includes 6.3 mm slot/holes
  • Lower support drawing: 50 mm base width and 74 mm support axis

Position compatible mounted equipment through a stainless steel ball joint, using the supplied hardware and the plate-and-slot attachment arrangement.

Technical Specification Matrix

ParameterValue
Accessory groupMounting systems
Accessory familyBrackets
Bracket designBall clamp bracket / ball-joint bracket
MaterialStainless steel
Items suppliedMounting hardware included
Upper plate plan size45 ×40 mm
Upper plate thickness8.5 mm
Upper plate attachment6.5 mm holes; 30 mm spacing shown in drawing
Lower support attachment6.3 mm slot and holes in manufacturer drawing
Lower support partial sizes50 mm base width; 48 mm base-side axis; 74 mm support height; 9 mm base thickness
