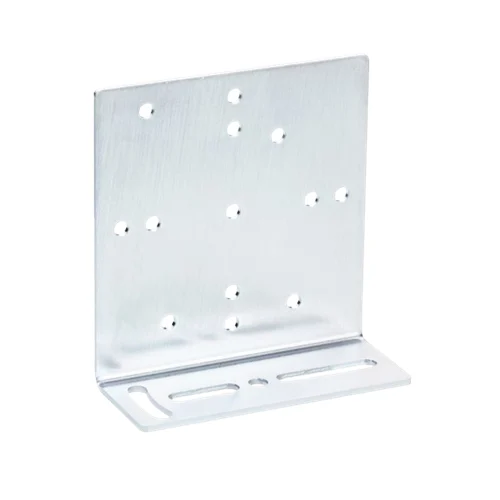

SICK 2064574 BEF-WN-REFX Universal Reflector Mounting Bracket

USD 28.60

BEF-WN-REFX is a zinc-coated steel reflector bracket for C110A, P250, PL30A, PL40A and PL80A, with thirteen Ø4.4 mm holes and a slotted base.

SKU SICK-2064574 Category
SICK Mounting Systems

SICK BEF-WN-REFX Universal Reflector Mounting Bracket

BrandSICK
Model IdentifierBEF-WN-REFX
Official Part Number2064574

Technical Overview

The SICK BEF-WN-REFX is a universal zinc-coated steel mounting bracket for C110A, P250, PL30A, PL40A and PL80A reflectors. Its 2 mm plate combines thirteen Ø4.4 mm reflector holes with a slotted mounting base, including an R35 curved slot with a 30° span.

Universal zinc-coated steel reflector bracket with thirteen Ø4.4 mm holes, 2 mm plate and a slotted mounting base.

Key Features

  • Universal mechanical mounting bracket for reflectors
  • Compatible with C110A and P250 reflectors
  • Compatible with PL30A, PL40A and PL80A reflectors
  • Zinc-coated steel construction
  • 2 mm plate thickness
  • Thirteen Ø4.4 mm reflector mounting holes
  • Slotted base with 5.5 mm slot width
  • R35 curved base slot with 30° span, as dimensioned

Attach a compatible reflector through the documented hole pattern and position the zinc-coated steel bracket using its straight and curved base slots.

Technical Specification Matrix

ParameterValue
Product typeUniversal mounting bracket for reflectors
Accessory groupMounting systems
Accessory familyBrackets
Verified reflector compatibilityC110A; P250; PL30A; PL40A; PL80A
MaterialSteel, zinc coated
Plate thickness2 mm
Reflector mounting holesThirteen Ø4.4 mm holes
Base slots5.5 mm slot width; straight and curved slots
Curved slotR35 radius; 30° span
Mounting typeMechanical bracket
Dimensions L x W x H (cm)3.5 × 8.5 × 9
