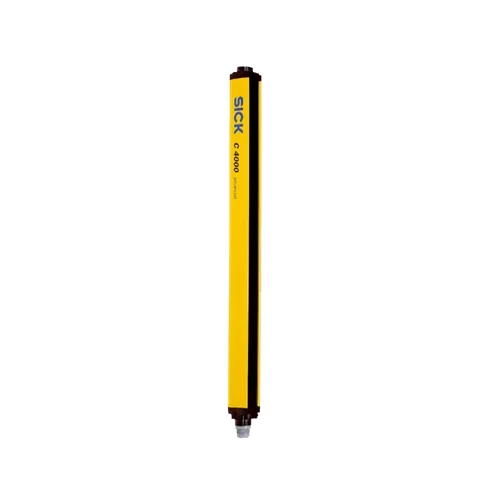

| System part | C4000 Advanced light-curtain receiver; matched sender and complete safety-control integration required |
| Manufacturer datasheet family | C4000 Advanced |
| Application environment | Normal industrial environment |
| Protective field height | 1,200 mm |
| Resolution | 30 mm |
| Scanning range | Exact datasheet: 21 m; system manual for 20/30/40 mm resolution: 19 m guaranteed and 21 m typical; typical maximum has reduced optical reserve |
| Range configuration | Factory setting 0–6 m; match configuration to actual protective-field width |
| Synchronization | Optical; no separate synchronization connection |
| Wavelength | 850 nm |
| System safety ratings | Type 4, IEC 61496-1; SIL 3, IEC 61508; category 4 and PL e, EN ISO 13849; achieved performance depends on the complete validated system |
| Mission time | 20 years, EN ISO 13849 |
| System safe state | At least one OSSD in the OFF state on a fault |
| Beam coding | Uncoded, code 1 or code 2; neighboring systems use different codes; sender and receiver of one system use matching coding; coding increases system response time and changes required minimum distance |
| Protective operation | Available within a matched sender/receiver system |
| Restart interlock and EDM | Restart interlock available, external at delivery; EDM available, deactivated at delivery |
| Blanking | Fixed and floating blanking available, deactivated at delivery; blanked areas require separate risk assessment and appropriate guarding |
| Functions with UE402 | Bypass, operating-mode switching and PSDI in a suitable complete system with UE402 |
| System connection | Straight; DIN 43651 M26 plug, 11 contacts plus FE, shown in the manufacturer drawing |
| Connection conductor cross-section | 0.75 mm² reference |
| Permitted cable length | 50 m depending on load, power supply and conductor cross-section; installation-specific limits apply |
| Display | Seven-segment display |
| Power supply | 24 V DC nominal; 19.2–28.8 V; external supply must buffer 20 ms mains interruptions to EN 60204-1 |
| Residual ripple | ≤10%, within supply-voltage limits |
| Protection class | III, IEC 61140 |
| Housing material | Extruded aluminum profile |
| Housing cross-section | 48 × 40 mm; partial profile size |
| IP rating | IP65, EN 60529; all plug connections closed |
| Operating temperature | 0 to +55 °C |
| Storage temperature | −25 to +70 °C |
| Air humidity | 15–95%, non-condensing |
| Vibration resistance | 5 g, 10–55 Hz; EN 60068-2-6 |
| Shock resistance | 10 g, 16 ms; EN 60068-2-27 |
| Documented relay integration | Manufacturer example uses C4000 Advanced with UE402, contactors, restart interlock and EDM; complete installation-specific configuration required |
| Response time | 13 ms without beam coding, without blanking and without cascaded systems; use applicable operating-instruction timing for other configurations |
| OSSD outputs | Two PNP semiconductors; short-circuit protected and cross-circuit monitored for −30 to +30 V |
| OSSD current capacity | ≤500 mA per OSSD |
| OSSD HIGH voltage | Nominal 24 V DC; supply minus 2.25 V to supply |
| OSSD LOW voltage | ≤2 V DC |
| Configuration | PC with CDS, Configuration and Diagnostic Software |
| Configuration connection | M8 four-pin female connector |
| EFI | Safe SICK device communication via EFI |
| Physical Weight (kg) | 2.56 |
| Dimensions L x W x H (cm) | 132.9 x 4.8 x 4.0 |
