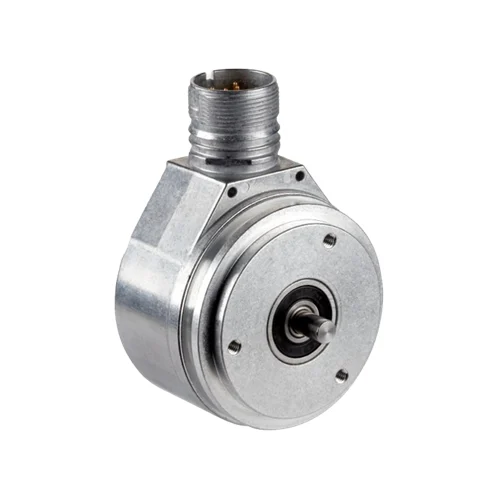

SICK 1060009 DFS60B-S1UA08192 8,192-ppr TTL Incremental Encoder

USD 464.10

TTL/RS-422 six-channel output, hardware 0-SET, 4.5–5.5 V supply, radial M23 12-pin connection and a 6 × 10 mm solid shaft with servo flange.

SKU SICK-1060009 Category
SICK Encoders

SICK DFS60B-S1UA08192 8,192-ppr TTL Incremental Encoder

BrandSICK
Model IdentifierDFS60B-S1UA08192
Official Part Number1060009

Technical Overview

The SICK DFS60B-S1UA08192 is an incremental encoder with 8,192 pulses per revolution and six-channel TTL/RS-422 signaling. Its hardware 0-SET input assigns the Z reference pulse to the current shaft position using the documented input sequence. The encoder operates from 4.5–5.5 V and connects through a radial M23 12-pin male connector. A stainless-steel solid shaft measuring 6 mm in diameter and 10 mm long has a flat and servo flange mounting. The output-frequency limit is 600 kHz, and speed selection also accounts for mechanical limits and self-heating. An aluminum flange and die-cast aluminum housing provide IP65 shaft-side protection and IP67 housing-side protection with the mating connector fitted.

8,192-ppr six-channel TTL/RS-422 encoder with hardware 0-SET, 4.5–5.5 V supply, 6 mm solid shaft and radial M23 12-pin connection.

Key Features

  • 8,192 pulses per revolution
  • Six incremental TTL/RS-422 channels: A, A̅, B, B̅, Z and Z̅
  • Hardware 0-SET assigns the index pulse to the current shaft position
  • 4.5–5.5 V supply; 40 mA operating current without load
  • Output frequency ≤600 kHz; load current ≤30 mA
  • 6 mm diameter × 10 mm solid stainless-steel shaft with flat
  • Servo flange; aluminum flange and die-cast aluminum housing
  • Radial M23 12-pin male connector
  • IP65 shaft side; IP67 housing side with mating connector fitted
  • Operating speed ≤9,000 rpm, subject to output frequency and 3.3 K/1,000 rpm self-heating allowance

Set the index pulse electrically at the machine reference and deliver high-resolution incremental TTL/RS-422 feedback to external motion logic.

Technical Specification Matrix

ParameterValue
Encoder typeIncremental encoder
Pulses per revolution8,192; observe manufacturer speed/output-frequency limits
Measuring step90 electrical degrees / pulses per revolution
Measuring-step deviation±0.008° at binary number of lines
Error limits±0.05°
Communication interfaceTTL/RS-422 incremental
Signal channelsSix: A, A̅, B, B̅, Z and Z̅
0-SET functionHardware input, H-active; LOW 0–3 V, HIGH 4 V to supply voltage
0-SET sequenceAfter input open or at GND for ≥1,000 ms, apply supply voltage for >250 ms to assign the current shaft position to Z
Reference signalOne; 90 electrical degrees, logically gated with A and B
Initialization time30 ms
Output frequency≤600 kHz
Load current≤30 mA
Operating current40 mA without load
Power supply4.5–5.5 V
ConnectionM23 12-pin male connector, radial
M23 pin assignment1 B̅; 3 Z; 4 Z̅; 5 A; 6 A̅; 7 0-SET; 8 B; 10 GND; 12 supply; 2, 9 and 11 not assigned
Shield connectionEncoder-side housing connection; control-side ground connection
Circuit protectionReverse-polarity protection; output short circuit to another channel, supply or GND permitted for maximum 30 s
Mechanical designSolid shaft with servo flange
Shaft diameter6 mm
Shaft length10 mm
Shaft characteristicWith flat
Shaft materialStainless steel
Flange materialAluminum
Housing materialAluminum die cast
Start-up torque0.5 Ncm at +20 °C
Operating torque0.3 Ncm at +20 °C
Permissible shaft load80 N radial; 40 N axial
Operating speed≤9,000 rpm; also observe electrical output-frequency limit and self-heating allowance of 3.3 K per 1,000 rpm
Rotor inertia6.2 gcm²
Bearing lifetime3.6 × 10¹⁰ revolutions
Angular acceleration≤500,000 rad/s²
IP ratingIP65 shaft side; IP67 housing side and male connector with mating connector fitted, IEC 60529
Operating temperature−40 to +100 °C with stationary cable position; −30 to +100 °C with flexible cable position; allow for speed-related self-heating
Storage temperature−40 to +100 °C without packaging
Relative humidity90%; condensation not permitted
Shock resistance70 g for 6 ms, EN 60068-2-27
Vibration resistance30 g, 10–2,000 Hz, EN 60068-2-6
EMCEN 61000-6-2 and EN 61000-6-3
MTTFD300 years to EN ISO 13849-1; nominal component loads, average +40 °C, 8,760 h/year; all electronic failures counted as hazardous; standard product, not a safety component
Physical Weight (kg)0.3

Industrial Applications

1. Measuring the speed of a driven roller

A machine can couple the encoder shaft to a driven roller and feed the TTL/RS-422 incremental channels to an external counter. The controller measures pulse frequency and converts it to roller speed using 8,192 pulses per revolution. Shaft loading, electrical output frequency and the documented speed-related temperature allowance define the operating assessment, while initialization time determines when signal acquisition can begin.

Problem Solved

Pulse-frequency feedback gives external drive logic a measured roller-speed reference, helping compare actual rotation with the commanded transport rate during operation.

Roller speed TTL/RS-422 Incremental feedback

2. Tracking material length from a feed roller

A material feeder can couple the encoder to a roller whose effective circumference is known and count incremental rotation after an external reference event. The 8,192 pulses per revolution supply the scale for converting roller motion to feed length. Phase-shifted A and B channels let external counting logic account for reverse motion, with the actual roller contact and slip determining how well rotation represents material travel.

Problem Solved

Bidirectional pulse accumulation gives external feed control a relative travel value, helping coordinate material advance with the measured rotation of the coupled roller.

Relative feed length A/B channels External scaling

3. Aligning an index pulse to a machine reference

During commissioning, a machine can hold the shaft at its intended angular reference and assign that position to the encoder’s Z pulse through the 0-SET input. After the input has been open or at GND for at least 1,000 ms, applying supply voltage for longer than 250 ms performs the documented assignment. External sequencing then uses Z with A and B as its cyclic phase reference.

Problem Solved

A hardware-adjustable index position helps external sequencing align the recurring encoder reference with the machine’s chosen angular position without mechanically rotating the encoder body.

0-SET Machine phase reference Z pulse
