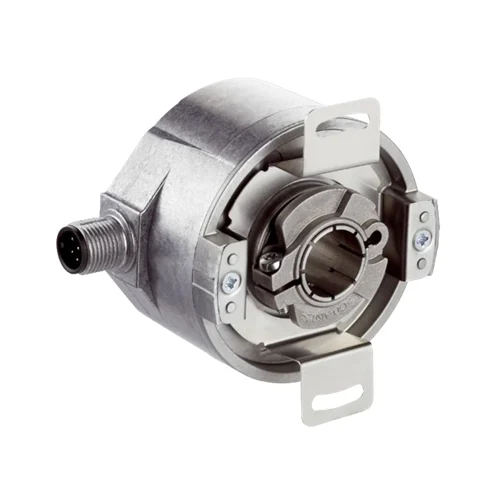

SICK 1050304 DFS60B-TECC03600 3,600 PPR TTL Through-Shaft Encoder

USD 541.06

DFS60B-TECC03600 offers 3,600 PPR, six TTL/RS-422 channels, a 12 mm through hollow shaft with front clamp and a radial M12 eight-pin connector.

SKU SICK-1050304 Category
SICK Encoders

SICK DFS60B-TECC03600 3,600 PPR TTL Through-Shaft Encoder

BrandSICK
Model IdentifierDFS60B-TECC03600
Official Part Number1050304

Technical Overview

The SICK DFS60B-TECC03600 is a 3,600-pulse incremental encoder with a fixed TTL/RS-422 interface and six A/B/Z channels including complements. Its 12 mm through hollow shaft uses front clamping, with a minimum 15 mm shaft engagement shown in the mounting drawing. A radial M12 eight-pin male connector provides the electrical interface to a 10–32 V DC supply. Initialization is 40 ms, output frequency is ≤600 kHz and one 90° electrical index is gated with A and B. Operating speed is ≤6,000 min⁻¹ with self-heating considered. The aluminum die-cast housing has IP65 protection with a mating connector fitted, and the shaft side is IP65; temperature limits depend on stationary or flexible cable positioning.

3,600 PPR TTL/RS-422 encoder with a 12 mm through hollow shaft, front clamp, radial M12 eight-pin connector and 10–32 V DC supply.

Key Features

  • 3,600 pulses per revolution; fixed TTL/RS-422 interface
  • Six A/B/Z channels including complements; one 90° electrical index
  • 12 mm through hollow shaft with front clamp; minimum engagement 15 mm
  • Radial M12 eight-pin male connector
  • 10–32 V DC; 40 ms initialization; output frequency ≤600 kHz
  • Load current ≤30 mA; power consumption ≤0.5 W without load
  • Reverse-polarity protection; outputs short-circuit protected against another channel or GND for maximum 30 s
  • Operating speed ≤6,000 min⁻¹ with self-heating of 3.3 K per 1,000 min⁻¹ considered
  • Stainless steel shaft; aluminum flange and die-cast housing; IP65 housing with mating connector fitted and IP65 shaft
  • Operation −40 to +100 °C with stationary cable position; −30 to +100 °C with flexible cable position

Fit directly over a 12 mm shaft and obtain six-channel TTL/RS-422 incremental feedback through a detachable radial M12 connection.

Technical Specification Matrix

ParameterValue
Functional principleIncremental rotary encoder
Pulses per revolution3,600
Measuring step90° electrical / pulses per revolution
Measuring-step deviation±0.01° at non-binary number of lines
Error limits±0.05°
Electrical interfaceTTL/RS-422
Output channelsSix: A, inverted A, B, inverted B, Z, inverted Z
Reference signalOne per revolution; 90° electrical, logically gated with A and B
Initialization time40 ms
Output frequency≤600 kHz
Load current≤30 mA
Power consumption≤0.5 W without load
ConnectionRadial M12 eight-pin male connector
Power supply10–32 V DC
Reverse-polarity protectionYes
Short-circuit protectionOutputs protected against another channel or GND for maximum 30 s
Shaft12 mm through hollow shaft; front clamping
Minimum shaft engagement15 mm
Shaft materialStainless steel
Flange materialAluminum
Housing materialAluminum die-cast
Starting torque0.8 Ncm at +20 °C
Operating torque0.6 Ncm at +20 °C
Static displacementRadial ±0.3 mm; axial ±0.5 mm
Dynamic displacementRadial ±0.1 mm; axial ±0.2 mm
Operating speed≤6,000 min⁻¹; allow self-heating of 3.3 K per 1,000 min⁻¹
Rotor inertia40 gcm²
Bearing life3.6 × 10¹⁰ revolutions
Angular acceleration≤500,000 rad/s²
IP ratingIP65 housing/male-connector side with mating connector fitted; IP65 shaft side; IEC 60529
Relative humidity90%; condensation not permitted
Operating temperature−40 to +100 °C with stationary cable position; −30 to +100 °C with flexible cable position
Storage temperature−40 to +100 °C, unpacked
EMCEN 61000-6-2 and EN 61000-6-4
Shock resistance70 g, 6 ms; EN 60068-2-27
Vibration resistance30 g, 10–2,000 Hz; EN 60068-2-6
M12 pin functions1=inverted A; 2=A; 3=inverted B; 4=B; 5=inverted Z; 6=Z; 7=GND; 8=Us
MTTFD300 years; standard product, not a safety component; nominal component load, average 40 °C, 8,760 h/year
Physical Weight (kg)0.2

Industrial Applications

1. Measuring travel through a driven feed shaft

A material feeder can mechanically couple the encoder to its drive shaft and evaluate A/B transitions with an external counter. The controller converts incremental revolutions into travel using the installed drive ratio and 3,600 pulses per revolution. Commissioning checks slip, coupling alignment and electrical input compatibility before using the counts as a feed-distance reference.

Problem Solved

Incremental shaft feedback gives external feed-control logic a travel reference related to the installed drive geometry, helping track material advance through the selected mechanical ratio.

Feed travel 3,600 PPR A/B transitions

2. Monitoring shaft speed from incremental pulse timing

A drive-monitoring controller can calculate rotational speed from incremental pulse frequency and the known 3,600 pulses per revolution. The TTL/RS-422 interface connects to a compatible counting input. Setup checks input frequency capability and the separate electrical and mechanical encoder limits, including speed-related self-heating, before comparing measured speed with the expected operating pattern.

Problem Solved

Frequency-derived rotational feedback helps external monitoring identify changes in drive behavior, using the known pulse count and compatible input timing as its calculation basis.

Speed monitoring TTL/RS-422 Pulse frequency

3. Referencing a repeating rotary-machine cycle

A rotary machine can use the encoder Z signal as a repeating reference alongside incremental A/B counts. One index signal per revolution is logically gated with A and B at 90° electrical. External sequencing establishes the installed relationship between that reference and the machine tooling so it can relate counted movement to the intended cycle.

Problem Solved

A once-per-revolution index provides external sequencing with a recurring rotational reference, helping relate incremental counts to the selected tooling cycle after the mechanical setup is established.

Index reference Rotary cycle A/B gating
