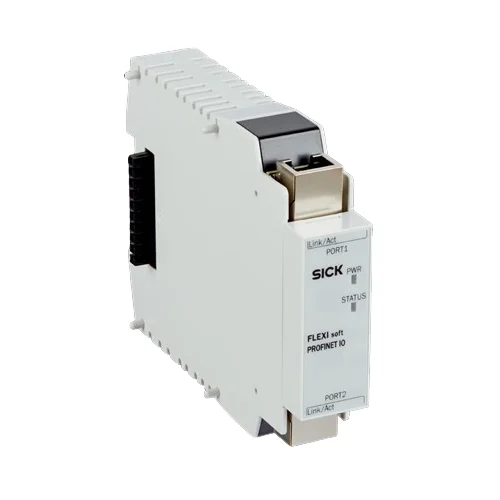

SICK 1044074 FX0-GPNT00000 Flexi Soft PROFINET Gateway

USD 771.42

Flexi Soft gateway for PROFINET and TCP/IP sockets, with two RJ45 sockets, 10/100 Mbit/s autosensing, FLEXBUS+ supply and ≤3 W internal consumption.

SKU SICK-1044074 Category
SICK Safety Controllers

SICK FX0-GPNT00000 Flexi Soft PROFINET Gateway

BrandSICK
Model IdentifierFX0-GPNT00000
Official Part Number1044074

Technical Overview

The SICK FX0-GPNT00000 is a Flexi Soft gateway for PROFINET and TCP/IP socket communication. It exchanges non-safety data for control and diagnostics and operates with a Flexi Soft system. Two RJ45 sockets connect through an integrated three-port layer-2 managed switch with Auto-MDI-X and 10/100 Mbit/s autosensing. The PROFINET process image uses five input blocks toward the PLC and five output blocks from the PLC, with configurable data mapping. Acyclic reads provide Flexi Soft checksums and individual-module status. Software configuration uses Flexi Soft Designer, or Safety Designer in the specified Safe EFI-pro system context. FLEXBUS+ supplies the module, with internal consumption ≤3 W and IP20 protection.

Flexi Soft PROFINET/TCP-IP gateway with two RJ45 sockets, 10/100 Mbit/s autosensing, configurable non-safety process data and acyclic diagnostics.

Key Features

  • PROFINET and TCP/IP socket gateway for a Flexi Soft system
  • Non-safety fieldbus data for control and diagnostics
  • Two RJ45 sockets; integrated three-port layer-2 managed switch
  • Auto-MDI-X and 10/100 Mbit/s autosensing
  • Five cyclic input blocks toward the PLC: four 12-byte blocks and one 2-byte block
  • Five cyclic output blocks from the PLC, 10 bytes each
  • Acyclic checksum and individual-module status reads
  • Flexi Soft Designer configuration; Safety Designer in specified Safe EFI-pro system context
  • Supply via FLEXBUS+; internal consumption ≤3 W; protection class III
  • IP20; −25 to +55 °C operation; humidity ≤95%, non-condensing

Expose configurable Flexi Soft process data and module diagnostics to a PROFINET controller through a FLEXBUS+-powered gateway.

Technical Specification Matrix

ParameterValue
Module typeGateway for a Flexi Soft system
Fieldbus and networkPROFINET; TCP/IP sockets
Data functionNon-safety-related control and diagnostic data; not a safety-fieldbus gateway
ConfigurationFlexi Soft Designer; Safe EFI-pro System: Safety Designer
Ethernet switchThree-port layer-2 managed switch; Auto-MDI-X
Data rates10 Mbit/s 10Base-T; 100 Mbit/s; autosensing
ConnectionTwo RJ45 sockets
PROFINET capabilitiesCyclic I/O communication; conformance class A; LLDP; SNMP; MIB-II; auto-negotiation
Firmware-dependent network capabilitiesAt firmware ≥V3.00.0: PROFINET conformance class B, Netload class 1 and MRP client
Cyclic data toward PLCFive input blocks in natural order: blocks 1–4 have 12 bytes each; block 5 has 2 bytes; configurable content
Cyclic data from PLCFive output blocks, 10 bytes each; tag names required for bits used in logic or routing
Acyclic checksum dataData set 2; 32 bytes; addresses 1200–1231
Acyclic module statusData set 3; 60 bytes; four bytes per module; addresses 1300–1359
Reserved acyclic dataData set 4; 60 bytes; addresses 1400–1459; reserved values
Power supplyVia FLEXBUS+
Internal power consumption≤3 W via FLEXBUS+
Protection classIII to EN 61140
IP ratingIP20 to EN 60529
Operating temperature−25 to +55 °C
Storage temperature−25 to +70 °C
Relative humidity≤95%, non-condensing

Industrial Applications

1. Displaying Flexi Soft process conditions on a machine HMI

A machine PLC can receive the gateway’s cyclic input blocks and map selected Flexi Soft input values, output values or logic results into HMI indications. Four blocks provide 12 bytes each and the fifth provides two bytes, with content defined in configuration. These non-safety observations give the operator process context while the machine’s protective functions remain within their separately engineered safety architecture.

Problem Solved

A configured cyclic process image gives the external PLC a consistent source for machine-state display, helping operators see selected Flexi Soft conditions through the existing HMI.

HMI process display Cyclic data PROFINET

2. Locating a module fault from controller diagnostics

Maintenance logic in a PROFINET controller can read acyclic data set 3 and examine four status bytes for each Flexi Soft module. The mapped module status supports identification of the affected location before physical inspection. The gateway’s two RJ45 sockets and autosensing Ethernet interface provide the network connection for that read, within the configured Flexi Soft installation.

Problem Solved

Per-module status data gives external maintenance logic a reference for locating an affected module, helping focus troubleshooting on the reported part of the Flexi Soft system.

Module diagnostics Acyclic status Maintenance location

3. Recording configuration checksums for maintenance comparison

A maintenance application can have the PLC read acyclic data set 2 and record the reported Flexi Soft checksums alongside an approved machine configuration record. A later read supports comparison after servicing or a configuration transfer. The 32-byte checksum data is accessed through the gateway’s PROFINET interface and provides a diagnostic comparison record, rather than an independent validation of the machine’s safety function.

Problem Solved

A recorded checksum comparison helps maintenance identify a changed Flexi Soft configuration reference, providing traceable diagnostic context when reviewing work performed on the machine.

Checksum record Configuration comparison Acyclic data
