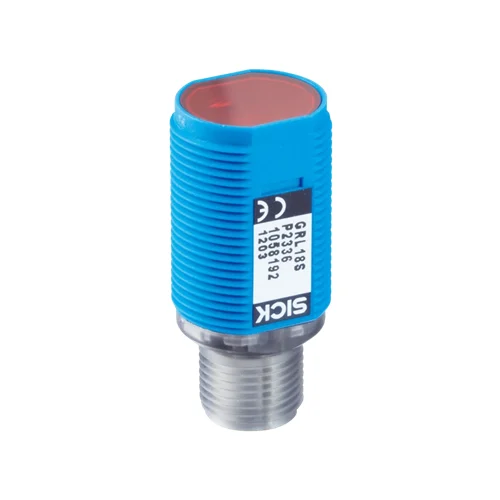

1. Counting separated cartons across a conveyor
A conveyor can place the sensor opposite a PL80A reflector and route separated opaque cartons through the beam. The polarized dual-lens configuration supplies complementary PNP transitions to an external counter, with the 0.06–6 m sensing range defining the stated reflector separation. Target coverage, spacing and controller sampling use the documented spot sizes, response below 500 µs and 1,000 Hz switching basis.
Problem Solved
Beam interruption gives an external counter discrete carton-passage events, helping track separated loads through a fixed optical station using complementary PNP signal states.
Carton counting
Complementary PNP
1,000 Hz
2. Registering a material edge for indexed feed
An indexed feeder can guide opaque strip material across the reflector beam so a cut edge or opening changes received light at a defined position. Fixed sensitivity removes a local adjustment step, while the two PNP output polarities let external indexing logic read the required event. The installed geometry keeps the reflector beyond the minimum distance and presents an opening large enough to clear the actual light spot.
Problem Solved
A defined light-to-dark transition provides external indexing logic with a material-edge reference, helping coordinate the next feed step with the strip’s presented position.
Material indexing
Fixed sensitivity
Light/dark outputs
3. Detecting retained occupancy at a transfer point
A transfer station can position the reflector beam across a handover location and monitor how long an opaque load interrupts it. External sequencing times the PNP state to distinguish a brief passage from sustained occupancy and holds the upstream release when a load remains. The M18 thread and supplied nuts support a fixed axial mounting position, with local LEDs assisting observation during commissioning.
Problem Solved
A sustained interruption gives external sequencing a transfer-occupancy interval, helping identify a retained load and coordinate upstream release with the availability of the handover point.
Transfer occupancy
External timing
M18 mounting
