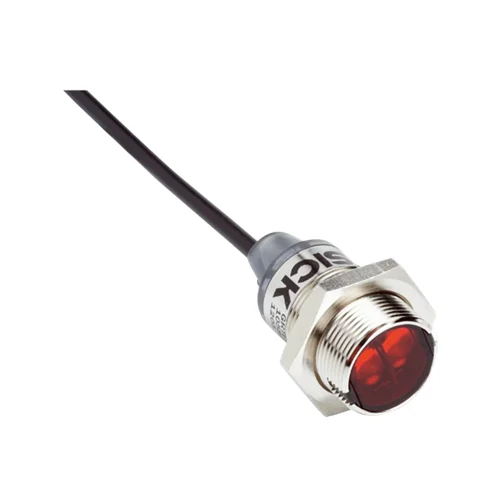

1. Checking whether a component occupies an assembly fixture
An assembly fixture can present an opaque component ahead of a farther backing surface and set the sensor’s range to the intended inspection position. The background-suppressed optical condition provides a presence input to external assembly logic. Setup uses representative component remission and the documented target-dependent ranges, while the two M18 nuts secure the selected sensing position.
Problem Solved
A background-suppressed component condition helps external inspection logic distinguish a loaded fixture from its farther backing surface before the next assembly step proceeds.
Fixture inspection
Background suppression
PNP outputs
2. Counting separated components on a feed track
A feed track can move separated opaque components through the red sensing spot and deliver the selected PNP transitions to an external counter. The visible spot and range potentiometer assist alignment to the intended passage point. Timing assessment includes the <500 µs response, 1,000 Hz rating, actual target spacing and the supply- and ambient-dependent output-current limit.
Problem Solved
Repeated target transitions supply external counting logic with component-passage events, helping track separated parts from one side of the track without an opposed receiver.
Component counting
1,000 Hz
Visible red spot
3. Monitoring material accumulation at a small transfer chute
A transfer chute can aim the sensor at a material-height threshold with the empty chute wall farther behind the adjusted zone. The selected complementary PNP condition reports accumulated opaque material to external feed-control logic. The controller evaluates persistence before holding upstream release, with representative material used to establish the working range and optical alignment during setup.
Problem Solved
A material-present condition at the selected chute threshold gives external feed control an accumulation reference, helping distinguish a normal passing item from sustained obstruction.
Chute accumulation
External feed hold
Complementary PNP
