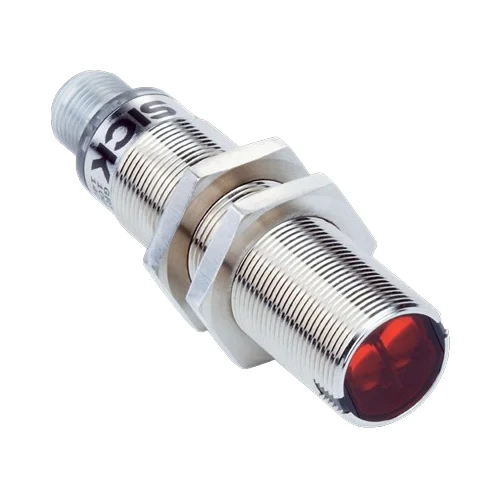

SICK 1066549 GRTE18-P2442 PNP Red-light Diffuse Sensor

USD 54.08

M18 metal energetic sensor with 10–400 mm reference-white sensing, 650 nm red PinPoint LED, complementary PNP outputs and M12 four-pin connection.

SKU SICK-1066549 Category
SICK GR18

SICK GRTE18-P2442 PNP Red-light Diffuse Sensor

BrandSICK
Model IdentifierGRTE18-P2442
Official Part Number1066549

Technical Overview

The SICK GRTE18-P2442 is an energetic photoelectric proximity sensor with axial optics in an M18 × 1 metal housing. It evaluates visible red light reflected from the target, with a 10–400 mm sensing range and 5–550 mm maximum range on 90% remission reference white. A 650 nm PinPoint LED produces a 9 mm spot at 400 mm, while a 270° potentiometer adjusts the sensing condition. Complementary PNP outputs provide light/dark conditions with response below 1,000 µs and a 500 Hz switching rating. An M12 four-pin male connector connects the IP67 nickel-plated brass/ABS housing. PMMA optics, local power/target indication and two metal mounting nuts support installation within the stated supply and load-dependent temperature limits.

M18 metal red-light energetic sensor with 10–400 mm reference-white sensing, complementary PNP outputs, local adjustment and M12 four-pin connection.

Key Features

  • Energetic reflected-light sensing with axial optics in an M18 × 1 metal housing
  • 10–400 mm sensing; 5–550 mm maximum on 90% remission reference white
  • 650 nm red PinPoint LED; Ø9 mm spot at 400 mm
  • 270° sensing-range potentiometer
  • Complementary PNP light/dark outputs
  • Response <1,000 µs with resistive load; 500 Hz at 1:1 light/dark ratio
  • M12 four-pin male connector; two metal mounting nuts, 24 mm across flats
  • 10–30 V DC; output current derates above 24 V or +49 °C
  • Green power LED; yellow target-present indication
  • Nickel-plated brass/ABS housing and PMMA optics; IP67

Set one-sided visible red reflected-light sensing with a local potentiometer and report the target condition through complementary PNP outputs.

Technical Specification Matrix

ParameterValue
Functional principleEnergetic photoelectric proximity sensing
Sensing range10–400 mm on 90% remission reference white, DIN 5033
Maximum sensing range5–550 mm on 90% remission reference white, DIN 5033
Light sourceVisible red PinPoint LED; wavelength 650 nm
Average LED service life100,000 h at +25 °C
AdjustmentSensing-range potentiometer, 270°
Switching outputComplementary PNP
Switching modeLight/dark switching
Output current≤100 mA; maximum 50 mA when supply >24 V or ambient >+49 °C
Response time<1,000 µs signal transit time with resistive load
Switching frequency500 Hz at 1:1 light/dark ratio
ConnectionM12 four-pin male connector
Power supply10–30 V DC; short-circuit-protected network, maximum 8 A
Ripple<5 Vpp; remain within supply-voltage tolerances
Current consumption30 mA
Circuit protectionSupply and input/output reverse-polarity protection; output overcurrent and short-circuit protection
Protection classIII
Housing designCylindrical; axial optical axis
Mounting threadM18 × 1
Housing materialNickel-plated brass and ABS
Optics materialPMMA plastic
Items suppliedTwo metal fastening nuts; 24 mm across flats
IP ratingIP67
IndicationGreen on: power on; yellow on: object present; yellow off: object not present
Operating temperature−25 to +55 °C at supply ≤24 V and output current <50 mA
Storage temperature−40 to +70 °C
EMCEN 60947-5-2
UL fileE348498
ECOLAB certificateListed in manufacturer datasheet
Light spot sizeØ9 mm at 400 mm
Additional spot sizesØ9 mm at 40 mm; Ø8 mm at 200 mm; Ø20 mm at 800 mm
Pin assignmentCD-084: 1 BN=L+; 2 WH=complementary Q; 3 BU=M; 4 BK=Q

Industrial Applications

1. Detecting an opaque article at a loading position

A loading fixture can aim the sensor toward the expected article surface and read a complementary PNP change when the target arrives. Energetic sensing evaluates visible red light reflected from one mounting side, and the potentiometer adapts the sensing condition. Commissioning uses actual surface remission, geometry and distance rather than assuming the reference-white range applies to every article.

Problem Solved

One-sided reflected-light detection provides external sequence logic with an article-presentation reference, helping coordinate a loading step without a receiver or reflector across the working area.

Article presentation Red-light sensing PNP outputs

2. Counting separated packages on a feed conveyor

A conveyor can move separated opaque packages through the sensing field and supply PNP transitions to external counting logic. The 500 Hz rating and response below 1,000 µs provide the timing basis. Setup verifies actual package reflectance, coverage and spacing at the installed distance while respecting the supply, output-load and ambient-temperature conditions.

Problem Solved

Distinct reflected-light transitions give external counting electronics package-passage events, helping track separated loads with a compact cylindrical sensing head positioned on one conveyor side.

Package count 500 Hz External counter

3. Timing a load waiting at a conveyor receiving point

A receiving point can position the sensor so a waiting opaque load reflects visible red light toward the sensing head. External control times the maintained target-present condition and compares it with the normal transfer interval. Complementary PNP states and the yellow object-present LED provide target context while the controller coordinates upstream release and receiving-point clearance.

Problem Solved

Timing a maintained target-present condition gives external transfer logic a basis for recognizing prolonged receiving-point occupancy and coordinating the next incoming load.

Occupancy timing Complementary PNP Local indication
