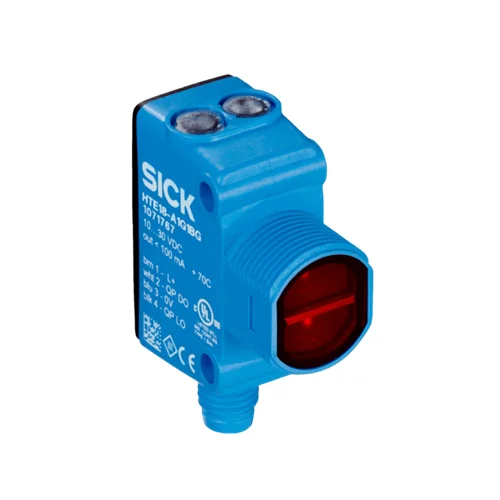

1. Counting small separated parts across a guide
A parts guide can position separated components through the laser path between sensor and reflector. The 2 mm spot specified at 2 m supports a defined interruption point, while complementary PNP outputs provide received-beam and interrupted-beam conditions. External counting logic evaluates transitions with part size, spacing and the installed optical distance assessed against the ≤0.5 ms response and 1,000 Hz rating.
Problem Solved
A localized laser interruption supplies external counting logic with part-passage events, helping distinguish separated small components when their presentation reliably covers the installed beam.
Small-part counting
2 mm at 2 m
PNP outputs
2. Monitoring opaque sheet continuity
A web-handling machine can arrange the sensor and reflector on opposite sides of an opaque sheet path. Material normally interrupts the returned laser beam; a missing section restores the received-light condition. External monitoring logic interprets the complementary PNP states, while setup establishes reflector alignment and material coverage using representative material within the documented reflector-specific range.
Problem Solved
The interrupted or restored beam provides an external material-continuity condition, helping recognize missing opaque sheet at a fixed location across the supported path.
Sheet continuity
Reflector path
Complementary signals
3. Comparing optical alignment during maintenance
A maintenance team can observe the signal-strength light bar while restoring the alignment between sensor and reflector after cleaning or mechanical adjustment. The received-beam and power LEDs provide separate local conditions alongside the bar. Comparing indication at the same reflector position supports the alignment task without treating the display as a numeric distance or calibrated contamination measurement.
Problem Solved
Visible received-light strength helps maintenance compare the optical arrangement at a repeatable reflector position, supporting alignment recovery alongside the separate beam and power indications.
Optical alignment
Signal-strength bar
Local indication
