$ 251.85
Enhance machine safety with the SICK i200-M0413 Lock. Durable power-to-release switch offering 2,600 N locking force and IP65 protection.

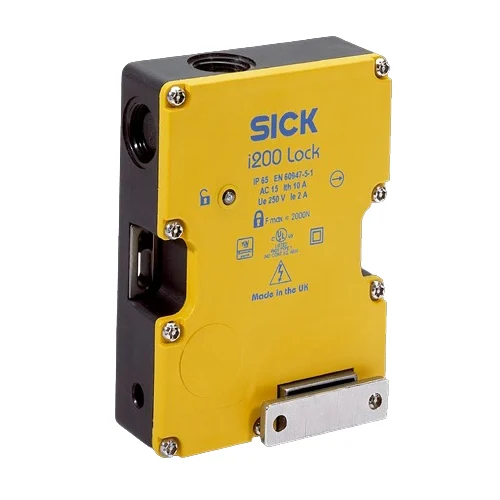

The SICK i200-M0413 Lock is an electro-mechanical safety switch engineered to secure machine doors and guard areas in demanding industrial settings. It operates on a power-to-release locking principle, ensuring machines remain safely enclosed until power is applied to unlock. With a maximum holding force of 2,600 N and a rugged glass-fiber reinforced polyester body, it offers dependable protection even in high-vibration environments. Its compact form and high ingress protection rating make it ideal for modern machinery that requires strict compliance with international safety standards.
Designed for durability and consistent performance, the i200-M0413 Lock provides precise mechanical interlocking combined with electrical safety feedback. Dual positive-action contacts enable accurate door and lock status monitoring, reducing risks of unintended access or system faults. It supports frequent operation cycles — up to 3,600 actuations per hour — making it suitable for automated production lines, robotic work cells, and industrial packaging systems. Clear LED indicators simplify troubleshooting, while the long service life of over one million switching operations ensures low maintenance and reliable safety throughout the machine’s lifecycle.
Why SICK i200-M0413 Lock?
The SICK i200-M0413 Lock stands out for its precision-built electro-mechanical locking and exceptional strength of 2,600 N, ensuring maximum reliability in industrial safety. Its compact, IP65-rated design, long service life, and intuitive LED diagnostics make it the perfect choice for engineers who demand safety, simplicity, and durability in one smart device.
What Problem Does It Solve?
The i200-M0413 Lock eliminates the risk of accidental machine access and unsafe restarts during operation or maintenance. It ensures doors remain securely locked until conditions are safe, preventing operator injury and equipment damage. This safety lock provides the peace of mind industries need to meet stringent compliance while maintaining productivity.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Electro-mechanical safety locking device | Ensures mechanical reliability with precise safety feedback |
| Locking Principle | Power-to-release mechanism | Keeps machinery locked until power is safely applied for release |
| Maximum Locking Force | 2,600 N (EN ISO 14119) | Provides strong door retention against accidental opening |
| Rated Voltage | 24 V DC (20.4 – 26.4 V DC) | Standard control voltage for easy integration into existing systems |
| Operating Current | 3 A @ 240 V AC / 24 V DC | Supports both AC and DC circuits for flexible use |
| Enclosure Rating | IP65 | Withstands dust and moisture for reliable use in harsh environments |
| Housing Material | Glass-fiber reinforced polyester | Durable, lightweight design resistant to mechanical stress |
| Locking Force Retention | ≤ 30 N | Smooth door operation without excessive mechanical load |
| Actuation Directions | 3 possible approaches | Flexible mounting and installation orientation |
| Actuation Frequency | ≤ 3,600 cycles per hour | Suitable for high-speed automated machinery |
| Mechanical Life | 1 million switching cycles | Long-term reliability with minimal maintenance |
| Status Display | Integrated LEDs | Clear visual diagnostics reduce downtime |
| Safety Contacts | 2 N/C for lock + 2 N/C and 1 N/O for door monitoring | Provides precise position and safety verification |
| Temperature Range | –20 °C to +60 °C | Reliable operation in a wide range of environments |
| Connection Type | 3 × M20 cable gland entry | Simplifies wiring and ensures secure connection |
| Compliance & Certification | TÜV, cULus, EU Declaration of Conformity | Meets international safety and quality standards |
Download SICK i200-M0413 Lock (6025115) Datasheet
| Commercial Data | Details |
|---|---|
| Weight | 0.554 kg |
| Country of Origin | Dominican Republic |
1. Automated Case Packer Guard Interlock
In modern packaging systems, moving arms and conveyors can pose serious risks when accessed during operation. The i200-M0413 Lock ensures guard doors remain securely closed until the packing cycle is complete. Its strong 2,600 N holding force keeps safety barriers locked against accidental openings, while the dual monitoring contacts communicate lock and door status to the controller. This prevents restarts when a door is not fully secured. Built for high-speed cycles and continuous motion, it helps packaging equipment maintain safety and uptime with minimal operator intervention.
2. Robotic Cell Door Safety in Assembly Lines
Robotic work cells require strict access control to protect operators during motion sequences. The i200-M0413 Lock provides a dependable barrier, holding gates closed until the system reaches a safe stop. Its power-to-release design eliminates unintended unlocking caused by vibration or electrical noise. LED indicators display lock status, making visual checks quick and intuitive. The compact build fits tightly into cell frames, and the long service life supports frequent use during production changes or maintenance shifts. This ensures that access doors meet safety requirements without slowing workflow.
3. Press-Brake and Metal Forming Machine Protection
Heavy-duty presses and forming equipment create dangerous forces that demand high-integrity door locking. The i200-M0413 Lock delivers the mechanical strength needed to keep safety gates closed under stress. Its precise switching contacts monitor both lock and door position, ensuring presses cannot cycle while a guard is open. The unit’s rugged polyester housing withstands oil, vibration, and impact typical in metalworking environments. Maintenance staff can quickly unlock it only when power is applied, reducing unintentional access and supporting compliance with industrial safety standards.
4. Conveyor and Inspection Door Guarding
Bulk handling and conveyor systems often operate in dusty, vibration-heavy conditions where safe access control is essential. The i200-M0413 Lock secures inspection hatches and maintenance doors so they stay closed during motion. Its IP65-rated enclosure keeps out dust and debris, and the multi-directional actuation simplifies installation on varying door designs. Operators benefit from clear mechanical feedback and consistent locking force that prevents door drift or bounce. By maintaining interlock reliability across harsh industrial environments, it minimizes downtime and safeguards personnel from hazardous moving components.
