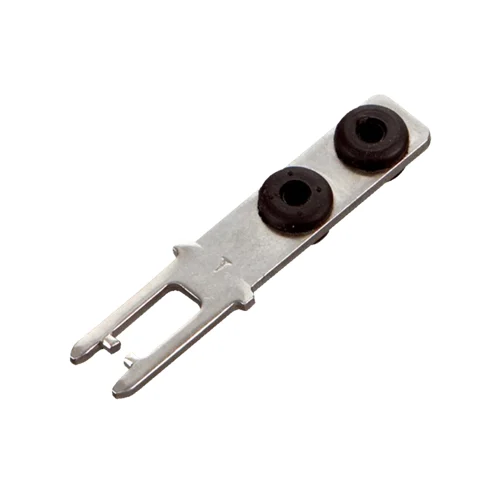

iE10-S2 is a straight rubber-mounted actuator for SICK i10 Lock safety switches, with minimum door radius ≥1,000 mm and two safety screws supplied.
The SICK iE10-S2 is a straight, rubber-mounted actuator accessory for i10 Lock electromechanical safety switches. It is supplied with two safety screws and requires a door radius of at least 1,000 mm; the actuator must be permanently attached to the moving guard and used with an additional guard stop.
Straight rubber-mounted actuator for i10 Lock, supplied with two safety screws and specified for door radius ≥1,000 mm.
Mount a straight rubber-mounted actuator on a compatible i10 Lock moving guard using the supplied safety screws and specified door-radius condition.
| Parameter | Value |
|---|---|
| Product type | Actuator accessory for electromechanical safety switches |
| Product version | iE-A |
| Compatibility | SICK i10 Lock |
| Design | Straight |
| Actuation option | Rubber-mounted |
| Minimum door radius | ≥1,000 mm |
| Items supplied | Actuator including two safety screws |
| Actuator length | 83 mm; partial mechanical size |
| Mounting-hole spacing | 20 mm |
| Plate thickness | 3 mm |
| Mounting on guard | Actuator permanently connected to the moving part so it cannot be disengaged; safety switch positively locked to fixed part |
| Guard stop | Fit an additional stop for the moving part of the protective device |
| RoHS manufacturer declaration | Listed by manufacturer |
| Rubber mounting drawing | 9 mm mounted section height; Ø4.4 mm bore shown; partial mechanical sizes |
