SICK 5311133 iE14-S1 Straight Catch and Retainer Set

USD 35.88

iE14-S1 is a straight rigid actuator catch and retainer set for SICK i14 Lock, supporting increased retaining force with minimum door radius ≥160 mm.

SKU SICK-5311133 Category
SICK Actuators And Bolts

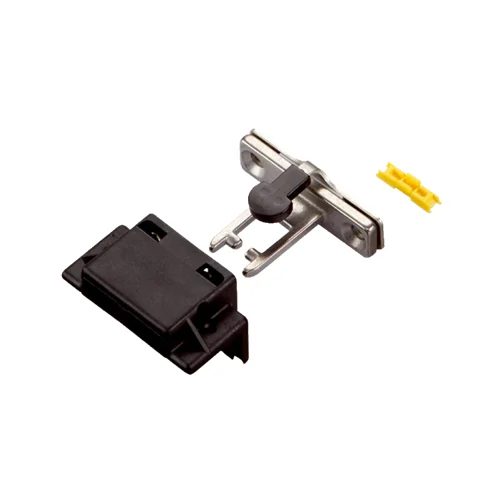

SICK iE14-S1 Straight Catch and Retainer Set

BrandSICK
Model IdentifieriE14-S1
Official Part Number5311133

Technical Overview

The SICK iE14-S1 is a straight, rigid actuator accessory for i14 Lock electromechanical safety switches. Its catch and retainer set increases retaining force, and the manufacturer specifies a minimum door radius of 160 mm. Separate actuator and retainer drawings support mechanical positioning of the set.

Straight rigid actuator catch and retainer set for i14 Lock, intended to increase retaining force with minimum door radius ≥160 mm.

Key Features

  • Actuator accessory for electromechanical safety switches
  • Manufacturer-listed compatibility: i14 Lock
  • Catch and retainer set for increased retaining force
  • Straight design; rigid actuation option
  • Minimum door radius ≥160 mm
  • Actuator mounting plate: 52 mm width and 40 mm hole spacing
  • Ø5.2 mm actuator-plate mounting holes shown
  • Separate retainer drawing: 52 mm width and 29 mm body height
  • RoHS manufacturer declaration listed

Provide the documented catch and retainer arrangement for a compatible i14 Lock installation, using the straight rigid actuator and specified door-radius condition.

Technical Specification Matrix

ParameterValue
Product typeActuator accessory for electromechanical safety switches
Product versioniE-A
DescriptionCatch and retainer set for increased retaining force
CompatibilitySICK i14 Lock
DesignStraight
Actuation optionRigid
Minimum door radius≥160 mm
Actuator-plate width52 mm; partial mechanical size
Actuator mounting-hole spacing40 mm
Actuator mounting holesØ5.2 mm
Retainer body sizes52 mm width; 29 mm height; partial mechanical sizes
RoHS manufacturer declarationListed by manufacturer
