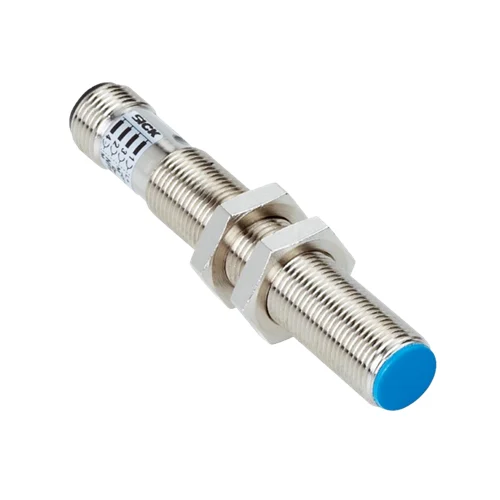

SICK 1017427 IM12-04NPS-ZUK PNP Non-Flush Inductive Sensor

USD 69.68

IM12-04NPS-ZUK combines 4 mm nominal sensing, non-flush M12 mounting, PNP normally-open output, 2,000 Hz operation and a 2 m three-wire cable.

SKU SICK-1017427 Category
SICK IM Standard

SICK IM12-04NPS-ZUK PNP Non-Flush Inductive Sensor

BrandSICK
Model IdentifierIM12-04NPS-ZUK
Official Part Number1017427

Technical Overview

The SICK IM12-04NPS-ZUK is a short-body M12 × 1 inductive proximity sensor for non-flush installation with 4 mm nominal sensing range. Its PNP normally-open output switches at 2,000 Hz through a 2 m three-wire cable, with PUR/PVC listed as the cable material and 0.25 mm² conductors. The 10–30 V DC device supplies up to 300 mA continuous output current, with ≤1.5 V drop at maximum current and an availability delay of ≤2 ms. Wire-break, short-circuit and power-up pulse protection are provided. A nickel-plated brass housing, plastic sensing face and IP67 protection support machine installation. The 35 mm housing has a 30 mm thread, with operation from −25 to +75 °C.

Non-flush short-body M12 inductive sensor with 4 mm nominal range, PNP normally-open output, 2,000 Hz switching and a 2 m three-wire cable.

Key Features

  • Short-body M12 × 1 inductive sensor for non-flush installation
  • 4 mm nominal sensing range; 2,000 Hz switching
  • PNP normally-open output; DC three-wire circuit
  • 2 m three-wire cable; PUR/PVC material as listed; 0.25 mm² conductors
  • 10–30 V DC; continuous output current ≤300 mA
  • ≤1.5 V voltage drop at maximum output current; availability delay ≤2 ms
  • Wire-break, short-circuit and power-up pulse protection
  • Nickel-plated brass housing, plastic sensing face and IP67 protection
  • 35 mm housing, 30 mm thread; 7 Nm maximum tightening torque
  • Operation −25 to +75 °C; reproducibility ≤1% of Sr under constant supply and ambient temperature

Detect metal at a non-flush M12 sensing face and send a PNP normally-open signal through the fixed three-wire cable, with ≤2 ms availability delay.

Technical Specification Matrix

ParameterValue
Functional principleInductive proximity sensing
Housing designMetric short-body; M12 × 1
InstallationNon-flush
Nominal sensing range Sn4 mm
Switching frequency2,000 Hz
Switching outputPNP
Output functionNormally open; DC three-wire
Connection2 m three-wire cable
Cable materialPUR/PVC, as listed by manufacturer
Conductor cross-section0.25 mm²
Wire assignmentCD-001: BN=L+; BK=normally-open output; BU=M
Power supply10–30 V DC
Ripple≤10% of supply voltage
Voltage drop≤1.5 V at maximum output current
Availability delay≤2 ms
Hysteresis1–10%
Reproducibility≤1% of Sr at constant supply voltage and ambient temperature
Temperature drift±10% of Sr
Continuous output current≤300 mA
Wire-break protectionYes
Short-circuit protectionYes
Power-up pulse protectionYes
EMCEN 60947-5-2
Shock resistance30 g, 11 ms
Vibration resistance10–55 Hz, 1 mm
Operating temperature−25 to +75 °C
Housing materialNickel-plated brass
Sensing face materialPlastic
Housing length35 mm
Thread length30 mm
Maximum tightening torque7 Nm
Mounting nuts in drawingTwo metal nuts; 17 mm across flats
IndicatorLED
IP ratingIP67; EN 60529
MTTFD2,519 years
DCavg0%
Installation clearancesManufacturer non-flush diagram: A=12; B=24; C=12; D=12; E=8; F=32 mm

Industrial Applications

1. Confirming a metal fixture target at its seated position

A fixture can present a metal target to the non-flush M12 sensor at a controlled seated gap. The PNP normally-open output reports entry into the inductive sensing field to external sequencing logic. Commissioning establishes the target geometry and gap within the documented nominal range, with the sensor fixed so the target condition corresponds to the intended mechanical position.

Problem Solved

A contactless inductive target condition gives external fixture sequencing a seated-position reference, helping distinguish the selected metal target from the open position without touching the mechanism.

Fixture position PNP normally open Inductive sensing

2. Counting separated metal lugs in a feed mechanism

A feed mechanism can pass separated metal lugs through the sensor field at a repeatable gap. The 2,000 Hz switching rating supports repeated target transitions for an external counter, with actual event timing established from lug spacing, width, speed and controller sampling. The PNP normally-open output and documented hysteresis provide the electrical state and switching-band context for the counting arrangement.

Problem Solved

Repeated metal-target transitions give external counting logic a lug-passage event, helping track feed cycles at a fixed observation point without contacting the moving targets.

Lug counting 2,000 Hz PNP transitions

3. Monitoring repeated return timing of a metal slide

A machine can timestamp the normally-open output transition each time a metal slide returns to the selected sensing location. External monitoring compares successive intervals with the expected process timing and flags a delayed or absent return. Stable mounting and the specified reproducibility under constant supply and ambient temperature support the repeated observation point while the controller performs the timing calculation.

Problem Solved

Repeated inductive position events provide external monitoring with a slide-return interval, helping identify a movement that falls outside the established process timing pattern.

Return interval External timing Repeatability
