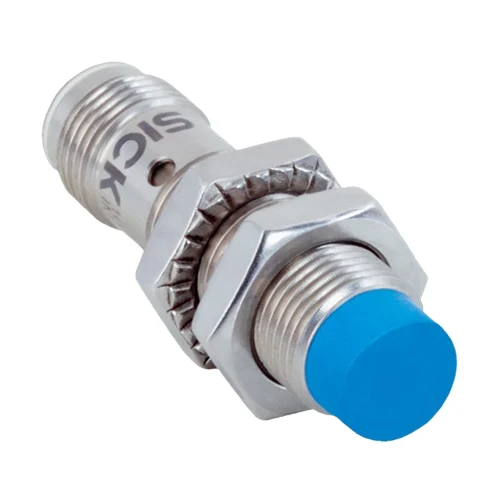

SICK 1072752 IMB12-08NNSVC0K NPN NO Inductive Sensor

Technical Overview

The SICK IMB12-08NNSVC0K is a short-body M12 ×1 inductive proximity sensor for non-flush installation. It provides an 8 mm nominal sensing range and 6.48 mm assured range, with an NPN normally open output switching at 2,000 Hz. The 10–30 V DC device uses an M12 four-pin male connector with gold-plated contacts. Its V2A stainless steel housing and LCP sensing face provide coolant-lubricant resistance and IP68/IP69K protection, with operation from −40 to +100 °C. A visual adjustment indicator assists positioning, and two toothed V2A mounting nuts are supplied. Short-circuit and power-up pulse protection support connection to external machine inputs.

Non-flush M12 NPN normally open inductive sensor with 8 mm nominal range, visual adjustment indication and M12 four-pin male connector with gold-plated contacts.

Key Features

Short-body M12 ×1 housing; non-flush installation

8 mm nominal sensing range; 6.48 mm assured sensing range

NPN normally open output; DC three-wire

2,000 Hz switching; continuous output current ≤200 mA

10–30 V DC; no-load current ≤10 mA

Short-circuit and power-up pulse protection

M12 four-pin male connector with gold-plated contacts

V2A stainless steel housing and LCP sensing face; coolant-lubricant resistance

Visual adjustment indication; two toothed V2A mounting nuts

IP68/IP69K; −40 to +100 °C operation

Technical Specification Matrix

Parameter	Value
Functional principle	Inductive proximity sensing
Housing design	short-body
Mounting thread	M12 ×1
Housing diameter	12 mm
Installation	Non-flush
Nominal sensing range Sn	8 mm
Assured sensing range Sa	6.48 mm
Switching output	NPN, normally open; DC three-wire
Switching frequency	2,000 Hz
Power supply	10–30 V DC
Ripple	≤10%
Voltage drop	≤2 V at maximum output current
Hysteresis	3–20%
Reproducibility	≤2% of Sr at constant supply voltage and ambient temperature
Temperature drift	±10% of Sr
Continuous output current	≤200 mA
No-load current	≤10 mA
Circuit protection	Short-circuit protection; power-up pulse protection
Connection	M12 four-pin male connector with gold-plated contacts
Conductor functions	CD-007: 1 BN=L+; 4 BK=NO output; 3 BU=M; 2=not connected
Housing material	Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material	LCP plastic
Housing length	45 mm
Thread length	23 mm
Tightening torque	Typical 20 Nm using non-toothed nut side; typical 32 Nm using toothed nut side
Items supplied	Two V2A stainless steel mounting nuts with locking teeth; 17 mm across flats
Special features	Coolant-lubricant resistance; visual adjustment indicator; temperature resistance
Adjustment indication	Manufacturer installation-aid diagram relates switching output Q and indication LED to Sr and Sa=0.81 Sn
Installation clearances	Manufacturer figure labels: A=12 mm; B=24 mm; C=12 mm; D=24 mm; E=16 mm; F=64 mm
Material reduction factors	Reference values, may vary: St37 steel 1; V2A/304 stainless approximately 0.67; aluminum approximately 0.42; copper approximately 0.35; brass approximately 0.42
Protection class	III
IP rating	IP68 to EN 60529; IP69K to ISO 20653:2013-03
Operating temperature	−40 to +100 °C
Shock and vibration resistance	100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10–55 Hz / 1 mm; 55–500 Hz / 60 g
EMC	EN 60947-5-2
UL file	E181493
MTTFD	1,971 years
DCavg	0%

Parameter

Value

Functional principle

Inductive proximity sensing

Housing design

short-body

Mounting thread

M12 ×1

Housing diameter

12 mm

Installation

Non-flush

Nominal sensing range Sn

8 mm

Assured sensing range Sa

6.48 mm

Switching output

NPN, normally open; DC three-wire

Switching frequency

2,000 Hz

Power supply

10–30 V DC

Ripple

≤10%

Voltage drop

≤2 V at maximum output current

Hysteresis

3–20%

Reproducibility

≤2% of Sr at constant supply voltage and ambient temperature

Temperature drift

±10% of Sr

Continuous output current

≤200 mA

No-load current

≤10 mA

Circuit protection

Short-circuit protection; power-up pulse protection

Connection

M12 four-pin male connector with gold-plated contacts

Conductor functions

CD-007: 1 BN=L+; 4 BK=NO output; 3 BU=M; 2=not connected

Housing material

Stainless steel V2A, DIN 1.4305 / AISI 303

Sensing face material

LCP plastic

Housing length

45 mm

Thread length

23 mm

Tightening torque

Typical 20 Nm using non-toothed nut side; typical 32 Nm using toothed nut side

Items supplied

Two V2A stainless steel mounting nuts with locking teeth; 17 mm across flats

Special features

Coolant-lubricant resistance; visual adjustment indicator; temperature resistance

Adjustment indication

Manufacturer installation-aid diagram relates switching output Q and indication LED to Sr and Sa=0.81 Sn

Installation clearances

Manufacturer figure labels: A=12 mm; B=24 mm; C=12 mm; D=24 mm; E=16 mm; F=64 mm

Material reduction factors

Reference values, may vary: St37 steel 1; V2A/304 stainless approximately 0.67; aluminum approximately 0.42; copper approximately 0.35; brass approximately 0.42

Protection class

III

IP rating

IP68 to EN 60529; IP69K to ISO 20653:2013-03

Operating temperature

−40 to +100 °C

Shock and vibration resistance

100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10–55 Hz / 1 mm; 55–500 Hz / 60 g

EMC

EN 60947-5-2

UL file

E181493

MTTFD

1,971 years

DCavg

Industrial Applications

1. Confirming a metal clamp position beside a machining fixture

A machining fixture can bring a metal clamp target toward the non-flush sensing face at its intended seated position. Coolant-lubricant resistance and the V2A/LCP construction support a sensing location near the process. External sequencing logic samples the NPN normally open signal after the clamp settles, accounting for actual target material, gap and the documented installation clearances.

Problem Solved

A metal clamp-position reference helps external sequencing logic distinguish a seated target from an intermediate position, supporting the next machine operation in a coolant-exposed fixture.

Clamp position Coolant resistance NPN NO

2. Counting separated metal features on a feed wheel

A feed wheel can carry separated metal features across the inductive field and send NPN state transitions to an external counter. The 2,000 Hz switching rating supplies the sensor frequency basis. Setup establishes feature width, separation and working gap so successive features produce distinct events, with external logic selecting the event edge appropriate to the normally open output.

Problem Solved

Distinct metal-feature transitions provide external counting logic with a feed-related event stream, helping track machine cycles without depending on an optical mark or surface color.

Metal-feature counting 2,000 Hz NPN NO

3. Checking a metal insert in an indexed assembly nest

An assembly nest can hold an expected metal insert within the commissioned sensing zone while nearby tooling remains outside the documented installation clearances. External inspection logic samples the NPN state during the stationary inspection window and interprets it according to the specified normally open output. Reproducibility conditions and material reduction factors provide the basis for evaluating repeated target presentations.

Problem Solved

An inductive insert-present reference helps external inspection logic identify an empty nest before assembly continues, using metal detection rather than printed appearance or target color.

Insert inspection Stationary sampling Material factors
