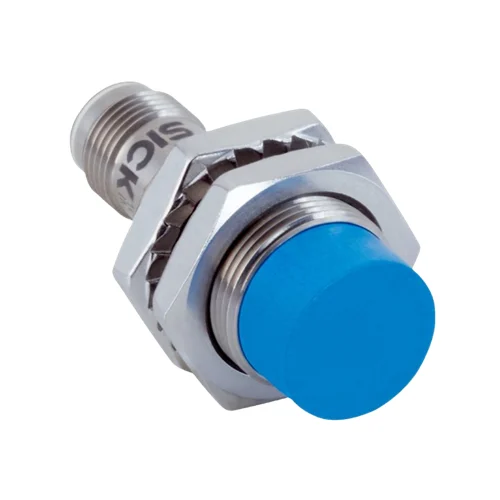

1. Confirming a clamp position beside a machining fixture
A machining fixture can present a metal clamp target to the non-flush sensing face at a controlled seated gap. Coolant-lubricant resistance and the V2A/LCP construction support a sensing location near the process. External sequencing logic reads the PNP normally-open state after the clamp settles, with setup accounting for mounting clearances, the assured range and target-material reduction factors.
Problem Solved
A clamp-position reference helps external sequencing logic distinguish a seated metal target from an open fixture location, using an inductive sensor designed for coolant and lubricant zones.
Clamp position
Coolant resistance
Non-flush mounting
2. Counting separated metal features on a moving carrier
A moving carrier can present separated metal features across the sensor face and send PNP output transitions to an external counter. The 1,000 Hz switching rating supports repeated transitions when feature width, spacing, gap and speed provide distinct detected and undetected intervals. Commissioning accounts for non-flush mounting clearances and the reduction factor of the actual target metal.
Problem Solved
Inductive switching gives external counting logic a passage reference for separated metal features, helping track carrier events through distinct target and gap states.
Metal-feature counting
PNP output
1,000 Hz
3. Comparing target approach states during fixture setup
During fixture setup, an IO-Link master can read the one-byte process data while a representative metal target approaches its normal seated position. Bit 0 indicates that Sr has been reached and bit 1 indicates that Sa has been reached. These discrete approach states complement the local visual adjustment indicator when assessing the installed target gap and repeatability.
Problem Solved
Separate Sr and Sa process bits help setup personnel distinguish approach states at the installed target position, supporting margin assessment without requiring a numeric distance value.
IO-Link V1.0
Sr/Sa process bits
Fixture setup
