SICK 1040893 IME08-04NNSZT0K NPN Inductive Proximity Sensor

USD 28.60

IME08-04NNSZT0K offers 4 mm nominal inductive sensing, NPN normally-open output, 4,000 Hz switching, non-flush M8 mounting and an M8 three-pin connector.

SKU SICK-1040893 Category
SICK IME

SICK IME08-04NNSZT0K NPN Inductive Proximity Sensor

BrandSICK
Model IdentifierIME08-04NNSZT0K
Official Part Number1040893

Technical Overview

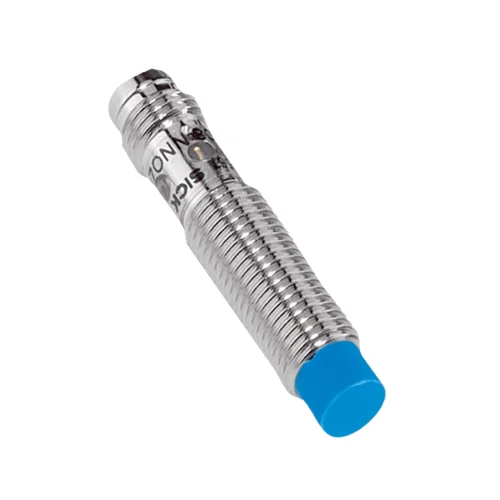

The SICK IME08-04NNSZT0K is a short-body M8 × 1 inductive proximity sensor for non-flush installation. It has a 4 mm nominal sensing range and 3.24 mm assured range, with reference reduction factors for different target metals. Its NPN normally-open output provides 4,000 Hz switching through an M8 three-pin connector. The 10–30 V DC device uses a nickel-plated brass housing and PA66 sensing face, with IP67 protection and operation from −25 to +75 °C. Short-circuit and power-up pulse protection are provided. The drawing gives a 41 mm axial length including the connector and a 21 mm thread, and two nickel-plated steel mounting nuts are supplied.

Non-flush M8 inductive sensor with 4 mm nominal range, NPN normally-open output, 4,000 Hz switching and an M8 three-pin connector.

Key Features

  • Short-body M8 × 1 inductive sensor; non-flush installation
  • 4 mm nominal sensing range; 3.24 mm assured sensing range
  • NPN normally-open output; DC three-wire wiring
  • 4,000 Hz switching frequency
  • M8 three-pin connector; 41 mm axial length including connector
  • 10–30 V DC; continuous output current ≤200 mA
  • Short-circuit and power-up pulse protection
  • Nickel-plated brass housing and PA66 sensing face
  • Two nickel-plated steel mounting nuts; 13 mm across flats
  • IP67; −25 to +75 °C operation

Use a non-contact NPN switching event from the M8 sensing face to reference metal-part position or repeated feature passage in external control logic.

Technical Specification Matrix

ParameterValue
Functional principleInductive proximity sensing
Housing designShort-body
Mounting threadM8 × 1
Housing diameterØ8 mm
InstallationNon-flush
Nominal sensing range Sn4 mm
Assured sensing range Sa3.24 mm
Switching outputNPN normally open
Electrical wiringDC three-wire
Switching frequency4,000 Hz
ConnectionM8 three-pin connector
Pin assignmentCD-002: 1 BN=L+; 4 BK=NO; 3 BU=M
Power supply10–30 V DC
Ripple≤10%
Voltage drop≤2 V at maximum Ia
Availability delay≤100 ms
Hysteresis5–15%
Reproducibility≤2% of Sr at supply voltage UB and constant ambient temperature Ta
Temperature drift±10% of Sr
Continuous output current≤200 mA
No-load current≤10 mA
Circuit protectionShort-circuit protection; power-up pulse protection
Housing materialNickel-plated brass
Sensing face materialPA66 plastic
Housing length41 mm including connector, as drawn
Thread length21 mm
Maximum tightening torque≤5 Nm
Items suppliedTwo nickel-plated steel mounting nuts; 13 mm across flats
Material reduction factorsReference values, may vary: St37 steel 1; stainless V2A/304 approximately 0.8; aluminum approximately 0.45; copper approximately 0.4; brass approximately 0.4
Installation diagram clearancesA=8 mm; B=18 mm; C=8 mm; D=12 mm; E=8 mm; F=32 mm; letters refer to manufacturer non-flush installation diagram
IndicationDisplay LED
IP ratingIP67 according to EN 60529
Operating temperature−25 to +75 °C
Shock and vibration resistance30 g, 11 ms; 10–55 Hz, 1 mm
EMCEN 60947-5-2
UL fileNRKH.E181493
MTTFD1,735 years
DCavg0%

Industrial Applications

1. Confirming a seated metal component in an assembly fixture

An assembly fixture can present a seated metal component to the non-flush sensing face and read the NPN normally-open state after the part settles. The M8 threaded housing and three-pin connection support installation at the reference point. Setup considers the 3.24 mm assured range, the actual target metal and the documented clearance diagram when positioning the sensor.

Problem Solved

A seated-target reference helps external inspection logic distinguish a presented metal component from an empty fixture location, supporting the next step of the assembly sequence.

Assembly presence Non-flush M8 NPN output

2. Counting separated metal tabs on a moving guide

A moving guide can carry separated metal tabs across the sensing face and deliver NPN transitions to an external counter. The 4,000 Hz switching rating supports repeated events when tab width, spacing, gap and transit speed provide distinct output intervals. Target-material reduction factors and the non-flush installation clearances guide setup for the actual moving hardware.

Problem Solved

Inductive transitions provide external counting logic with tab-passage events, helping track repeated metal features without mechanical contact between the sensing face and the moving guide.

Tab counting 4,000 Hz Inductive transitions

3. Recording repeated actuator arrivals with a metal flag

A machine actuator can bring a metal flag to a fixed end-position reference on each cycle. The NPN output supplies the arrival state to external timing logic, which records the interval between commanded motion and detected arrival. The 41 mm axial housing length including its connector supports mechanical planning, while the documented reproducibility conditions inform evaluation of the installed target gap.

Problem Solved

Repeated flag detection gives external timing logic a consistent position event for comparing actuator cycles, helping identify changes in arrival timing within the machine sequence.

Cycle timing Metal flag NPN position event
