1. Setting sensor parameters before machine installation

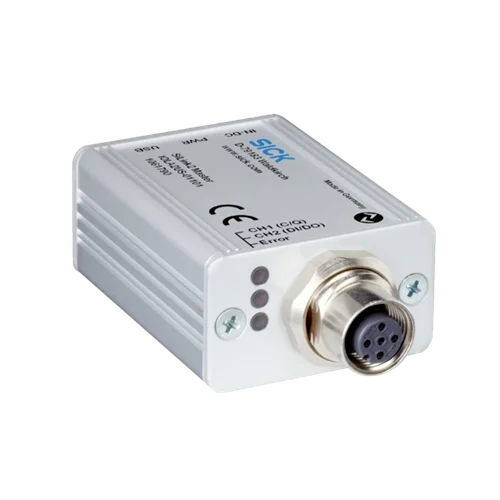

A commissioning bench can connect a compatible IO-Link sensor to the master’s M12 port and link the master to a Windows PC through the supplied USB cable. Suitable device software in SOPAS ET or an FDT-based program provides parameter access. The bench uses the supplied wall adapter when device demand exceeds the USB-derived 80 mA supply, including during startup.
Problem Solved
A PC connection gives commissioning direct parameter access to the compatible sensor, helping establish its intended settings before integrating it into the machine’s field wiring.
Bench parameterization
USB to IO-Link
Device software
2. Investigating an IO-Link connection that does not reach operation
During a service check, maintenance can observe the master’s CH1 indication while a compatible device is connected to the PC configuration setup. Slow green flashing indicates that no IO-Link connection is present, fast flashing indicates Preoperate, and steady green indicates operating data exchange. The separate red Error indication provides an observation of short-circuit or transmission faults during troubleshooting.
Problem Solved
Distinct link-mode and error indications help maintenance identify which communication condition is present, supporting investigation of a device connection that has not reached normal data exchange.
Link troubleshooting
CH1 mode indication
Error LED
3. Supplying a higher-demand device during a bench startup check
A bench test can use an IO-Link device whose startup or operating requirement exceeds the approximately 80 mA available through USB-derived device power. The supplied wall adapter connects to the master’s external-supply input and provides its documented 24 V DC supply. The engineer evaluates the device’s requirements and the supplied adapter rating while keeping the PC communication connection available for the test.
Problem Solved
The supplied external-power arrangement supports bench operation when a compatible device needs more current than USB-derived device power provides, helping assess startup alongside the PC connection.
External bench power
24 V adapter
Startup demand
