1. Checking a metal component at a fixture
An assembly fixture can bring a qualified metal component near the sensor at a defined inspection point. The 2 mm nominal and 1.62 mm assured ranges guide placement with flush installation. The NPN normally-open output supplies the local presence condition, while target-material reduction factors and the mounting clearances determine the final component position.
Problem Solved
A noncontact metal-presence signal lets the external controller identify an empty monitored fixture position before the next operation, without requiring a contact probe against the component.
Component presence
1.62 mm assured
NPN
2. Counting metal parts at a guided feeder
A guided feeder can present separated qualified metal parts across the sensing zone. An external counter reads the normally-open output transitions produced as each part passes. The 2,000 Hz switching frequency, 5–15% hysteresis and specified reproducibility guide spacing and event qualification, with the documented material reduction factors considered for the selected target.
Problem Solved
A part-passage event supports quantity tracking at the feeder exit without a counting lever touching the parts, while the external controller performs counting and regulates the feed sequence.
Metal-part counting
2,000 Hz
External counter
3. Referencing a metal flag on a small mechanism

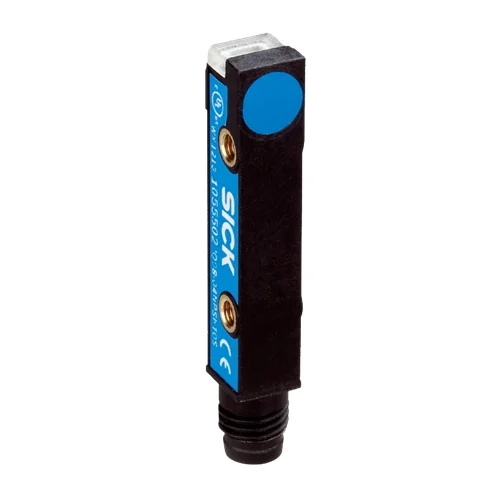

A moving mechanism can carry an intended metal flag past the sensing face at its reference station. Two M3 mounting holes at 20 mm pitch locate the rectangular body, while the PUR cable and AMP connector route its signal to the machine input. External sequencing reads the NPN normally-open transition with the documented flush mounting clearances maintained.
Problem Solved
A discrete metal-flag reference helps external sequencing coordinate a repeat mechanism cycle without a contact cam switch, using the established mounting position and ordinary switching input.
Flag reference
M3 mounting
AMP connection
