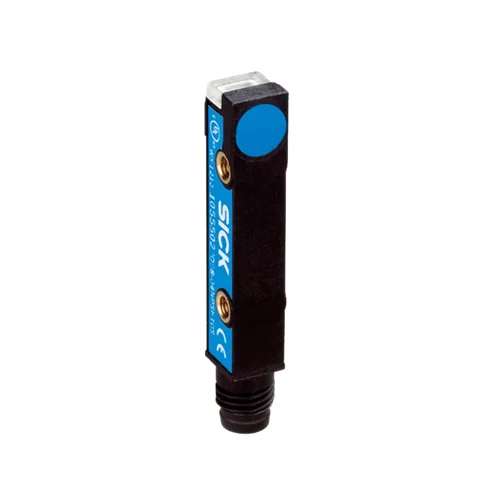

SICK 1055504 IQ08-04NNSKT0S NPN NO Inductive Sensor

USD 45.24

Non-flush rectangular inductive sensor with 4 mm nominal range, 3.24 mm assured range, NPN normally-open output, 2,000 Hz and M8 three-pin connection.

SKU SICK-1055504 Category
SICK IQY

SICK IQ08-04NNSKT0S NPN NO Inductive Sensor

BrandSICK
Model IdentifierIQ08-04NNSKT0S
Official Part Number1055504

Technical Overview

The SICK IQ08-04NNSKT0S is a rectangular inductive proximity sensor for non-flush mounting, with 4 mm nominal and 3.24 mm assured sensing range. Its NPN normally-open output provides a metal-target condition to external machine logic at up to 2,000 Hz, with documented material reduction factors. The 10–30 V DC device uses an M8 three-pin connector and provides short-circuit and power-up pulse protection. VISTAL plastic forms both the housing and sensing face, with IP67/IP68 enclosure ratings and −25 to +75 °C operation. M3 threaded mounting holes and a 270° LED indicator support installation in compact machine locations; maximum tightening torque is 1.5 Nm.

Non-flush rectangular inductive sensor with 4 mm nominal range, NPN normally-open output, 2,000 Hz switching and an M8 three-pin connector.

Key Features

  • Rectangular inductive sensor with non-flush installation
  • 4 mm nominal range; 3.24 mm assured range
  • NPN normally-open output; DC three-wire design
  • 2,000 Hz switching frequency
  • M8 three-pin connector; normally-open signal on pin 4
  • 10–30 V DC; ≤200 mA continuous current; 10 mA no-load current
  • Short-circuit and power-up pulse protection
  • VISTAL plastic housing and sensing face; IP67/IP68
  • M3 threaded mounting holes; 270° LED indicator; ≤1.5 Nm tightening torque
  • −25 to +75 °C operating temperature

Detect nearby metal features with a compact non-flush sensing face and provide a 2,000 Hz NPN normally-open signal to external machine logic.

Technical Specification Matrix

ParameterValue
Functional principleInductive proximity detection
Housing designRectangular
InstallationNon-flush
Nominal sensing range Sn4 mm
Assured sensing range Sa3.24 mm
Digital outputNPN normally open; DC three-wire
Switching frequency2,000 Hz
ConnectionM8 three-pin male connector
Pin assignment1 BN=brown L+; 4 BK=black NO output; 3 BU=blue M (CD-002)
Power supply10–30 V DC
Ripple≤10% of supply voltage
Voltage drop≤2 V at maximum output current
Time delay before availability≤100 ms
Hysteresis5–15%
Reproducibility≤2% of Sr at constant supply voltage and ambient temperature
Temperature drift±10% of Sr
EMCEN 60947-5-2
Continuous current≤200 mA
No-load current10 mA
Circuit protectionShort-circuit and power-up pulse protection
Shock resistance30 g, 11 ms
Vibration resistance10–55 Hz, 1 mm
Operating temperature−25 to +75 °C
Housing materialVISTAL plastic
Sensing faceVISTAL plastic
Maximum tightening torque≤1.5 Nm
Mounting holesM3 threaded; 20 mm center spacing
Indicator270° LED indicator
IP ratingIP67 / IP68; EN 60529 reference
UL fileNRKH.E348498
MTTFD1,730 years
DCavg0%
Mission time20 years
Metal reduction factorsReference values, may vary: V2A/304 stainless steel approximately 0.7; aluminum approximately 0.5; copper approximately 0.4; brass approximately 0.5
Installation clearancesA=4 mm; B=24 mm; C=8 mm; D=12 mm; E=20 mm; F=32 mm; G=8 mm, using manufacturer installation diagram
Dimensions L x W x H (cm)0.81 x 0.8 x 4.9

Industrial Applications

1. Counting separated metal tabs on a moving mechanism

A moving mechanism can guide separated metal tabs past the sensing face and send normally-open NPN transitions to an external counter. The 2,000 Hz switching rating informs the assessment of tab passage and gap timing. Commissioning sets the actual target gap within the applicable range, preserves non-flush installation clearances and accounts for the tab metal’s documented reduction factor.

Problem Solved

Successive metal-tab transitions give external counting logic discrete motion events, helping track repeated mechanical features without an optical mark or physical contact with the tabs.

Tab counter 2,000 Hz NPN NO

2. Confirming a metal slide at an end position

A compact slide can present a metal flag to the non-flush sensing face at its intended end position. External sequencing logic reads the normally-open NPN state after the slide settles. M3 threaded mounting holes secure the sensor, while setup verifies flag material, seated gap and surrounding-metal clearances using the assured range and manufacturer installation diagram.

Problem Solved

A repeatable metal-flag reference helps external sequencing logic distinguish the intended slide position from travel between positions, using a compact contactless sensing arrangement.

Slide position M3 mounting Assured range

3. Checking a metal insert in a nonmetallic carrier

A nonmetallic carrier can hold a metal insert at a repeatable position in front of the inductive face. External inspection logic evaluates the NPN normally-open condition while the carrier is stationary. The fixture preserves non-flush clearances and uses representative inserts during setup, accounting for material-specific range reductions rather than treating all metals as equivalent sensing targets.

Problem Solved

A metal-specific presence condition helps external inspection logic identify an empty insert location in a nonmetallic carrier before the assembly continues to its next operation.

Insert inspection Inductive sensing Material factors
