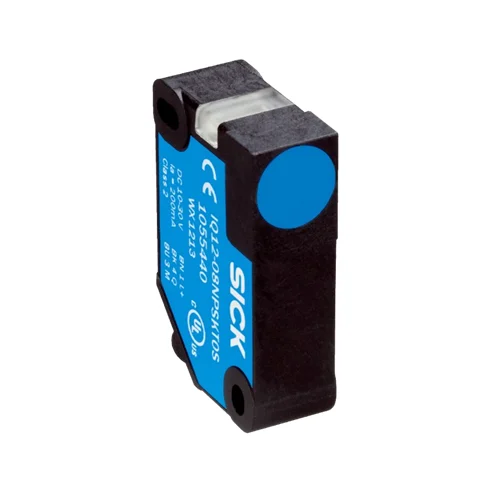

SICK 1055428 IQ12-04BPSKW2S PNP Flush Inductive Sensor

USD 54.08

IQ12-04BPSKW2S offers 4 mm nominal and 3.24 mm assured sensing, PNP normally-open output, 2,000 Hz switching, flush mounting and a 2 m PVC cable.

SKU SICK-1055428 Category
SICK IQB

SICK IQ12-04BPSKW2S PNP Flush Inductive Sensor

BrandSICK
Model IdentifierIQ12-04BPSKW2S
Official Part Number1055428

Technical Overview

The SICK IQ12-04BPSKW2S is a rectangular inductive proximity sensor for flush installation, with 4 mm nominal and 3.24 mm assured sensing range. Its PNP normally-open output switches at 2,000 Hz through a 2 m three-wire PVC cable with 0.25 mm² conductors. The 10–30 V DC device provides up to 200 mA continuous output current, a voltage drop of ≤2 V at maximum current and an availability delay of ≤100 ms. VISTAL forms both the housing and sensing face, with IP68 protection and a 270° LED indicator. Short-circuit and power-up pulse protection are provided. Operation spans −25 to +75 °C, and maximum mounting torque is ≤1 Nm.

Flush rectangular inductive sensor with 4 mm nominal range, PNP normally-open output, 2,000 Hz switching, VISTAL construction and 2 m PVC cable.

Key Features

  • Rectangular inductive sensor for flush installation
  • 4 mm nominal and 3.24 mm assured sensing range
  • PNP normally-open DC three-wire output; 2,000 Hz switching
  • 2 m three-wire PVC cable; 0.25 mm² conductors; Ø3.7 mm
  • 10–30 V DC; continuous output current ≤200 mA; 10 mA no-load current
  • Voltage drop ≤2 V at maximum output current; availability delay ≤100 ms
  • Short-circuit and power-up pulse protection
  • VISTAL housing and sensing face; IP68 to EN 60529
  • 270° LED indicator; maximum tightening torque ≤1 Nm
  • Operation −25 to +75 °C; 20-year mission time

Detect nearby metal through a flush rectangular VISTAL face and provide a PNP normally-open signal through the fixed three-wire cable.

Technical Specification Matrix

ParameterValue
Functional principleInductive proximity sensing
Housing designRectangular
InstallationFlush
Nominal sensing range Sn4 mm
Assured sensing range Sa3.24 mm
Switching frequency2,000 Hz
Switching outputPNP
Output functionNormally open; DC three-wire
Connection2 m three-wire PVC cable
Conductor cross-section0.25 mm²
Cable diameter3.7 mm
Wire assignmentCD-001: BN=L+; BK=normally-open output; BU=M
Power supply10–30 V DC
Ripple≤10% of supply voltage
Voltage drop≤2 V at maximum output current
Continuous output current≤200 mA
No-load current10 mA
Availability delay≤100 ms
Hysteresis5–15%
Reproducibility≤2% of Sr at constant supply voltage and ambient temperature
Temperature drift±10% of Sr
Short-circuit protectionYes
Power-up pulse protectionYes
EMCEN 60947-5-2
Shock resistance30 g, 11 ms
Vibration resistance10–55 Hz, 1 mm
Operating temperature−25 to +75 °C
Housing materialVISTAL
Sensing face materialVISTAL
IP ratingIP68; EN 60529
Maximum tightening torque≤1 Nm
IndicatorLED visible over 270°
Mounting detailsM3 threaded holes; 16 mm spacing on narrow side; Ø3.2 mm fixing openings in side view
MTTFD1,730 years
DCavg0%
Mission time20 years
Material reduction factorsReference values may vary: stainless steel V2A/304 0.7; aluminum 0.4; copper 0.3; brass 0.4
Installation clearancesManufacturer diagram: A=0; B=12; C=12; D=12; E=0; F=32; G=0 mm

Industrial Applications

1. Confirming a metal fixture target at its seated position

A fixture can present a metal target to the flush rectangular sensor at a controlled seated gap. The PNP normally-open output reports entry into the inductive sensing field to external sequencing logic. Commissioning establishes the target geometry and gap within the documented nominal range, with the sensor fixed so the target condition corresponds to the intended mechanical position.

Problem Solved

A contactless inductive target condition gives external fixture sequencing a seated-position reference, helping distinguish the selected metal target from the open position without touching the mechanism.

Fixture position PNP normally open Inductive sensing

2. Counting separated metal lugs in a feed mechanism

A feed mechanism can pass separated metal lugs through the sensor field at a repeatable gap. The 2,000 Hz switching rating supports repeated target transitions for an external counter, with actual event timing established from lug spacing, width, speed and controller sampling. The PNP normally-open output and documented hysteresis provide the electrical state and switching-band context for the counting arrangement.

Problem Solved

Repeated metal-target transitions give external counting logic a lug-passage event, helping track feed cycles at a fixed observation point without contacting the moving targets.

Lug counting 2,000 Hz PNP transitions

3. Monitoring repeated return timing of a metal slide

A machine can timestamp the normally-open output transition each time a metal slide returns to the selected sensing location. External monitoring compares successive intervals with the expected process timing and flags a delayed or absent return. Stable mounting and the specified reproducibility under constant supply and ambient temperature support the repeated observation point while the controller performs the timing calculation.

Problem Solved

Repeated inductive position events provide external monitoring with a slide-return interval, helping identify a movement that falls outside the established process timing pattern.

Return interval External timing Repeatability
