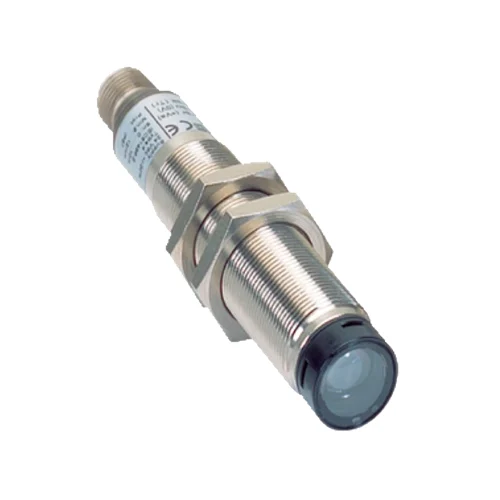

| Product function | Receiver for L4000 safety photoelectric switch system; separate matching optical component and UE401 required |
| Matching optical component | L40S-21MA1A sender, part 6027339 |
| Protective-system requirement | Safety operation only with UE401-A0010 evaluation device, part 6027343; sensor is not a standalone protective switching system |
| Scanning range | 16 m stated in exact-model datasheet; manual gives axial range 0–10 m typical, 0–16 m maximum |
| Number of beams | One |
| Detection capability | 30 mm |
| Optical axis | Axial |
| Response time | 0.4 ms sensor response plus UE401 test-device response for the protective system |
| Directional receiver response | Manual typical LOW→HIGH 0.4 ms; HIGH→LOW 0.6 ms |
| Safety type | Type 4, IEC 61496-1; only in conjunction with UE401 |
| Safety integrity level | SIL 3, IEC 61508; only in conjunction with UE401 |
| Safety category | Category 4, EN ISO 13849; only in conjunction with UE401 |
| Performance level | PL e, EN ISO 13849; only in conjunction with UE401 |
| PFHD | 2.9 × 10⁻¹⁰ per hour, EN ISO 13849; only in conjunction with UE401 |
| Mission time | 20 years, EN ISO 13849; only in conjunction with UE401 |
| Connection | Straight M12 four-pin male connector |
| Pin assignment | 1=24 V DC; 2=not connected; 3=0 V; 4=Q receiver test output |
| Power supply | 24 V DC nominal, 19.2–28.8 V DC |
| Current consumption | ≤30 mA |
| Protection class | III, IEC 61140 |
| Housing design | Cylindrical, M18 × 1 |
| Axial length | 97.7 mm including straight connector, as drawn |
| Housing material | Nickel-plated brass |
| Front screen material | Glass |
| Optical aperture / receiving angle | ±2.5° / ±2.5° |
| Optics diameter | 12 mm typical in manual |
| IP rating | IP67, EN 60529 |
| Operating temperature | −20 to +55 °C |
| Storage temperature | −25 to +75 °C |
| Relative humidity | 15–95%, non-condensing |
| Vibration resistance | 5 g, 10–55 Hz; IEC 60068-2-6 |
| Shock resistance | 10 g, 16 ms; IEC 60068-2-27 |
| Restart control | Restart interlock required in the L4000 system or machine; beam interruption does not establish continued occupancy |
| Detection limits | Transparent objects are not detected; beam system does not provide protection against thrown parts or emitted radiation |
| Functional inspection | Daily or before work begins: opaque test piece at least 30 mm diameter interrupts each beam at the documented test positions; receiver LED off and UE401 stop condition required |
| Receiver output Q | HIGH=beam interrupted; LOW=beam unobstructed; test output to UE401, not a standalone dual-OSSD interface |
| Receiver indication | LED illuminated when beam received; flashes with poor alignment or dirty lenses; off during complete beam interruption |
| Physical Weight (kg) | 0.067 |
