SICK 5309087 LL3-DT01-05 5 m Proximity Fiber-optic Cable

USD 125.84

LL3-DT01-05 provides a 5 m cuttable PMMA coaxial fiber with axial M3 stainless head, PE sheath, 15 mm bend radius and compatible-amplifier operation.

SKU SICK-5309087 Category
SICK LL3

SICK LL3-DT01-05 5 m Proximity Fiber-optic Cable

BrandSICK
Model IdentifierLL3-DT01-05
Official Part Number5309087

Technical Overview

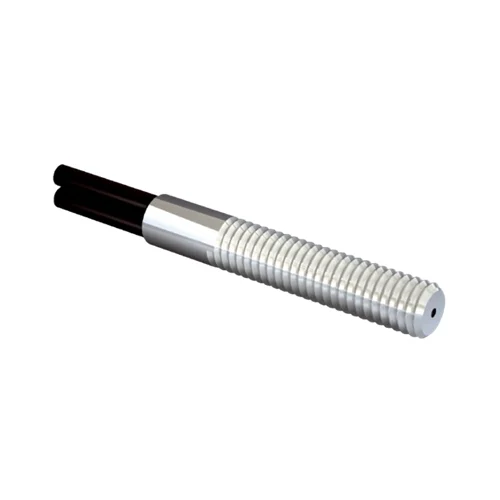

The SICK LL3-DT01-05 is a 5 m cuttable proximity-system fiber-optic cable for GLL70, WLL80, WLL180 and GLL170(T) amplifiers. Its axial M3 stainless steel head uses coaxial PMMA fibers with a PE sheath; required adapter sleeves, M3 hardware and an FC fiber cutter are supplied.

5 m cuttable PMMA proximity fiber with axial M3 stainless head, PE sheath and adapter sleeves for the listed SICK fiber amplifiers.

Key Features

  • Passive proximity-system fiber cable for GLL70, WLL80, WLL180 and GLL170(T)
  • 5,000 mm fiber length; can be shortened with supplied FC cutter
  • Axial stainless steel threaded sleeve; M3 × 0.5 head thread
  • Coaxial PMMA fibers: sender Ø0.5 mm; receiver 9 × Ø0.25 mm
  • PE sheath; 1.3 mm fiber-connection outside diameter; 15 mm bending radius
  • 60° dispersion; no integrated lens; tip adapters compatible
  • No infrared compatibility; no dynamic robotics flexibility
  • Required BF-WLL160-13 adapter sleeves and mounting hardware supplied
  • Amplifier-dependent red-light sensing ranges; −40 to +70 °C operation

Route a cuttable 5 m optical connection from a compatible amplifier to an axial M3 proximity head, using the supplied mounting and adapter hardware.

Technical Specification Matrix

ParameterValue
Product rolePassive fiber-optic cable for a separate amplifier
Functional principleProximity system
Compatible amplifiersGLL70; WLL80; WLL180; GLL170(T)
Application classStandard
Sensing rangeDepends on selected fiber-optic amplifier and operating mode
Minimum object diameter0.015 mm under optimum measuring distance and setting
Head designAxial threaded stainless steel sleeve; M3 × 0.5
Dispersion angle60°
Integrated lensNot provided
Tip adapter compatibilitySupported
Infrared compatibilityNot supported
Cuttable fiberYes
Adapter end sleevesRequired
Items suppliedMounting hardware; two M3 hexagonal nuts; two washers; adapter sleeves including BF-WLL160-13 (1.3 mm); FC fiber cutter 5304141
Fiber length5,000 mm
Bending radius15 mm
Dynamic robotics flexibilityNot supported
Fiber-connection outside diameter1.3 mm
Fiber arrangementCoaxial; sender Ø0.5 mm, receiver 9 × Ø0.25 mm
Fiber materialPMMA
Sheath materialPolyethylene (PE)
Head length18 mm in drawing; 13 mm threaded portion
Operating temperature−40 to +70 °C
WLL180T red-light sensing ranges16 µs: 30 mm; 70 µs: 100 mm; 250 µs: 150 mm; 2 ms: 300 mm; 8 ms: 500 mm
GLL170 sensing range250 µs: 60 mm
GLL170T sensing ranges50 µs: 50 mm; 250 µs: 90 mm
Physical Weight (kg)0.027
