SICK 2073502 LL3-LM38450 450 mm Through-beam Fiber Cable

USD 233.48

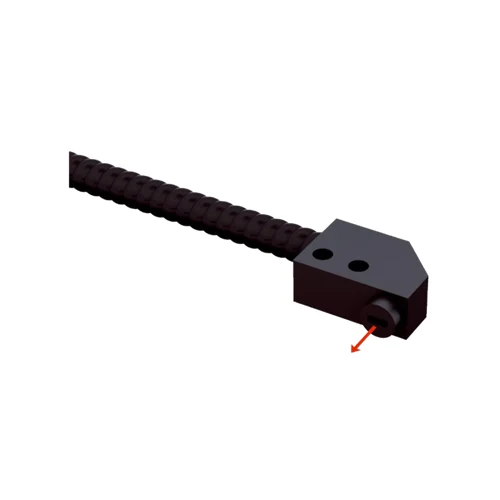

450 mm glass multi-fiber cable for GLL70, WLL80, WLL180 and GLL170(T), with flat 90° head, radial light emission and a 20 mm bend radius.

SKU SICK-2073502 Category
SICK LL3

SICK LL3-LM38450 450 mm Through-beam Fiber Cable

BrandSICK
Model IdentifierLL3-LM38450
Official Part Number2073502

Technical Overview

The SICK LL3-LM38450 is a 450 mm glass multi-fiber cable for through-beam optical arrangements using a separate compatible amplifier. Its flat head redirects light by 90° for radial emission, with a 60° dispersion angle, PVC sheath and 20 mm bend radius. Compatible amplifiers include GLL70, WLL80, WLL180 and GLL170(T).

450 mm glass multi-fiber cable with flat 90° head, radial emission, 60° dispersion and amplifier-dependent through-beam sensing range.

Key Features

  • Through-beam optical cable requiring a separate compatible amplifier
  • 450 mm glass multi-fiber construction; PVC sheath
  • Flat head with 90° deflection; radial light emission
  • Compatible with GLL70, WLL80, WLL180 and GLL170(T)
  • 60° dispersion; listed minimum object diameter 0.5 mm
  • No integrated lens or tip-adapter compatibility; no adapter end sleeves required
  • Infrared-compatible, with possible reduced sensing range
  • 20 mm bending radius; Ø2.2 mm optical cable connection
  • No dynamic robotic flexibility; −10 to +60 °C operation
  • Mode-dependent visible-red sensing ranges documented for WLL180T, GLL170 and GLL170T

Route light through a flat 90° fiber head for an opposed through-beam arrangement, using the documented amplifier and operating mode to establish sensing range.

Technical Specification Matrix

ParameterValue
Product typePassive fiber-optic cable
Optical arrangementThrough-beam system with separate sending and receiving optical paths
Compatible amplifiersGLL70; WLL80; WLL180; GLL170(T)
Head designFlat; 90° deflection; radial light emission
Application classStandard
Maximum sensing rangeDepends on the fiber-optic amplifier used
Listed minimum object diameter0.5 mm
Angle of dispersion60°
Integrated lensNo
Tip-adapter compatibilityNo
Infrared compatibilityYes; reduced sensing ranges possible with an infrared amplifier
Adapter end sleevesNot required
Fiber length450 mm
Bending radius20 mm
Dynamic flexibility for roboticsNo
Optical cable connection diameter2.2 mm
Fiber arrangement and coreMulti-fiber
Fiber materialGlass
Sheath materialPVC
Operating temperature−10 to +60 °C
WLL180T sensing rangesVisible red light: 16 µs mode=140 mm; 70 µs=490 mm; 250 µs/2 ms/8 ms=750 mm
GLL170 sensing range250 µs mode=270 mm
GLL170T sensing ranges50 µs mode=462 mm; 250 µs mode=764 mm
Physical Weight (kg)0.056
