$ 1,888.76
High-accuracy 10 mm detection with the SICK MLG10A-0290R10801 light grid. Fast, reliable object measurement for advanced industrial automation.

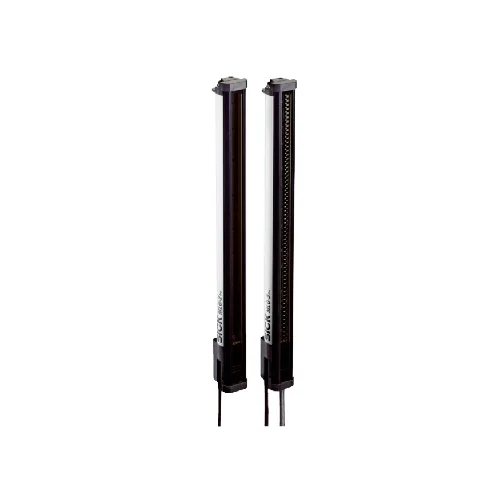

The SICK MLG10A-0290R10801 Automation Light Grid is designed for applications that demand accurate detection of small objects and consistent measurement across changing industrial conditions. This model offers a 290 mm detection height paired with a fine 10 mm beam structure, allowing it to identify small parts with impressive reliability. Its rapid response time, strong immunity to intense ambient light, and durable IP-rated construction make it ideal for automated logistics, assembly, and material handling tasks where consistent detection performance is essential. Integrated IO-Link support ensures smooth communication within modern control systems and helps streamline setup and diagnostics.
Built on the advanced MLG-2 Pro platform, the MLG10A-0290R10801 enhances detection accuracy in processes involving object counting, dimensional checks, or identifying gaps and openings. Its cross-beam capability improves stability when monitoring complex or uneven shapes, while teach-in functions simplify alignment and configuration during commissioning. The combination of infrared LED technology and a robust aluminum housing helps maintain dependable performance in dusty areas or facilities exposed to shifting lighting conditions. With fast signal output and multiple configurable channels, the device supports higher throughput and reduces downtime in production or packaging lines, making it a reliable tool for demanding automation environments.
The SICK MLG10A-0290R10801 is chosen for environments where precision isn’t optional. Its finely spaced 10 mm beams and advanced detection logic allow it to “see” small or irregular objects that standard sensors often miss. Engineered for speed, stability, and harsh factory conditions, it elevates automation performance by delivering consistent, high-resolution detection in fast-moving industrial processes.
This model eliminates blind spots in automated lines where traditional sensors struggle with varying shapes, tight spaces, or inconsistent lighting. It ensures dependable detection, precise height or width measurements, and accurate object positioning even in dusty, bright, or rapidly changing environments. By minimizing false triggers and missed objects, it keeps production stable, reduces rework, and supports higher throughput.
| Feature | Details | Benefit |
|---|---|---|
| Device Version | Pro variant with extended functionality | Enhanced flexibility for advanced automation tasks |
| Sensor Principle | Sender/receiver infrared LED system | Stable, long-range detection in varied environments |
| Minimum Detectable Object | 10 mm (high accuracy mode) / 14 mm (standard) | Captures small parts and fine edges with dependable precision |
| Beam Separation | 10 mm | Consistent measurement across the full detection height |
| Detection Height | 290 mm | Suitable for mid-size objects and dimension checks |
| Number of Beams | 30 beams | Dense beam structure for reliable profiling |
| Operating Range | Up to 8.5 m, max range 12 m | Supports long-distance setups and wide conveyor widths |
| Response Time | 3.6 ms | Fast detection for high-speed lines and rapid sorting |
| Output Type | 4× push-pull outputs (PNP/NPN selectable) | Seamless integration into mixed control architectures |
| Teach Functions | Standard teach-in, multiple detection modes | Quick commissioning and simplified alignment |
| Operating Modes | Standard mode, transparent mode | Handles varied object materials including shiny or irregular surfaces |
| Cross-Beam & Blanking | Supported | Stable detection for irregular shapes and open patterns |
| Ambient Light Immunity | Up to 150,000 lx direct | Reliable operation in sunlight or bright factory areas |
| Enclosure Rating | IP65 / IP67 | Resistant to dust, water spray, and harsh factory conditions |
| Supply Voltage | 19.2–28.8 V DC | Compatible with standard industrial power systems |
| Communication | IO-Link V1.1, COM3 speed | Access to diagnostic data and smart automation features |
| Shock & Vibration Resistance | Built to withstand industrial vibration and impacts | Ensures long service life in demanding setups |
| Housing Material | Durable aluminum | High mechanical stability and long-term endurance |
| Temperature Range | –30°C to +55°C operating | Suitable for cold storage or warm production areas |
| Included Items | Sender unit, receiver unit, QuickFix brackets, quick-start guide | Everything needed for immediate installation |
Download SICK MLG10A-0290R10801 (1214016) Datasheet
| Commercial Data | Details |
|---|---|
| EAN Number | 4047084443558 |
| Weight | 1.334kg |
| Country of Origin | Germany |
In busy warehouse environments, pallets often arrive with uneven stacking or slight product protrusions that can cause issues in automated storage systems. By installing the MLG10A-0290R10801 vertically at an inspection point, each pallet’s side profile and height can be assessed instantly. The tight 10 mm beam spacing detects even minor overhangs, helping operators identify loads that might snag conveyors or racking. Its fast response ensures it keeps up with moving pallets, while the stable infrared beam design remains reliable despite dust or shifting warehouse lighting. This improves pallet consistency, reduces downstream blockages, and maintains a smoother material-flow process.
Electronics manufacturers handle compact parts that vary slightly in shape or reflectivity, making them difficult for ordinary sensors to detect. The MLG10A-0290R10801 is positioned across the conveyor to monitor passing components, using its fine 10 mm beam grid to pick up small changes in object width. The rapid response time ensures accurate counting and sorting even during peak throughput. Because its beam system handles reflective surfaces well, shiny metal contacts or housings are detected consistently. This improves reliability in pick-and-place operations, prevents missing-part conditions, and maintains a stable assembly rhythm across fast-paced production shifts.
Transparent bottles can be challenging for many detection systems due to light refraction and minimal contrast. The MLG10A-0290R10801 addresses this by operating in a mode that handles low-contrast objects effectively, allowing the system to identify bottle outlines and necks even when they are fully transparent. As containers pass into the filling station, the light grid verifies correct presence and positioning before the fill head activates. Its high immunity to bright factory lighting keeps performance stable throughout long production runs. This reduces misfills, prevents spillage, and supports consistent bottle handling in high-speed beverage packaging lines.
Metal blanks often include holes or slots that need precise alignment before entering stamping equipment. By mounting the MLG10A-0290R10801 horizontally, the pattern of beam interruptions reveals the location of these openings. Its rugged housing withstands vibration, oil mist, and temperature changes common in stamping areas. The fast, high-resolution detection allows the control system to determine whether each sheet is positioned correctly before the press cycle begins. This minimizes tool wear, prevents misaligned stamping operations, and helps maintain a steady flow of accurately processed parts in demanding industrial fabrication environments.
| Category | Model Name | Part Number | Compatibility / Benefit |
|---|---|---|---|
| Sensor/Actuator Cable (5-pin) | YF2A15-050UB5M2A15 | 2096010 | Connects sender/receiver units to 5-pin control interfaces. |
| Sensor/Actuator Cable (8-pin, Flying Leads) | DOL-1208-G05MF | 6020664 | Supports 8-pin wiring setups and flexible cabinet routing. |
| Adapter Cable (5-pin to 8-pin) | SBO-02F12-SM1 | 6053172 | Integrates mixed 5-pin and 8-pin devices into the same PLC system. |
| Ethernet / IO-Link Cable | YM2D24-050PN1MRJA4 | 2106184 | Enables IO-Link or PROFINET data transfer to IO-Link masters. |
| IO-Link Network Device | SIG350-0004AP100 | 6076871 | Extends I/O capacity for multiple sensors or light grids. |
| IO-Link Network Device | SIG350-0006AP100 | 6076924 | Streamlines connections and consolidates sensor data. |
| IO-Link Network Device | SIG350-0005AP100 | 6076923 | Enhances diagnostics and communication flow in digital automation. |
