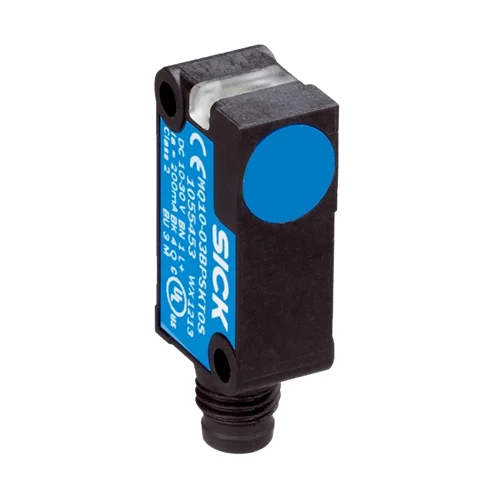

1. Confirming a magnet-equipped carriage at its docking position
A carriage can carry a MAG-3010-B magnet facing the fixed sensor when it reaches a docking position. The NPN normally-open output gives external sequencing logic an arrival reference. Setup uses non-magnetic mounting material for the documented range and establishes a repeatable gap within the assured sensing distance, accounting for alignment, hysteresis and the actual mechanical travel.
Problem Solved
A contactless magnet-position condition helps external sequencing logic distinguish a docked carriage from travel outside the sensing region before coordinating the next transfer operation.
Carriage docking
Defined magnet target
NPN normally open
2. Counting magnet-equipped carriers past a fixed station
Separated carriers can each carry a defined magnet past a fixed sensing location. Entry and departure of the magnetic target change the NPN normally-open state for an external counter. Commissioning checks carrier spacing and speed against the 1,000 Hz rating, while magnet selection, gap and non-magnetic mounting material establish the documented detection arrangement.
Problem Solved
Separated magnetic-target transitions give external counting logic carrier-passage events, helping track movement at one station without physical contact between the sensor and carrier.
Carrier counting
1,000 Hz
Magnetic target
3. Monitoring an extended dwell at a magnet-equipped fixture
A fixture can bring its attached magnet opposite the sensor during a normal holding stage. External timing logic measures how long the NPN normally-open condition persists and compares it with the expected process interval. Commissioning establishes the magnet gap in non-magnetic mounting material and accounts for hysteresis so the intended holding position gives a consistent occupancy reference.
Problem Solved
A maintained magnetic-target condition gives external timing logic a dwell reference, helping identify a fixture that remains at the sensing position beyond its expected process interval.
Fixture dwell
External timer
Contactless occupancy
