Discover the SICK MRA-G130-105D3 wire draw mechanism for precise 5m linear measurement, durable design, and reliable performance in automation systems.

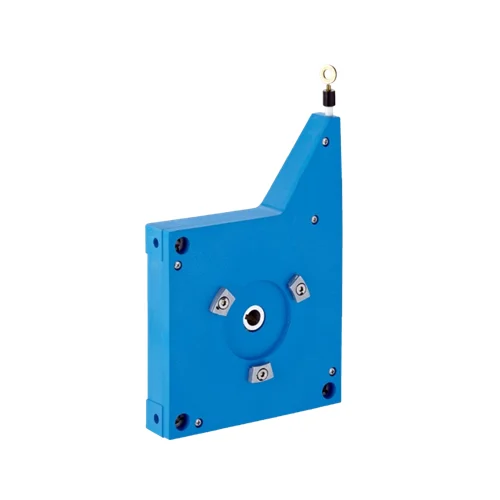

The SICK MRA-G130-105D3 Wire Draw Mechanism is designed to provide accurate linear measurement through a smooth and durable cable retraction system. It converts motion into precise rotary data when used with compatible wire-draw encoders, offering a measurement range up to 5 meters. Built with a lightweight Noryl plastic housing and high-flexibility stainless-steel wire, it delivers consistent results with excellent repeatability. Its compact form and rugged construction make it well suited for industrial automation, motion control, and equipment positioning tasks requiring stable, long-term performance.
The MRA-G130-105D3 ensures dependable measurement accuracy even in demanding work environments. It features a smooth spring return mechanism that maintains constant tension for consistent readings, reducing measurement errors in moving machinery or robotic setups. Its robust build and typical service life of one million cycles minimize maintenance needs, enhancing productivity. The efficient design allows seamless integration with encoders in assembly lines, lifting systems, or automated platforms, providing a reliable and cost-effective way to track distance, position, and displacement in industrial applications.
Why SICK MRA-G130-105D3?
The SICK MRA-G130-105D3 stands out for its precision and compact design, offering engineers a seamless way to capture accurate linear measurements up to 5 m. It’s built for reliability, combining smooth spring-driven motion with durable stainless-steel wire—making it a trusted choice for automation systems where space, accuracy, and longevity truly matter.
What Problem Does It Solve?
This mechanism solves the challenge of converting unpredictable linear movement into stable, high-resolution feedback for industrial systems. It eliminates mechanical drift, ensures repeatable positioning, and simplifies integration with encoders—empowering factories, robots, and machines to achieve precise motion control without bulky, maintenance-heavy measurement setups.
| Feature | Details | Benefit |
|---|---|---|
| Measuring Range | 0 m to 5 m | Enables accurate long-distance linear measurement for industrial motion control. |
| Reproducibility | ≤ 0.2 mm | Ensures precise and repeatable results, reducing measurement deviation. |
| Linearity | ≤ ±2 mm | Provides stable measurement accuracy across the full measuring range. |
| Hysteresis | ≤ 0.4 mm | Minimizes signal lag for consistent performance during back-and-forth motion. |
| Material – Measuring Wire | Flexible stranded stainless steel (1.4401 V4A) | Corrosion-resistant and highly durable for demanding industrial environments. |
| Material – Housing | High-strength Noryl plastic | Lightweight yet robust construction, ideal for compact machinery. |
| Wire Diameter | 0.55 mm | Optimized for durability and smooth retraction performance. |
| Wire Acceleration | Up to 4 m/s² | Handles fast linear motion applications without affecting precision. |
| Operating Speed | Up to 3 m/s | Supports high-speed motion systems and fast encoder response. |
| Resolution Formula | Wire length per revolution ÷ encoder steps per revolution | Enables custom resolution setup based on encoder pairing. |
| Spring Return Force | 4.5 – 7 N | Provides stable wire tension to maintain accuracy and prevent slack. |
| Wire Draw per Revolution | 385 mm | Offers smooth, consistent displacement for encoder feedback. |
| Operating Temperature | –30 °C to +70 °C | Performs reliably in both hot and cold industrial environments. |
| Enclosure Rating | IP50 | Protects internal components from dust, ensuring long operational life. |
| Service Life | Typical 1,000,000 cycles | Delivers long-term reliability with minimal maintenance. |
Download SICK MRA-G130-105D3 (5322779) Datasheet
| Commercial Data | Details |
|---|---|
| Weight | 964 g |
| Country of Origin | Germany |
In lifting platforms and automated dock systems, precise height detection is essential for operator safety and mechanical synchronization. The MRA-G130-105D3 accurately measures the lift travel distance by translating vertical motion into encoder signals. Its spring-driven tension prevents slack and maintains constant wire pressure, avoiding uneven lift movement. The corrosion-resistant steel wire ensures dependable readings even in dusty or humid conditions, resulting in smoother platform stops and reduced stress on hydraulic components.
When a mobile crane’s boom extends or retracts, maintaining positional awareness is vital for balance and load safety. The MRA-G130-105D3 offers a compact, retractable solution that fits easily within the boom structure, measuring extension lengths up to 5 meters. Its vibration-resistant housing withstands outdoor and mobile conditions, while its linear accuracy enables consistent feedback for stability control. This ensures that the crane’s automation system always knows the exact boom position, enhancing operational precision and safety on site.
In modern warehouse automation, conveyor or stacker units must align precisely for pick-and-place operations. The MRA-G130-105D3 can track linear movement along travel rails with minimal installation space. The spring-loaded wire mechanism adapts to motion without signal drift, while its high repeatability ensures that each stop position remains accurate. By improving travel measurement reliability, it supports faster cycles, better inventory placement, and reduced downtime in logistics operations.
In forming presses and automated hydraulic systems, precise stroke feedback determines product consistency and tool protection. The MRA-G130-105D3 monitors cylinder travel, providing continuous feedback through encoder rotation. Its fine reproducibility and stable tension system prevent measurement errors from vibration or fluid pressure variation. The durable wire and compact build allow integration even in oily or high-temperature conditions, enabling accurate stroke control, reduced scrap rates, and improved overall press efficiency.
