1. Confirming a pneumatic actuator at its working position

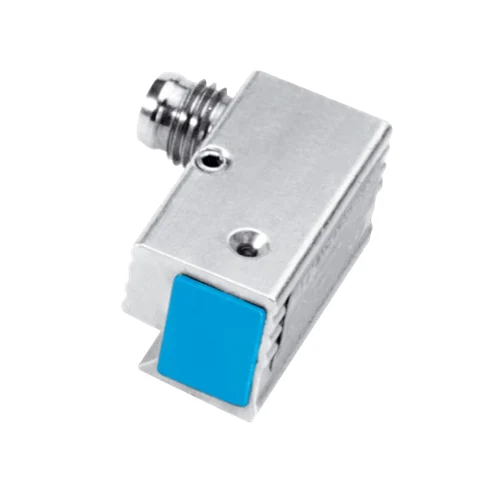

A pneumatic station can mount the sensor on a compatible dovetail-groove cylinder so the piston magnet passes the front sensing face at the required working position. External sequencing logic reads the PNP normally-open signal before requesting the next process step. Commissioning establishes the switching location with the actual cylinder magnet and checks the local LED alongside the controller input.
Problem Solved
A piston-position event gives external sequencing logic a working-position condition, helping coordinate the next machine operation after the actuator reaches the monitored location.
Piston position
Dovetail groove
PNP sequence input
2. Counting repeated cylinder strokes
A cycling actuator can pass its piston magnet through the fixed sensing position once per monitored stroke. The 5,000 Hz switching rating supports distinct output transitions within the sensor limit, and an external counter records those events. Setup checks the actual magnetic target, stroke trajectory and controller input timing so each passage produces one intended count.
Problem Solved
Repeated piston passages provide external counting logic with stroke events, helping track actuator usage or production cycles from a fixed non-contact sensing point on the cylinder.
Stroke counting
5,000 Hz
Magnetic passage
3. Measuring dwell at a cylinder position
A cylinder-driven fixture can hold its piston near the selected sensing point during a process dwell. External machine logic times the PNP normally-open state to compare actual position occupancy with the required sequence interval. Setup establishes a stable switching location using the actual piston magnet and considers the documented reproducibility under constant supply voltage and ambient temperature.
Problem Solved
The position signal gives external timing logic a dwell reference, helping distinguish a brief piston passage from a maintained actuator position during a timed machine operation.
Position dwell
External timer
Repeatability
