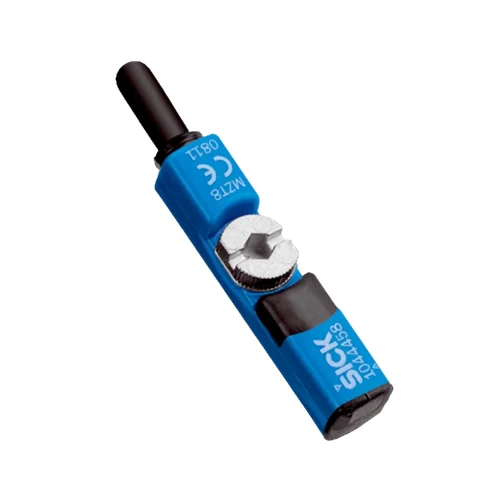

SICK 1069393 MZT8-03VPO-KRDS14 PNP NC T-Slot Cylinder Sensor

USD 36.14

MZT8-03VPO-KRDS14 provides PNP normally-closed cylinder sensing, 20 ms off-delay pulse stretching and a 0.5 m PUR lead with M8 three-pin plug.

SKU SICK-1069393 Category
SICK MZT8

SICK MZT8-03VPO-KRDS14 PNP NC T-Slot Cylinder Sensor

BrandSICK
Model IdentifierMZT8-03VPO-KRDS14
Official Part Number1069393

Technical Overview

The SICK MZT8-03VPO-KRDS14 is a magnetic cylinder sensor for T-slots, with a PNP normally-closed output and 20 ms pulse stretching as an off delay. Its 24 mm PA12 housing carries a local LED, and a fixing screw secures the sensor at a typical 0.4 Nm tightening torque. The axial 0.5 m three-wire PUR lead terminates in an M8 three-pin plug with a knurled nut and supports documented drag-chain use. Typical response sensitivity is 2.6 mT and typical overrun distance is 3 mm. The 10–30 V DC sensor has IP68 protection and −30 to +80 °C ambient operation; pulse stretching must be included in external sequence timing.

T-slot magnetic cylinder sensor with PNP normally-closed output, 20 ms off-delay pulse stretching and 0.5 m PUR cable with M8 three-pin plug.

Key Features

  • Magnetic cylinder sensing for T-slots; 24 mm housing
  • PNP normally-closed output; DC three-wire connection
  • 20 ms pulse stretching as an off delay
  • 1,000 Hz switching specification; pulse stretching affects event timing
  • Typical 2.6 mT response sensitivity; typical 3 mm overrun distance
  • 0.5 m axial PUR lead with M8 three-pin plug and knurled nut
  • Drag-chain use; specified bending, torsion and movement conditions
  • Local LED; SW2.0 fixing screw, typical tightening torque 0.4 Nm
  • 10–30 V DC; continuous output current ≤200 mA; reverse-polarity, short-circuit and power-up pulse protection
  • PA12 housing; IP68; −30 to +80 °C ambient operation

Retain a brief cylinder-position event through the documented 20 ms off delay while providing a PNP normally-closed signal to external control.

Technical Specification Matrix

ParameterValue
Functional principleMagnetic cylinder-position sensing
Cylinder typeT-slot
Cylinder types with adapterProfile, tie-rod, round-body and dovetail-groove cylinders; SMC CDQ2 and ECDQ2 rails; appropriate adapter required
Housing length24 mm
Switching outputPNP; normally closed; DC three-wire
Switching frequency1,000 Hz; account separately for 20 ms off-delay pulse stretching
Pulse stretching20 ms, off delay
Power supply10–30 V DC
Current consumption10 mA without load
Voltage drop≤2.2 V
Continuous output current≤200 mA
Protection classIII
Availability delay25 ms
Response sensitivityTypical 2.6 mT
Overrun distanceTypical 3 mm; distance traveled by the piston magnet while the switching signal is output
HysteresisTypical 0.7 mT
Reproducibility≤0.1 mT with constant supply voltage and ambient temperature
Circuit protectionReverse-polarity, short-circuit and power-up pulse protection
IndicationStatus LED
Connection0.5 m three-wire PUR cable with M8 three-pin plug and knurled nut; drag-chain use
Cable outletAxial
Conductor cross-section0.14 mm²
Cable diameterØ2.9 mm
Bending radiusFixed installation >3 × cable diameter; flexible use >10 × cable diameter
Torsion±270° per 10 cm; >2,000,000 torsion cycles
Drag-chain cycles>2,000,000
Drag-chain movement conditionsMaximum traverse speed 3.3 m/s with 5 m horizontal traverse; maximum acceleration 5 m/s²
Pin assignmentCD-004: 1 BN=L+; 4 BK=NC; 3 BU=M
Housing materialPA12 plastic
IP ratingIP68 to EN 60529; manufacturer footnote references IP67/IP68
Steam-cleaner restriction100 bar; temperature <80 °C; minimum distance 150 mm
Operating temperature−30 to +80 °C
Shock resistance30 g, 11 ms
Vibration resistance10–55 Hz, 1 mm
EMCEN 60947-5-2
MountingInsert in T-slot; SW2.0 fixing screw; typical tightening torque 0.4 Nm
Sensor-element position2.25 mm for the 3 mm short-overrun version, as shown in manufacturer drawing
UL fileNRKH.E181493 and NRKH7.E181493
MTTFD2,289 years
DCavg0%
Mission time20 years

Industrial Applications

1. Confirming cylinder arrival before a process step

A pneumatic transfer can place the sensor in the cylinder T-slot at its intended arrival position. External sequencing reads the PNP normally-closed state and interprets the documented output polarity before permitting the next ordinary process action. Commissioning checks piston-magnet response and sensor placement, and includes the 20 ms off delay in departure and return timing.

Problem Solved

A cylinder-position condition helps external sequencing distinguish arrival from travel outside the selected sensing location, using the installed magnetic switching point as its process reference.

Cylinder arrival T-slot mounting PNP NC

2. Capturing a short piston-position event in an external input

A short cylinder movement can take its magnet through the selected sensing point briefly. The documented 20 ms off-delay pulse stretching extends the switching event for the connected external input. Commissioning checks the normally-closed waveform, input sampling, movement speed and spacing between events so the stretched signal remains useful to the external process logic.

Problem Solved

Off-delay pulse stretching gives external input logic a longer event interval to observe, helping capture a brief magnetic-position passage when the actual waveform and sampling are compatible.

20 ms off delay Brief event capture External sampling

3. Monitoring cylinder cycle time from repeated position events

An external monitoring routine can timestamp repeated transitions as the cylinder returns to the same sensor position during successive cycles. It compares those intervals with its normal process timing to identify a delayed or missing return. The installation keeps sensor mounting fixed and accounts for normally-closed polarity, magnetic reproducibility and the built-in pulse-stretching delay.

Problem Solved

Repeated position-event intervals give external monitoring a cycle-time reference, helping distinguish a delayed or missing return from the established movement pattern of the cylinder.

Cycle timing Repeated position event Return monitoring
