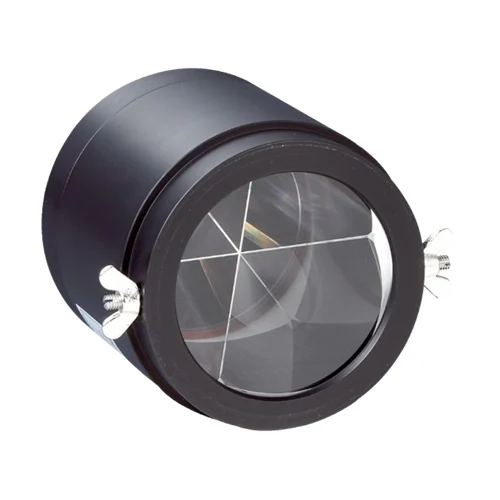

SICK 1000136 OP60-20 20 m Focus Glass Reflector

USD 1,466.14

Single-triple glass reflector with 20 m optical focus, anodized aluminum construction, M10 screw mounting and −20 to +65 °C operating range.

SKU SICK-1000136 Category
SICK Reflectors And Optics

SICK OP60-20 20 m Focus Glass Reflector

BrandSICK
Model IdentifierOP60-20
Official Part Number1000136

Technical Overview

The SICK OP60-20 is a special single-triple glass reflector with a specified 20 m optical focus. Its anodized aluminum and glass construction uses screw-on mounting with an M10 thread; the drawing shows an 82 mm body diameter and projecting adjustment hardware.

Single-triple glass reflector with 20 m optical focus, anodized aluminum body and M10 screw-on mounting.

Key Features

  • Special single-triple glass reflector
  • Specified optical focus: 20 m
  • Anodized aluminum and glass construction
  • Screw-on mounting with M10 thread
  • 82 mm body diameter; 60 mm front aperture in drawing
  • 80 mm overall axial extent in drawing
  • 100 mm overall transverse extent including projecting hardware
  • Operating temperature −20 to +65 °C

Return light in a compatible optical installation using a single-triple glass reflector with 20 m focus and an M10 screw-on mounting interface.

Technical Specification Matrix

ParameterValue
Product groupReflectors and optics
Product versionSpecial reflector
Optical designSingle-triple glass reflector
Optical focus20 m; focus specification, not a guaranteed sensor-system sensing range
MaterialAnodized aluminum / glass
MountingScrew-on; M10 thread
Body diameter82 mm
Front aperture diameter60 mm in manufacturer drawing
Rear body diameter77.7 mm in manufacturer drawing
Partial axial drawing values13 mm front section; 54.5 mm rear section
Operating temperature−20 to +65 °C
Dimensions L x W x H (cm)8 x 8.2 x 10
