USD 28.60

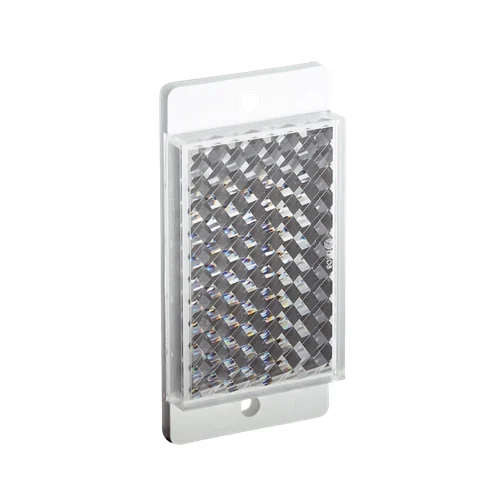

P32 is a rectangular PMMA/ABS standard reflector with screw mounting, two Ø3.6 mm fixing holes at 55.5 mm pitch and −20 to +65 °C operation.
The SICK P32 is a rectangular standard reflector with screw mounting and PMMA/ABS construction. Its two Ø3.6 mm fixing holes have 55.5 mm center spacing, and the specified ambient operating range is −20 to +65 °C.
Rectangular PMMA/ABS standard reflector with screw mounting, two fixing holes and −20 to +65 °C operation.
Mount a rectangular optical return target using two screw-fixing points in a PMMA/ABS reflector body.
| Parameter | Value |
|---|---|
| Product type | Standard reflector |
| Shape | Rectangular |
| Mounting | Screw-on |
| Material | PMMA/ABS |
| Fixing holes | Two Ø3.6 mm holes |
| Mounting-hole pitch | 55.5 mm center to center |
| Reflector insert width | 28 mm in manufacturer drawing |
| Operating temperature | −20 to +65 °C |
| RoHS | Manufacturer declaration listed |
