USD 31.72
Rectangular plastic reflector with nominal 40 × 60 mm face, M3 countersunk screw mounting, two Ø3.6 mm holes and −20 to +140 °C operation.

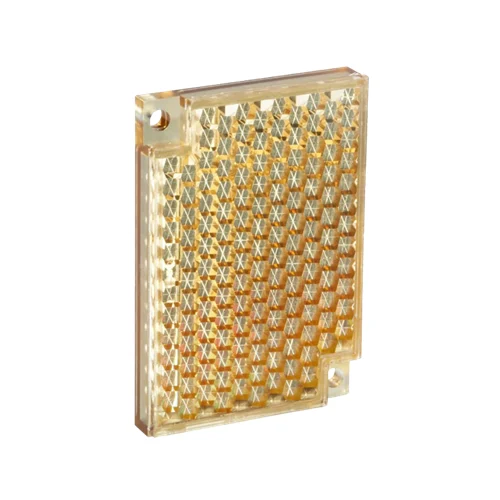

The SICK PL40B-CHEM is a chemically resistant plastic special reflector for use with a separate optical sensor. Its nominal 40 × 60 mm format uses M3 countersunk screw mounting, with two Ø3.6 mm mounting holes and an operating temperature range of −20 to +140 °C.
Rectangular chemically resistant plastic reflector with M3 countersunk screw mounting and −20 to +140 °C operation.
Provide a chemically resistant screw-mounted reflector for a compatible optical sensor, with a documented operating range up to +140 °C.
| Parameter | Value |
|---|---|
| Product segment | Reflectors and optics |
| Product type | Passive reflector |
| Product version | Special reflector |
| Description | Rectangular; M3 screw connection; countersunk screw head; chemically resistant |
| Mounting | Screw-on; two mounting holes |
| Material | Plastic |
| Nominal face format | 40 × 60 mm |
| Mounting-hole diameter | 3.6 mm |
| Hole-center offsets | 34 mm horizontal; 51.8 mm vertical |
| Operating temperature | −20 to +140 °C |
| Manufacturer declaration | RoHS manufacturer declaration listed |
| Dimensions L x W x H (cm) | 0.83 × 4.03 × 5.97 |
