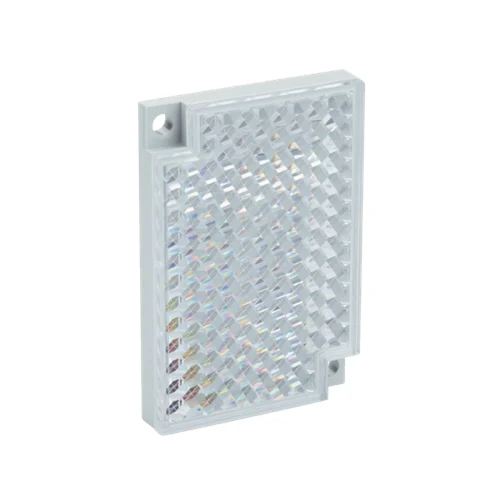

SICK 5320134 PL40B M3 Rectangular Reflector

USD 24.70

Rectangular PMMA/ABS reflector with nominal 40 × 60 mm face, M3 countersunk screw mounting, two Ø3.6 mm holes and −20 to +65 °C operation.

SKU SICK-5320134 Category
SICK Reflectors And Optics

SICK PL40B M3 Rectangular Reflector

BrandSICK
Model IdentifierPL40B
Official Part Number5320134

Technical Overview

The SICK PL40B is a standard rectangular PMMA/ABS reflector for use with a separate optical sensor. Its nominal 40 × 60 mm format uses M3 countersunk screw mounting, with two Ø3.6 mm mounting holes and an operating temperature range of −20 to +65 °C.

Rectangular PMMA/ABS reflector with M3 countersunk screw mounting and −20 to +65 °C operation.

Key Features

  • Standard rectangular reflector
  • PMMA/ABS construction
  • Nominal 40 × 60 mm face format
  • Screw-on mounting for a separate optical sensing system
  • M3 screw connection with countersunk screw heads
  • Two Ø3.6 mm mounting holes
  • Drawing hole-center offsets: 34 mm horizontal and 51.8 mm vertical
  • −20 to +65 °C ambient operating range

Mount a rectangular reflector with countersunk M3 screws to provide a fixed optical return surface for a compatible sensor.

Technical Specification Matrix

ParameterValue
Product segmentReflectors and optics
Product typePassive reflector
Product versionStandard reflector
DescriptionRectangular; M3 screw connection; countersunk screw head
MountingScrew-on; two mounting holes
MaterialPMMA/ABS
Nominal face format40 × 60 mm
Mounting-hole diameter3.6 mm
Hole-center offsets34 mm horizontal; 51.8 mm vertical
Operating temperature−20 to +65 °C
Manufacturer declarationRoHS manufacturer declaration listed
Dimensions L x W x H (cm)0.83 × 4.03 × 5.97
