SICK 1052627 TIM310-1030000 Indoor Field-Evaluation LiDAR

USD 1,668.16

TIM310-1030000 scans 270° at 15 Hz, with 0.05–4 m working range, three PNP field outputs, 16 field triples, Micro USB setup and D-sub HD connection.

SKU SICK-1052627 Category
SICK TiM

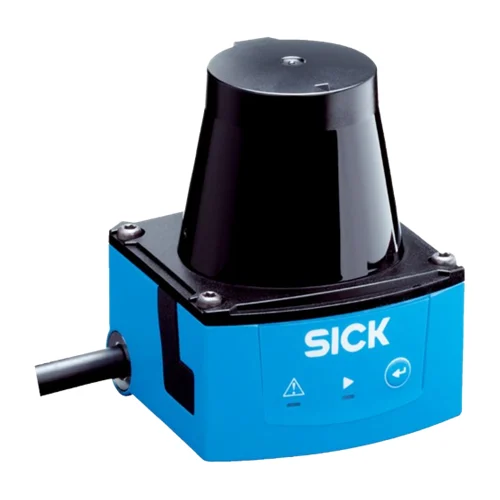

SICK TIM310-1030000 Indoor Field-Evaluation LiDAR

BrandSICK
Model IdentifierTIM310-1030000
Official Part Number1052627

Technical Overview

The SICK TIM310-1030000 is an indoor 2D LiDAR sensor using HDDM+ infrared scanning for field evaluation. Its 850 nm Class 1 laser covers 270° horizontally at 15 Hz with 1° angular resolution. Working range is 0.05–4 m, with a 2 m scanning range at 10% remission. Sixteen field triples store 48 fields, while one triple of three fields is evaluated at a time. Three PNP field outputs and an additional Device Ready output connect to external process logic. Micro USB supports service and parameterization, and one field triple can be configured locally. The 9–28 V DC IP65 device uses a 0.9 m lead with a fifteen-pin D-sub HD male connector; it has no machine-safety component function.

Indoor 270° field-evaluation LiDAR with 15 Hz scanning, 0.05–4 m working range, three PNP field outputs and 0.9 m lead with a fifteen-pin D-sub HD male connector.

Key Features

  • HDDM+ indoor 2D LiDAR field evaluation
  • 850 nm infrared Class 1 laser; 270° horizontal aperture
  • 15 Hz scanning; 1° horizontal angular resolution
  • 0.05–4 m working range; 2 m scanning range at 10% remission
  • 16 field triples, 48 stored fields; three fields evaluated simultaneously
  • Three PNP field outputs plus one Device Ready output; four digital inputs
  • Micro USB service and parameterization; local configuration of one field triple
  • Configurable output delay 67–30,000 ms and dwell time 67–600,052 ms
  • 0.9 m lead with a fifteen-pin D-sub HD male connector; 9–28 V DC supply
  • IP65; protection class III; −10 to +50 °C operation

Evaluate three configured process fields across a 270° indoor scan and send their switching conditions to external machine logic.

Technical Specification Matrix

ParameterValue
Functional principleIndoor 2D LiDAR; HDDM+
Integrated functionField evaluation for process monitoring; not a machine-safety component
Light source850 nm infrared laser
Laser class1; IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
Horizontal aperture270°
Scanning frequency15 Hz
Horizontal angular resolution1°
Working range0.05–4 m
Scanning range at 10% remission2 m
Remission range4–1,000%, including reflectors
Response timeOne scan: typically 67 ms; two scans: ≤134 ms at +45° to +225°, maximum 150 ms at −45° to +45°
Typical systematic error±40 mm at 90% remission up to maximum scanning range; actual value depends on ambient conditions
Typical statistical error<30 mm at 90% remission up to maximum scanning range; actual value depends on ambient conditions
Field sets16 field triples / 48 fields; one triple of three fields can be configured directly at the scanner
Simultaneous field evaluationOne evaluation case containing three fields
Digital outputsThree PNP field outputs plus one Device Ready output
Digital inputs4
Output current≤100 mA
Configurable delay time67–30,000 ms
Configurable dwell time67–600,052 ms
Service interfaceMicro USB, type B female; service and parameterization
Local controlsFunction button for teach-in; red and green LEDs for ON and switching status
Connection0.9 m lead with a fifteen-pin D-sub HD male connector
Power supply9–28 V DC
Power consumptionTypically 4 W; 16 W with four maximally loaded digital outputs
IP ratingIP65; IEC 60529
Protection classIII; IEC 61140
Housing colorLight blue, RAL 5012
MountingM3 threaded mounting holes, 2.8 mm deep; maximum tightening torque 0.8 Nm
Items suppliedTwo straight mounting plates with M3 × 4 mm screws
Operating temperature−10 to +50 °C
Switch-on temperature−10 to +50 °C
Storage temperature−30 to +70 °C
Relative humidityOperation <80%; storage ≤90%; non-condensing; EN 60068-2-30:2005
Ambient light immunity80,000 lx
EMC emissionsResidential environment; EN 61000-6-3:2007+AMD:A1:2011
EMC immunityIndustrial environment; EN 61000-6-2:2005
Vibration resistanceSine resonance scan 10–1,000 Hz; sine test 10–500 Hz, 5 g, 10 cycles (IEC 60068-2-6:2007); noise test 10–250 Hz, 4.24 g RMS, 5 h (IEC 60068-2-64:2008)
Shock resistance50 g / 11 ms / ±3 single shocks per axis; 25 g / 6 ms / ±1,000 continuous shocks per axis; 50 g / 3 ms / ±5,000 continuous shocks per axis; IEC 60068-2-27:2008
Temperature-change test−10 to +50 °C, 10 cycles; EN 60068-2-14:2009
Damp-heat test+25 to +55 °C, 95% RH, 6 cycles; EN 60068-2-30:2005
MTBF>100 years
MTTFD100 years; sensor does not constitute a machine-safety component
Power and I/O pinsD-sub HD: 1=9–28 V DC; 4=OUT4; 5=GND; 8=In1; 9=In2; 10=In3; 11=In4; 12=OUT1; 13=OUT2; 14=OUT3; 15=INGND for this PNP variant; 2, 3, 6 and 7=not connected

Industrial Applications

1. Reporting occupancy of an indoor container staging area

A material-handling station can define a field across the scan-plane section of a container staging position. An entering opaque container changes the corresponding PNP field output for external process sequencing. Commissioning checks actual target remission, the 0.05–4 m working range and scan-plane coverage, using the documented 2 m range at 10% remission as the dark-target reference.

Problem Solved

A configured scan-plane field provides external process logic with an area-occupancy condition, helping coordinate container staging where the material can occupy different positions within that field.

Staging occupancy 270° scan PNP field output

2. Checking transfer order across three process zones

A transfer station can configure three fields along the intended path of an opaque load and evaluate them within one active field triple. External sequencing logic observes the three PNP conditions to compare field occupation with the expected transfer order. Setup accounts for object size, scan-plane intersection, field layout and the documented angular response-time conditions before establishing the process timing.

Problem Solved

Three separately reported field conditions give external sequencing logic spatial references for reviewing a load transfer, helping identify an unexpected occupation order along the configured process path.

Transfer sequence Three fields External process logic

3. Reconfiguring monitored fields for a new container format

An indoor handling station that changes container size can use the Micro USB service interface to parameterize the monitored field geometry for its new layout. Sixteen field triples provide the documented field-set capacity, with one triple evaluated at a time. Local teach-in can configure one triple directly at the scanner, and commissioning verifies the resulting field outputs against the actual container presentation.

Problem Solved

Field parameterization lets a handling station adapt its monitored process regions to a changed container layout, using the existing scanner’s field capacity and local commissioning controls.

Format changeover Field parameterization Micro USB
