SICK 1069933 TIM320-0131000S02 NPN Indoor 2D LiDAR Field Sensor

USD 902.46

Indoor 270° LiDAR field evaluation, 0.05–4 m range, 15 Hz scans, 1° angular resolution, 16 field triples, NPN outputs and 2 m open-wire cable.

SKU SICK-1069933 Category
SICK TiM

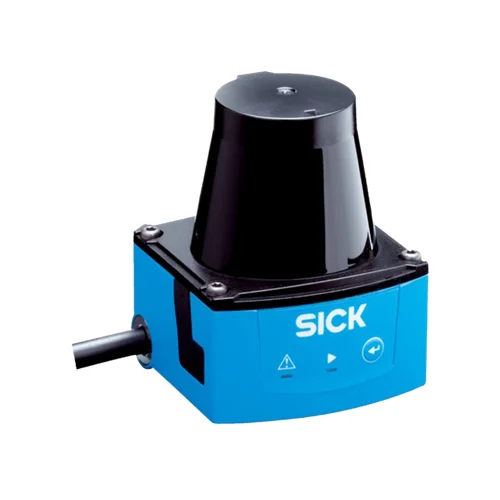

SICK TIM320-0131000S02 NPN Indoor 2D LiDAR Field Sensor

BrandSICK
Model IdentifierTIM320-0131000S02
Official Part Number1069933

Technical Overview

The SICK TIM320-0131000S02 is an indoor 2D LiDAR sensor using HDDM+ with an 850 nm Class 1 infrared laser. It scans 270° at 15 Hz with 1° angular resolution over a 0.05–4 m working range, reaching 2 m at 10% remission. Sixteen field triples provide 48 fields, with one three-field evaluation case active at a time. Four digital inputs select the field set, while three NPN field outputs and an additional Device Ready output connect to external process logic. Micro-USB provides service and parameterization, and a local button teaches a field triple. The 9–28 V DC sensor uses a 2 m open-wire cable, light-blue housing and IP65 protection.

Indoor 270° 2D LiDAR field sensor with 15 Hz scans, sixteen field triples, three NPN field outputs plus Device Ready and a 2 m open-wire cable.

Key Features

  • Indoor HDDM+ field evaluation with 850 nm Class 1 infrared laser
  • 270° horizontal aperture; 15 Hz scanning; 1° angular resolution
  • 0.05–4 m working range; 2 m at 10% remission
  • Sixteen field triples, 48 fields; one three-field evaluation case at a time
  • Four digital inputs select a field set using binary combinations
  • Three NPN field outputs plus Device Ready; ≤100 mA output current
  • Configurable delay 67–30,000 ms and dwell 67–600,052 ms
  • Micro-USB service/parameterization; local teach-in button and two LEDs
  • 9–28 V DC; typical 4 W, 16 W with four maximally loaded outputs
  • 2 m open-wire cable; light-blue RAL 5012 housing; IP65; −10 to +50 °C operation

Evaluate three configured process fields at once and select among sixteen field sets through four inputs for changing detection tasks.

Technical Specification Matrix

ParameterValue
Product type2D LiDAR field-evaluation sensor
ApplicationIndoor
Measurement principleHDDM+
Light source850 nm infrared laser
Laser class1; IEC 60825-1:2014 and EN 60825-1:2014+A11:2021
Horizontal aperture angle270°
Scanning frequency15 Hz
Horizontal angular resolution1°
Working range0.05–4 m
Range at 10% remission2 m
Response timeOne scan: typical 67 ms; two scans: ≤134 ms at +45° to +225°; maximum 150 ms at −45° to +45°
Detectable object shapeAlmost any
Systematic error±40 mm, typical at 90% remission up to maximum scanning range; actual value depends on ambient conditions
Statistical error<30 mm, typical at 90% remission up to maximum scanning range; actual value depends on ambient conditions
Integrated applicationField evaluation
Field setsSixteen field triples, 48 fields; one triple of three flexible fields configurable directly at scanner
Simultaneous evaluationOne evaluation case, three fields
Digital inputsFour, binary selection of one of sixteen field sets
Digital outputsThree NPN field outputs plus one Device Ready output; ≤100 mA output current
Delay time67–30,000 ms, configurable
Dwell time67–600,052 ms, configurable
Service interfaceMicro-USB for service and parameterization
Optical indicatorsTwo LEDs for ON and switching status
Local controlTeach-in function button
Power supply9–28 V DC
Power consumptionTypical 4 W; 16 W with four maximally loaded digital outputs
Connection2 m open-wire cable; some units delivered with a removable-by-cutting 15-pin D-Sub HD male connector, as described in manufacturer instructions
Cable constructionFifteen conductors with shield, for TiM3xx-01xxxxx configuration
Supply and unused conductorsRed=Vs; black=GND; violet, yellow, light blue and dark blue=not connected
Field-input conductorsIN1=turquoise or light gray; IN2=green; IN3=gray; IN4=pink; white/black=NPN input common reference Vs
Output conductorsOUT1=brown; OUT2=orange; OUT3=white; OUT4=red/black index/error output; metal screen=shield
Housing colorLight blue, RAL 5012
IP ratingIP65; IEC 60529:1989+AMD1:1999+AMD2:2013
Protection classIII; IEC 61140:2016-1
MTBF>100 years
MTTFD100 years
Remission range4–1,000%, including reflectors
Ambient-light immunity80,000 lx
EMC emissionsResidential-area standard EN 61000-6-3:2007+AMD:A1:2011
EMC immunityIndustrial-environment standard EN 61000-6-2:2005
Vibration resistanceIEC 60068-2-6:2007: sine resonance scan 10–1,000 Hz; sine test 10–500 Hz, 5 g, ten frequency cycles; IEC 60068-2-64:2008: noise 10–250 Hz, 4.24 g RMS, 5 h
Shock resistanceIEC 60068-2-27:2008: 50 g/11 ms, ±3 single shocks per axis; 25 g/6 ms, ±1,000 continuous shocks per axis; 50 g/3 ms, ±5,000 continuous shocks per axis
Operating temperature−10 to +50 °C, IEC 60068-2-14:2009
Switch-on temperature−10 to +50 °C
Storage temperature−30 to +70 °C, IEC 60068-2-14:2009
Temperature-change test−10 to +50 °C, ten cycles, EN 60068-2-14:2009
Damp-heat test+25 to +55 °C, 95% RH, six cycles, EN 60068-2-30:2005
Operating humidity<80% RH, non-condensing, EN 60068-2-30:2005
Storage humidity≤90% RH, non-condensing, EN 60068-2-30:2005
Items supplied in drawingTwo straight mounting plates with M3 ×4 mm screws
Mounting interfaceM3 blind threaded holes, 2.8 mm deep; maximum tightening torque 0.8 Nm
Intended control roleProcess field sensing; manufacturer identifies this sensor as not a machine-safety component

Industrial Applications

1. Reporting pallet occupancy at a transfer dock

An indoor pallet transfer dock can place the scan plane across a defined material zone and configure the three fields around relevant dock areas. The NPN outputs report the field conditions to external transfer sequencing, which uses them as process-occupancy inputs. Setup accounts for pallet geometry, target remission, occlusion, 1° angular resolution and the documented response across the installed scan angles.

Problem Solved

Three evaluated field conditions give external transfer logic spatial occupancy information, helping distinguish an available dock area from material extending into a configured process zone.

Dock occupancy Three fields NPN outputs

2. Detecting a material-level threshold across a bin opening

A bin-handling station can position the scan plane across the region where accumulated material should trigger a feed change. A configured field follows the intended threshold area, and an NPN output provides the resulting condition to external filling control. Commissioning uses representative material remission and geometry, with margin for systematic/statistical error, scan timing, dust and partial obscuration in the actual installation.

Problem Solved

A configured field supplies external filling logic with a spatial material-threshold condition, helping coordinate replenishment or feed holds across the selected bin region.

Bin threshold Field evaluation External filling control

3. Selecting detection geometry when the transfer recipe changes

A transfer station handling different carrier formats can store suitable field triples and select the required set through the four digital inputs when the machine recipe changes. The sensor evaluates one selected triple and reports its three field conditions through NPN outputs. Commissioning establishes the input combination for each recipe and checks representative carriers and surrounding fixed structures against the configured geometry.

Problem Solved

Input-selected field sets let external recipe control change the evaluated process geometry, helping align occupancy detection with the carrier format being transferred through the station.

Recipe field selection Sixteen sets Four inputs
